Name: m-e modern-electronics VDV-907 W Video door intercom Wi-Fi, Radio Indoor panel White
Brand: m-e modern-electronics
SKU: 2383245
Availability: SoldOut

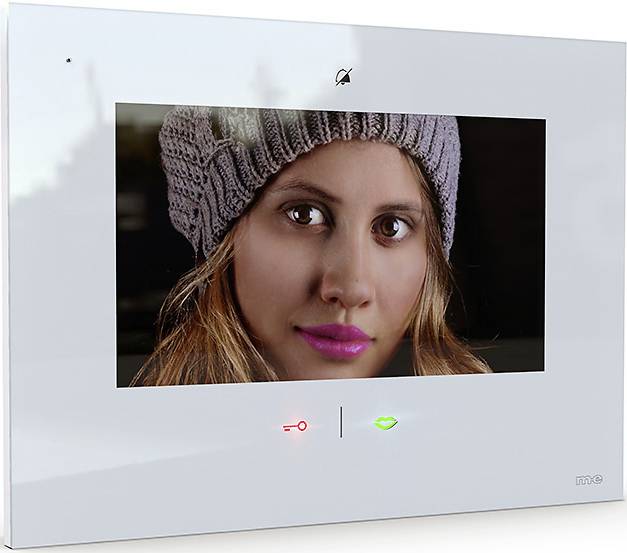

A woman wearing a grey hat looks into the distance. The screen beneath shows red and green symbols.

A white touchscreen monitor with a black screen. At the top, a speaker icon, at the bottom a key icon and a mouth icon.

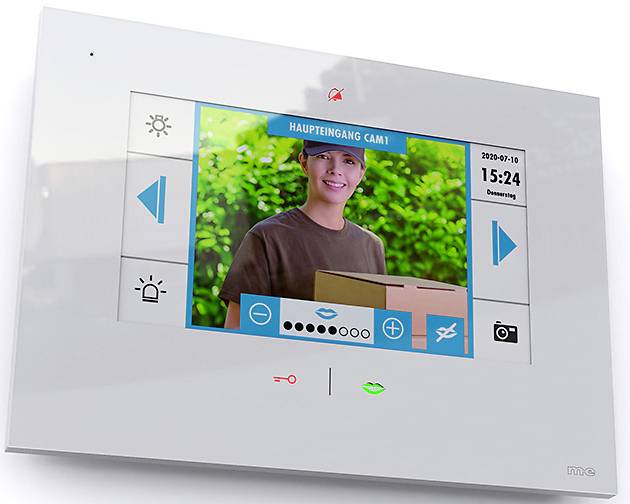

A video door entry screen shows a person with a package. At the top, it reads 'Main Entrance CAM1', with the date and time on the right.

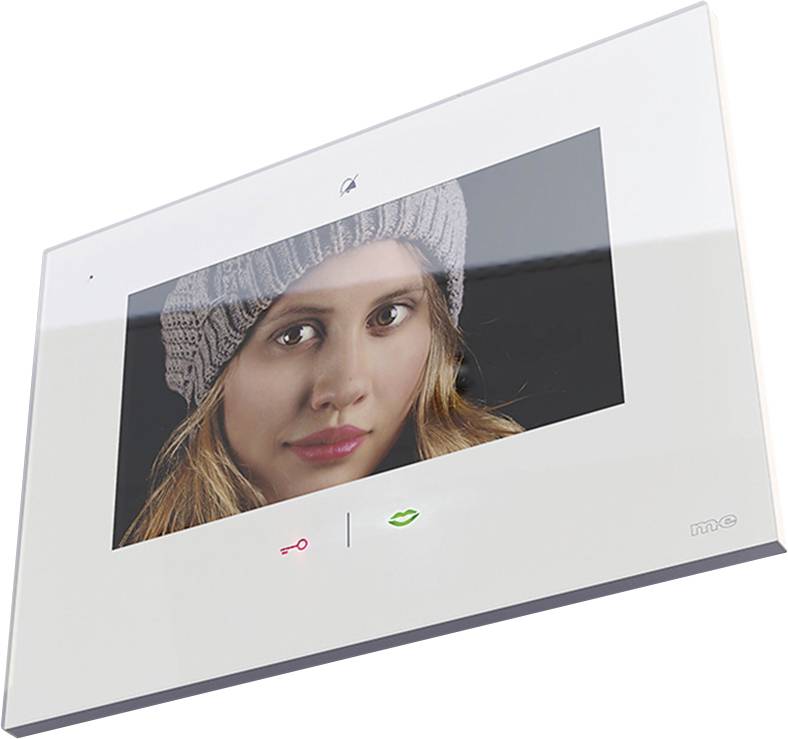

A video phone with a display showing a close-up image of a person. The device has symbols for lock and speaker.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 335.00 / piece)

€ 335.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

m-e modern-electronics VDV-907 W Video door intercom Wi-Fi, Radio Indoor panel White

17.7 cm (7") capacitive touch monitor
Real glass front panel
With touch function for all control elements
This text is machine translated.

Technical specifications

Product type: Video door intercom

Component: Indoor panel

Features: incl. image memory

Transfer type: Wi-Fi
Radio

Frequency: 2.4 GHz
434 MHz

Mounting type (interior): Surface-mount

Upgradable with: Internal extension

Factory colour: White

Resolution: 1064 x 600 p

Power supply (LOV): mains-powered

Display type: Touch colour display

Screen size diagonal (cm): 17.7 cm

Screen size diagonal (inches): 7 inch

Tunes: 16

Width: 220 mm

Height: 160 mm

Depth: 28 mm

Documents & Downloads

Datasheet

Datasheet 2383245 m-e modern-electronics VDV-907 W Video door intercom Wi-Fi, Radio Indoor panel White

User & Safety Instructions

User & Safety Instructions 2383245 m-e modern-electronics VDV-907 W Video door intercom Wi-Fi, Radio Indoor panel White

Features

Integrated radio module for the integration of wireless door bells from m-e.
With digital image storage for up to 100 photos with date and time
Connect your smartphone to see, talk to, and even open the door from anywhere
Optical display for SPEECH and DOOR-OPENING sensor buttons
16 ring tones: Improved sound - higher volume (adjustable)
Alternatively individual ringtones in mp3 format via microSD card possible
IDLE button switches off the ring tone - bell symbol flashes red as a reminder
MONITOR button (silent monitoring): Switches camera ON or OFF at the outdoor station
Intercom function: Speak from indoor unit to indoor unit within a residential unit
Connection for floor bell button with separate ring tone for distinguishing the house and apartment door.

Scope of delivery

1 x indoor video station 17.7 cm (7") white.

Hints

Compatible with all components from the Vistadoor and Vistus door intercom systems from m-e.

MicroSD card not included.

Related products can be found here

Weather stations Wireless doorbells, wireless door chimes DIN Rail PSUs Unassembled Network Cables Earphones Power Strips Outdoor Wear & Accessories Low-Energy Light Bulbs Motion Detectors Electromagnetic Door Locks SD Cards Button Cells LED Light Bulbs Multimeters Bell Transformers Halogen Lamps

System requirements

You need at least one outdoor unit from the Vistadoor Vistus series of m-e. You also need a system power supply with min. 15 V DC / 1A (E.G. DT-2000 or ST-1000) and a min. 4-core cable (max. cable length 100 m).
Mobile devices for the app: Apple iPhone/iPad from iOS 9, Smartphone/Tablet from Android 4.3, Internet min. 1Mbit up/down, control via VISTASMART2 app for iOS, Android.
