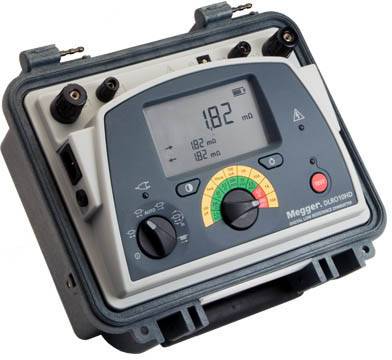

Megger DLRO10HD-NLS Ohmmeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,894.96 / piece)
€ 3,894.96
plus VAT.
14-day return policy included
Technical specifications
- Charging time 8 hours
- Product type
Ohmmeter
- Reading type
Resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
100 mΩ
- Interfaces
USB
IP54
IP65
- Dim
(L x W x H) 315 x 28.5 x 18.1 mm
- Weight
6.7
- Display type
Digital (LCD)
- Reading category
CAT III 300 V
- Width
28.5 mm
- Height
18.1 mm
- Length
315 mm
Documents & Downloads
Datasheet
Datasheet 2305654 Megger DLRO10HD-NLS Ohmmeter
User & Safety Instructions
User & Safety Instructions 2305654 Megger DLRO10HD-NLS Ohmmeter
Description
The Megger DLRO10HD, which extends the DLRO10 and 10X series, combines extremely easy handling with a rugged IP 65 housing designed for stable off-road and laboratory operation.
The device is powered either by its rechargeable battery or mains voltage, making it suitable for continuous testing in conveyor-reaming application environments. The operation by means of rotary switch control is easy and in all weather conditions and even with gloves light. A large, clear LCD display with backlight can be easily read from a distance.
This text is machine translated.
The device is powered either by its rechargeable battery or mains voltage, making it suitable for continuous testing in conveyor-reaming application environments. The operation by means of rotary switch control is easy and in all weather conditions and even with gloves light. A large, clear LCD display with backlight can be easily read from a distance.
This text is machine translated.
Features
- Removable cover.
- Mode rotary switch
- Replaceable test lead connections
- Select high or low output power for condition diagnosis
- Rechargeable battery or mains voltage supply, continuous operation, even with discharged battery
- 10A for 60 seconds, less time to cool, great in induction charging
- protected up to 600 V, without blowing a fuse, test lead voltage warning light
- Durable housing: IP 65 with closed lid, IP54 in operation
- Easy selection of five test modes via rotary switch, including automatic start on connection.
Scope of delivery
- DH4 Duplex Hand spikes. 1.2m
- Operating instructions (CD)
- Warranty card
- Bag for test cable (mounting on cover).
