Mentor 1843.9031 1843.9031 Rotary switch 60 V DC/AC 0.5 A Switch postions 10 1 pc(s)

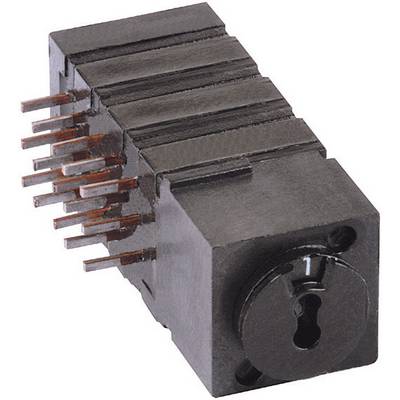

A rectangular black connector with multiple metal pins protruding from the left is used for electrical connection.
'8 to 1 Multiplexer' Diagram: Two circuits with connected terminals. Left: Inputs 0-7, Outputs A1-A5. Right: Inputs 0-15.
Technical drawing of an electrical plug with dimensions and pin configuration. Contains dimensional specifications and arrow notation 'Z'.
1/3
Product type
Rotary switch
Operation type
Screwdriver
Contact type
1 change-over
Switch postions
10
Switching voltage
60 V DC/AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 21.17 / piece)
€ 21.17
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

FEL Rotating multi-step switch THT

Our service for you

Technical specifications

Product type

Rotary switch

Casing/button colour

Black

Functions

latch

Operation type

Screwdriver

Lighting type

None

Contact type

1 change-over

Switch position

1 x On/On

Switch postions

10

Material

Plastic

Connection

Solder pins

Switching voltage

60 V DC/AC

Switching current (max.)

0.5 A

Content

1 pc(s)

Type

1843.9031

RoHS-compliant

Yes

Type

1-pole

Documents & Downloads

Datasheet

Datasheet 183678 Mentor 1843.9031 1843.9031 Rotary switch 60 V DC/AC 0.5 A Switch postions 10 1 pc(s)

User & Safety Instructions

User & Safety Instructions 183678 Mentor 1843.9031 1843.9031 Rotary switch 60 V DC/AC 0.5 A Switch postions 10 1 pc(s)

Description

Ideal for addressing or coding electrical functions. May be aligned adjacently.
