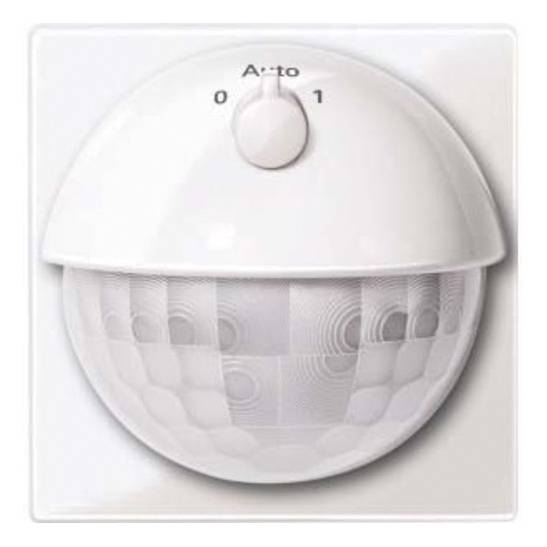

Merten Cover Motion detector System M, 1-M, M-Smart, M-Plan, M-Creativ Polar white glossy MEG5711-0319 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
Highlights & Details
Flush-mounted motion detector module ARGUS 180 MEG ID5063 0319
- Switching programme Merten
- System M
Technical specifications
- Range 8 m left/right, 12m to the front
- Type
Flush-mounted motion detector module ARGUS 180 MEG ID5063 0319
- Switch type function
Motion detector
- Product type
Motion detector
- Switch type component
Cover
- Type series
System M
1-M
M-Smart
M-Plan
M-Creativ
- Factory colour
Polar white glossy
- Content
1 pc(s)
- Detection angle
180°
12 m
- Material
PVC
- Weight
0.04
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 456073 Merten Cover Motion detector System M, 1-M, M-Smart, M-Plan, M-Creativ Polar white glossy MEG5711-0319 1 pc(s)
Description
Motion detector for the inner area with low-level detection. The sensor module detects moving heat sources (e.g. Persons) in an adjustable detection range and starts a staircase lighting time. The sensor module has a light sensor with adjustable brightness threshold, so that the lighting only below a certain brightness threshold is switched on. Switchable presence function.
Coverage: 180° · Control element: manual switch (0, car, 1) · Recommended installation height 1.1 m · Range: 8 m left/right, 12m to the front. Continuously adjustable sensitivity: · Light sensor: continuously adjustable from 10 to approx. 1000 Lux · Time: can be set continuously from about 10 s to approx. 30 min.
This text is machine translated.
Coverage: 180° · Control element: manual switch (0, car, 1) · Recommended installation height 1.1 m · Range: 8 m left/right, 12m to the front. Continuously adjustable sensitivity: · Light sensor: continuously adjustable from 10 to approx. 1000 Lux · Time: can be set continuously from about 10 s to approx. 30 min.
This text is machine translated.
