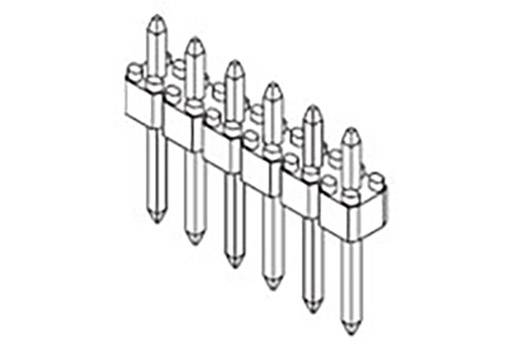

Image similar

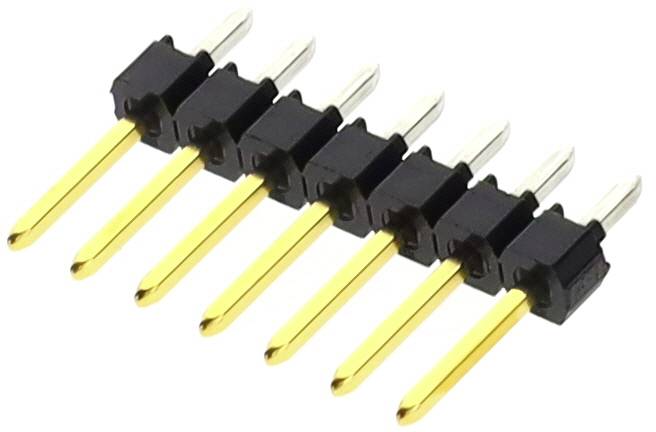

Molex Pin strip (standard) No. of rows: 1 901200767 1 pc(s) Tray
Packaging type
Tray
Product type
Pin strip (standard)
No. of rows
1
Total number of pins
7
CS
2.54 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 1.29 / piece)
€ 1.63
-21 %
€ 1.29
incl. VAT
14-day return policy included
Highlights & Details
C-GRID 111
- Content 1 pc(s)
- No. of rows 1
Technical specifications
- Breakaway: YesRecommended PCB thickness: 1.6 mmProcess temperature max. 260 °C.
- Packaging type
Tray
- Product type
Pin strip (standard)
- No. of rows
1
- Total number of pins
7
- CS
2.54 mm
- Connection
Soldering
- Factory colour
Black
- Nominal voltage
350 V DC/AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact material
Brass
- Case material
Polyester
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
901200767
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. temperature
+125 °C
- Min. temperature
-55 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
901200767
- Engineering Series Name
SR HDR VERT
- Engineering Series No
90120
- Leading contact (PE)
No
- Connector contact surface
Gold
- Board contact surface
Ni
- Mating cycles
200
- Connector coating thickness
0.381 µm
- Range of uses
Signal, cable to PCB
- Pin length
2.9 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2450561 Molex Pin strip (standard) No. of rows: 1 901200767 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2450561 Molex Pin strip (standard) No. of rows: 1 901200767 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2450561 Molex Pin strip (standard) No. of rows: 1 901200767 1 pc(s) Tray
Description
2.54mm Pitch C-Grid III Header, Single Row, Vertical, 7 Circuits, 0.38µm Gold (Au) Selective Plating
