Name: Müller Müller 23998 Multisensor LS 20.00 pro4
Brand: Müller
SKU: 2281505
Availability: SoldOut

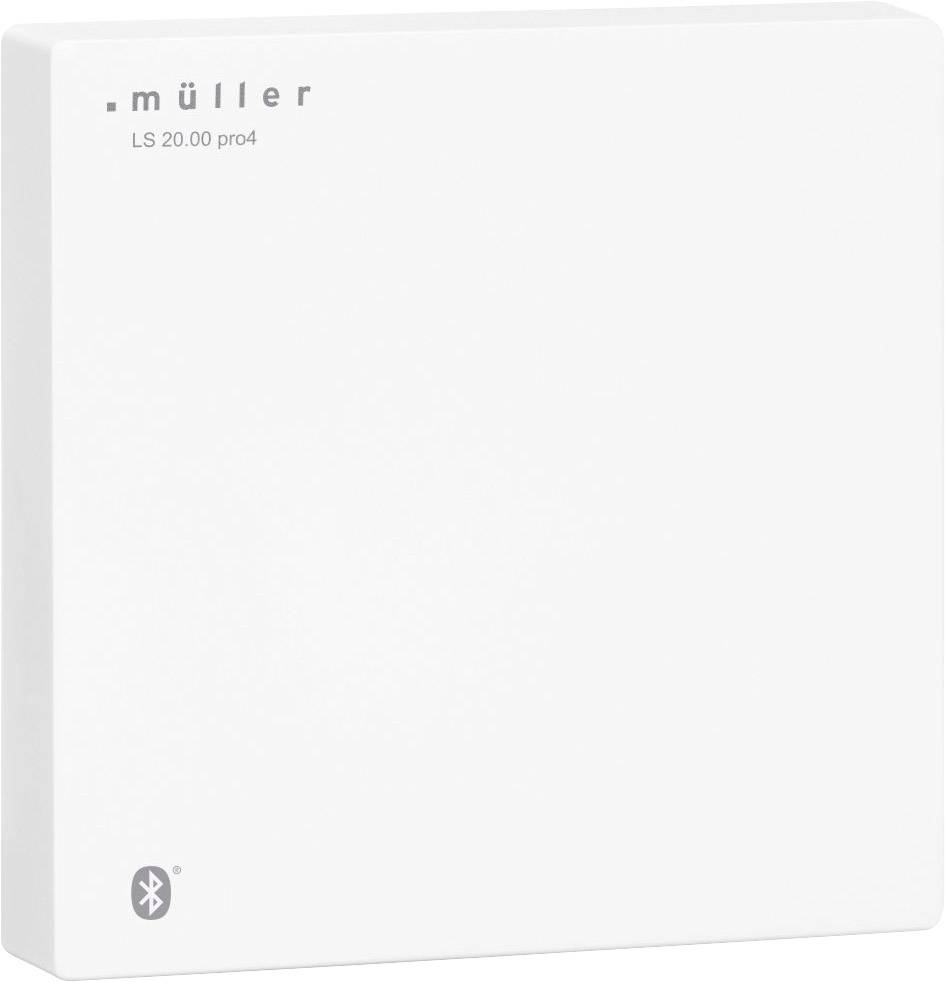

A rectangular, white device by 'müller' with the inscription 'LS 20.00 pro4' and a Bluetooth symbol in the bottom left corner.

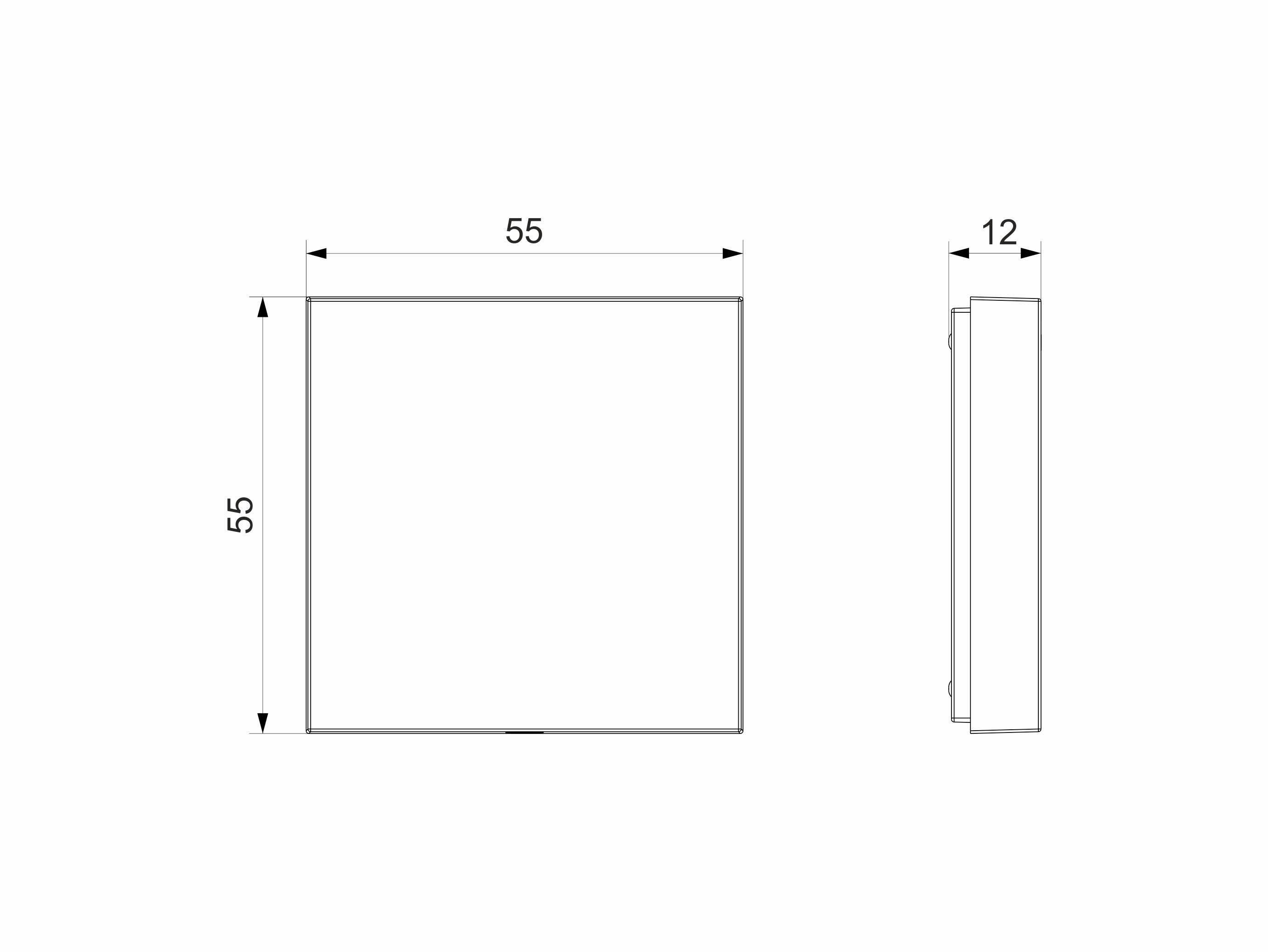

'Schematic drawing of a square object with dimensions: width and height 55 mm, depth 12 mm, side view on the right.'

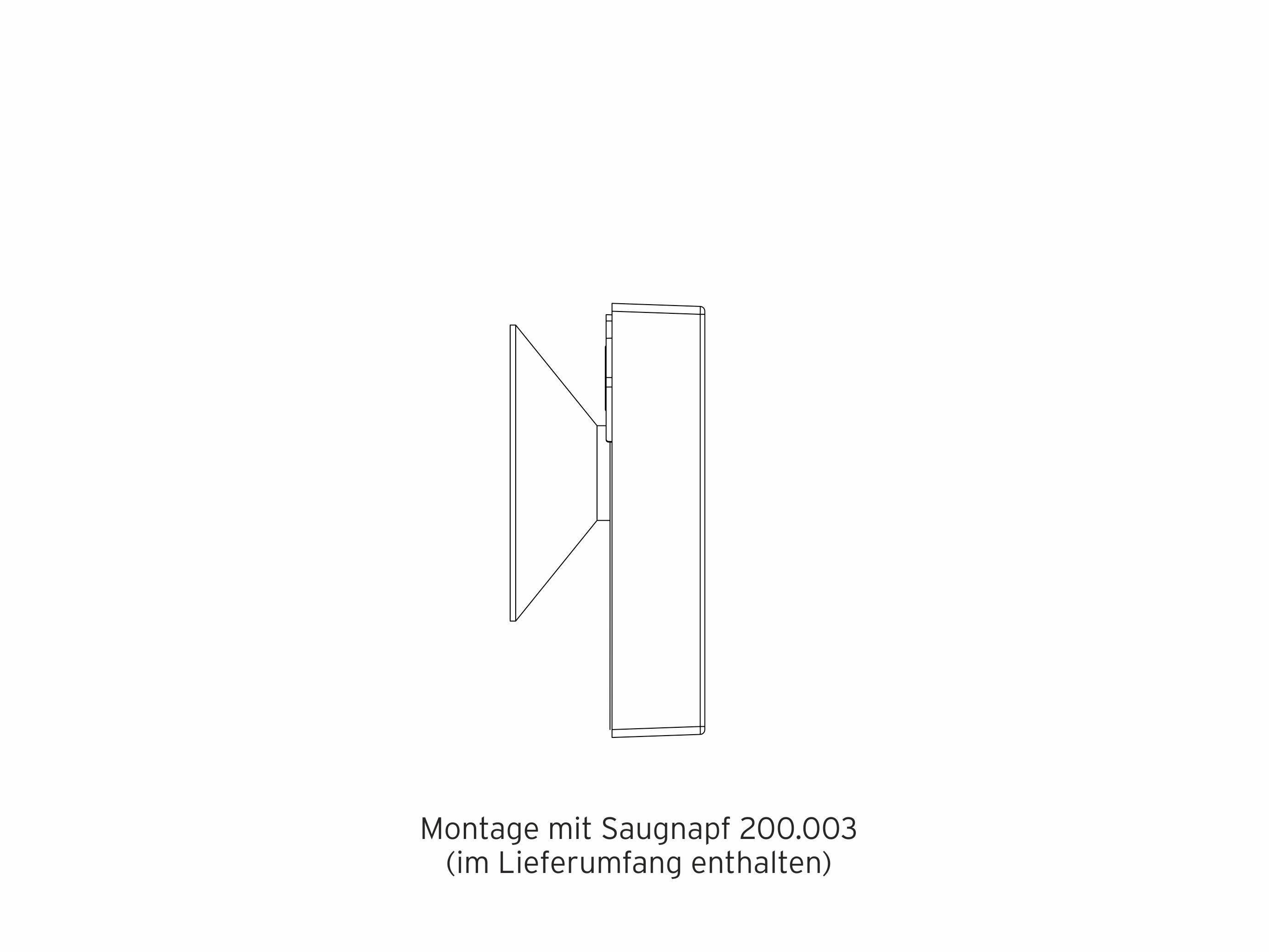

Side view of a rectangular object with a suction cup for mounting. Text: 'Mounting with suction cup 200.003 (included in delivery)'.

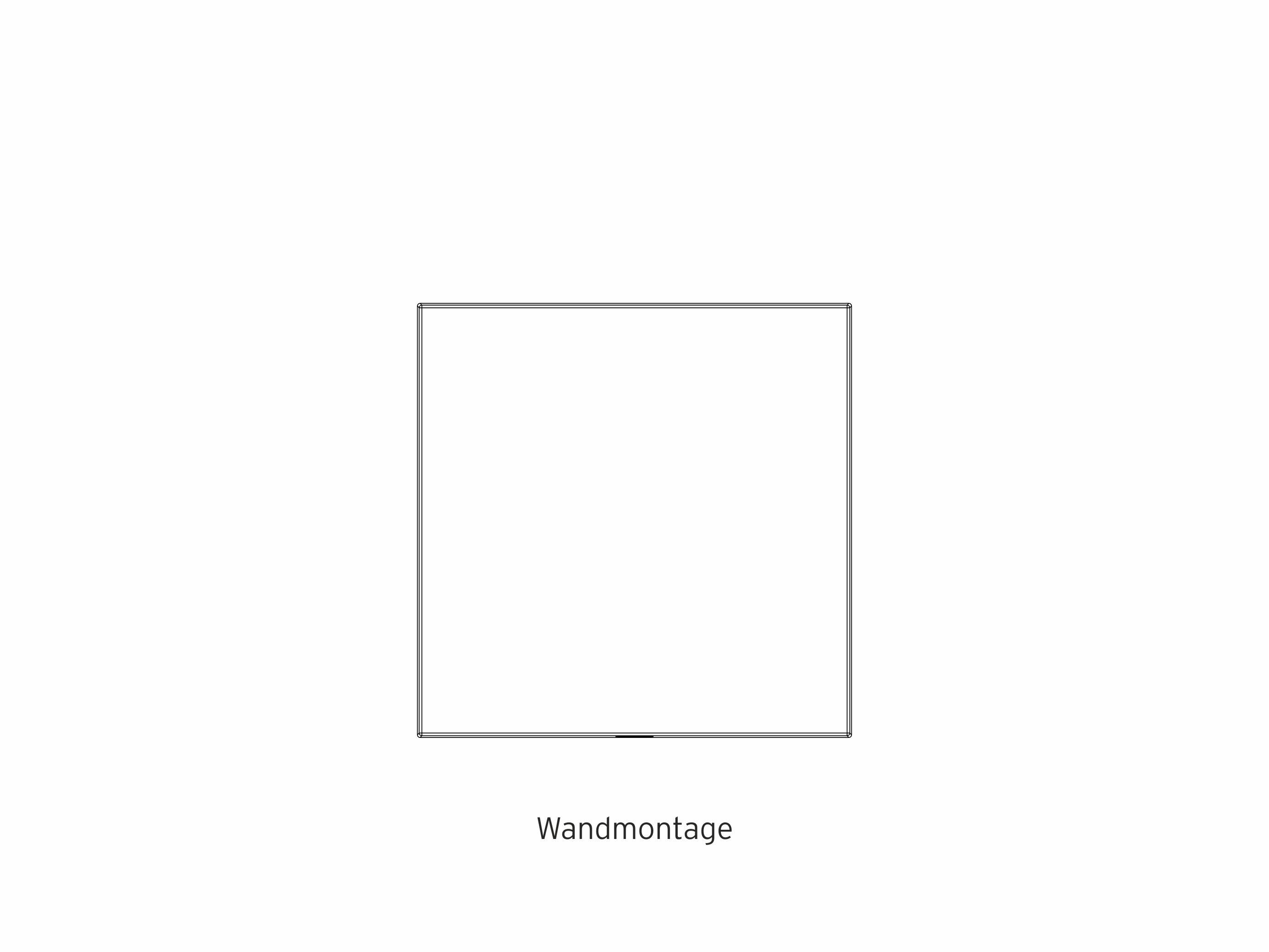

A blank grey square surface, with the text 'Wall Mounting' underneath.

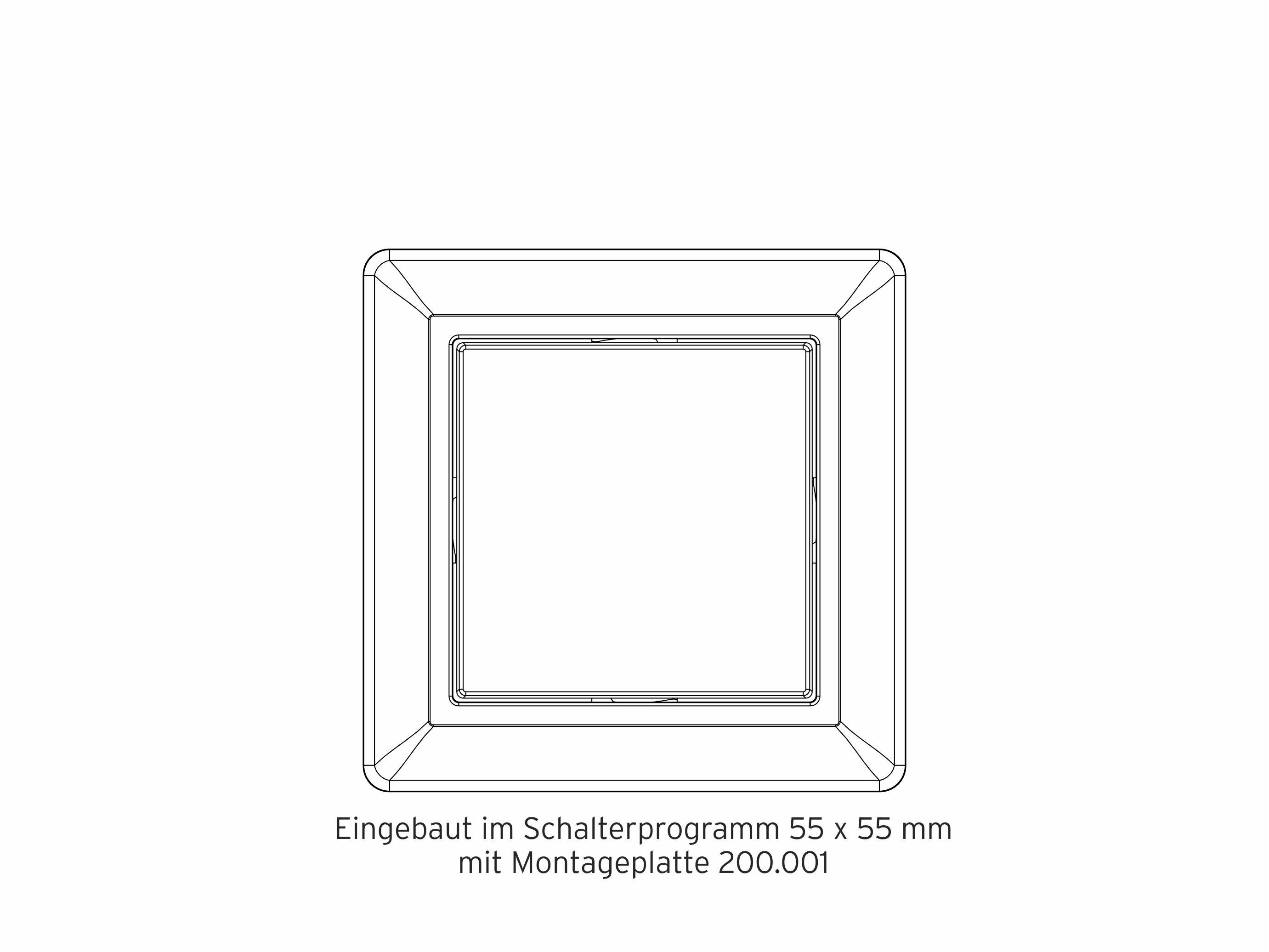

A square light switch frame, installed in a 55 x 55 mm switch programme with mounting plate 200.001.

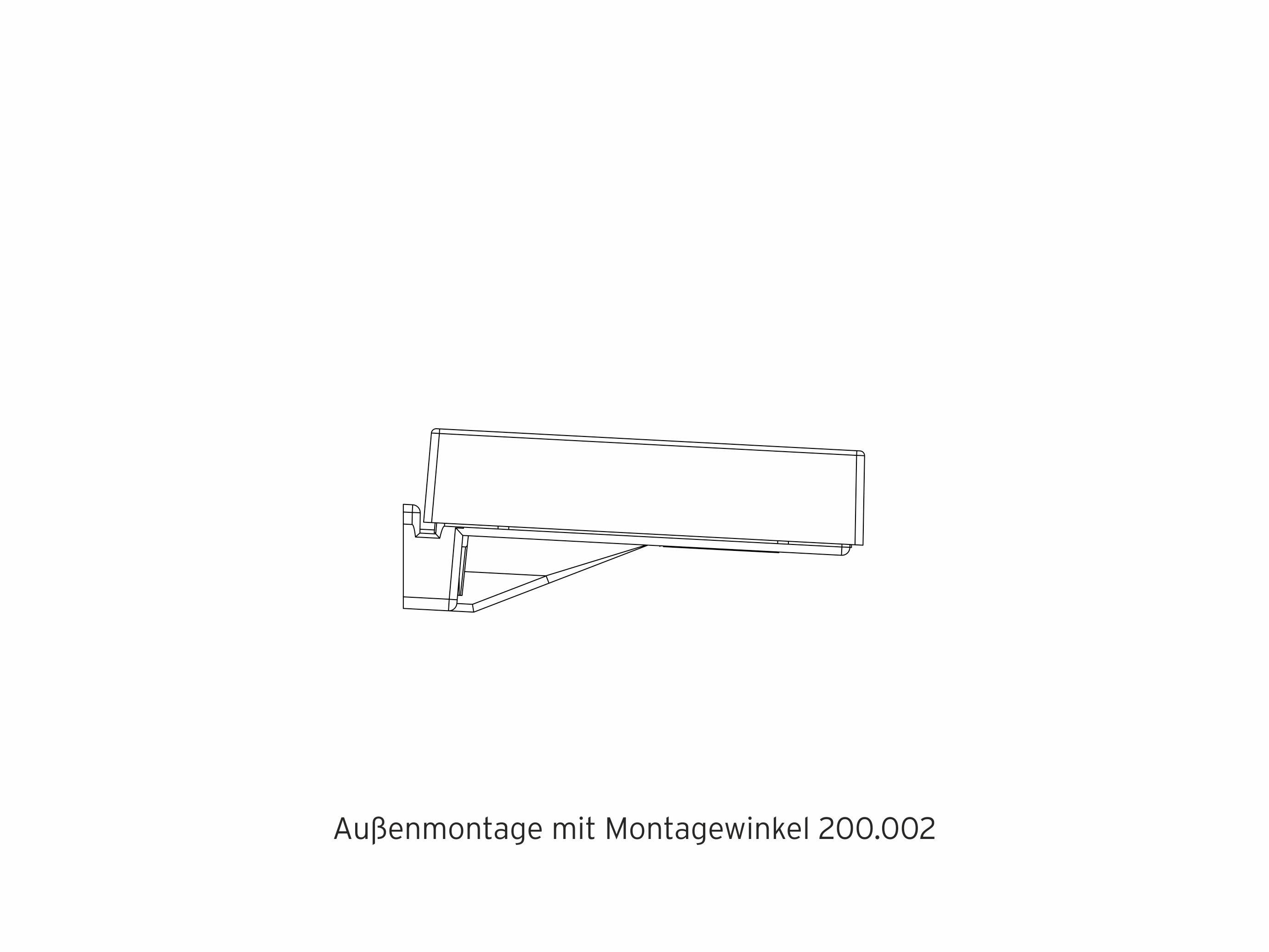

'External mounting with mounting bracket 200.002.' shows a schematic drawing of a box mounted laterally with a fixing bracket.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 73.99 / piece)

€ 73.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

mi. system multi-sensor

Light-/ brightness-, temperature- and rel. humidity measurement
Different mounting types
Small, compact design

Technical specifications

Measurement range light sensor: 0...65,000 Lux
Temperature measurement range 0...+45 °C.
Measurement range rel. air humidity: 0...100%

Product type: Multisensor

Series: Müller

Transfer Standard (Smart Home): Bluetooth

Used at: Outdoors

: IPX4

Power supply (LOV): battery-powered

Data transfer (Smart Home): Wireless

Frequency: 868 MHz

Mounting type: Wall
Structure

Width: 55 mm

Height: 55 mm

Depth: 12 mm

Dim: (W x H x D) 55 x 55 x 12 mm

Hub: Not required, optional for remote access

: n.rel.

Weight: 40 g

Features: Test function

Documents & Downloads

Datasheet

Datasheet 2281505 Müller Müller 23998 Multisensor LS 20.00 pro4

User & Safety Instructions

User & Safety Instructions 2281505 Müller Müller 23998 Multisensor LS 20.00 pro4

Description

Bluetooth light-/brightness- as well as temperature- and humidity sensor for the müller mi.system.
Can only be used in conjunction with an EA 46.22 pro4!

This text is machine translated.

Features

Recording of the light value, the temperature and the relative humidity
different mounting types:
- Mounting on the window by suction cup for use as light sensor (included in delivery)
- Wall mounting
- installed in the switch program 55 x 55 mm with mounting plate 200.001
- Outdoor mounting with mounting bracket 200.002
small, compact design.

Scope of delivery

Suction cup and battery included

System requirements

Suitable only with müller mi.system products!

Description

Bluetooth light-/brightness- as well as temperature- and humidity sensor for the müller mi.system.
Can only be used in conjunction with an EA 46.22 pro4!

This text is machine translated.

Features

Recording of the light value, the temperature and the relative humidity
different mounting types:
- Mounting on the window by suction cup for use as light sensor (included in delivery)
- Wall mounting
- installed in the switch program 55 x 55 mm with mounting plate 200.001
- Outdoor mounting with mounting bracket 200.002
small, compact design.
