Paladin KNX 23981 Multisensor Max. range (open field) 100 m 686 312 rfs
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Technical specifications
- Product type
Multisensor
- Series
KNX
- Transfer Standard (Smart Home)
Manufacturer-specific
- Used at
Indoors
IP20
- Power supply (LOV)
battery-powered
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
100 m
- Mounting type
Surface-mount
- Width
28 mm
- Height
78 mm
- Depth
23 mm
- Dim
(W x H x D) 28 x 78 x 23 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
35 g
Documents & Downloads
Datasheet
Datasheet 2281499 Paladin KNX 23981 Multisensor Max. range (open field) 100 m 686 312 rfs
User & Safety Instructions
User & Safety Instructions 2281499 Paladin KNX 23981 Multisensor Max. range (open field) 100 m 686 312 rfs
Description

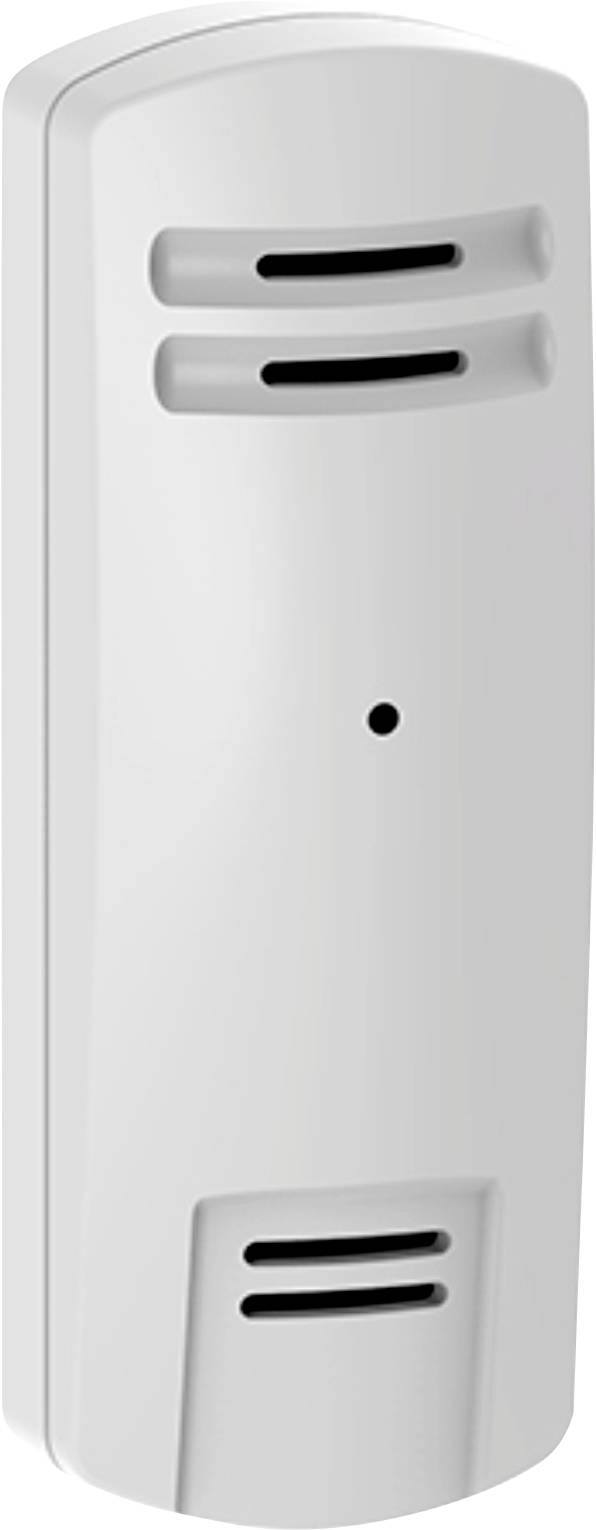

Wireless temperature, light and humidity sensor
This text is machine translated.
This text is machine translated.
Features
- Temperature sensorLight sensorHumidity sensorTransmission of the sensor values via radioAdjustable alarm conditionsBattery-operated (battery life approx. 8 years)KNX-RF 1.R S-MODETest mode for a faster status queryCompact dimensionsSurface mounting / adhesive mounting
Scope of delivery
- Batteries included
Hints
A KNX RF S-Mode line coupler is required for connection to the KNX bus.
