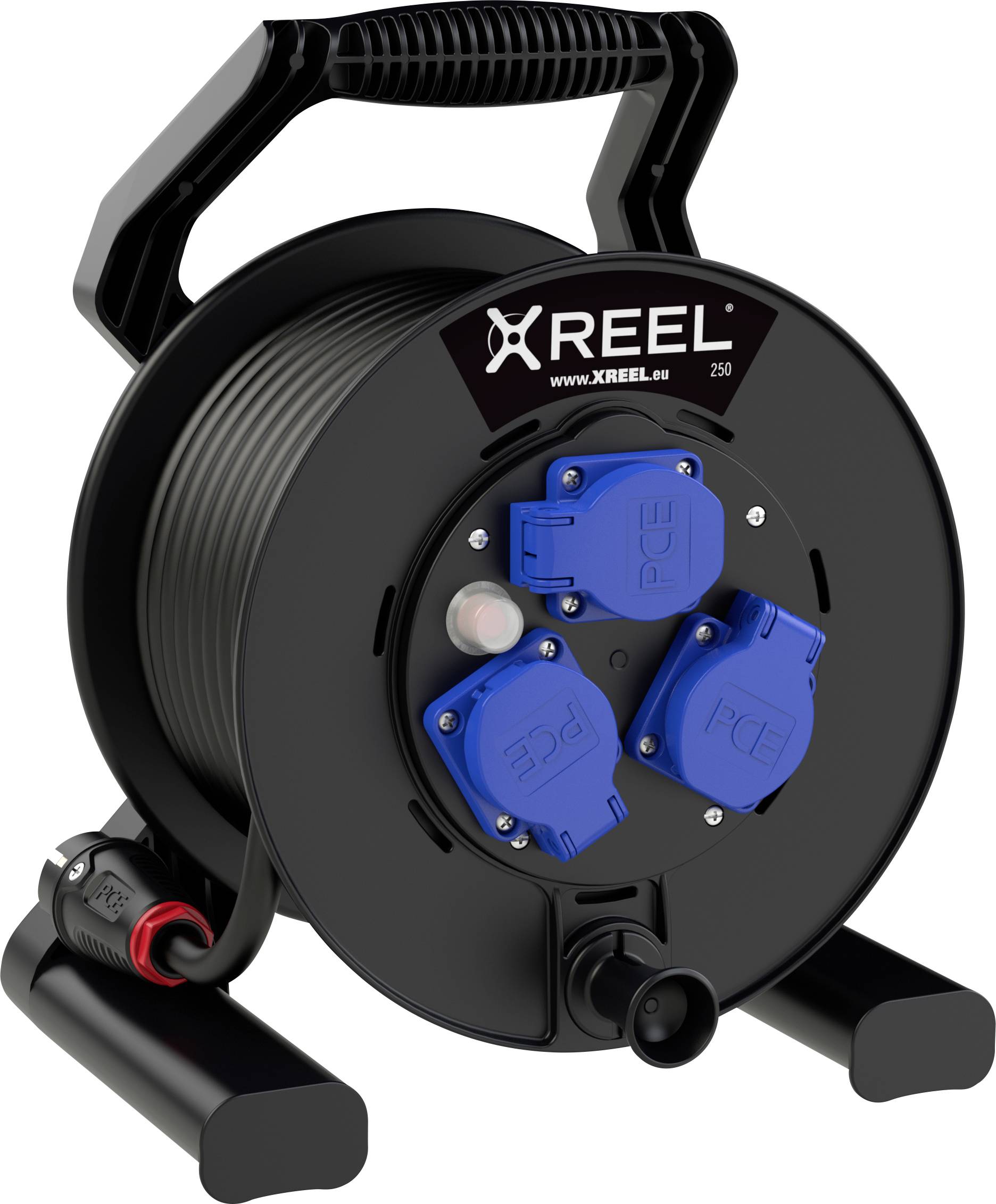

PC Electric 9250012-p Cable reel 25 m Black PG rubber plug
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 149.99 / piece)
€ 149.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Cable drum XREEL250 3xSSD54k 25m3G1.5H07 VGS2 K2
- Central panel with 3 earthing contact socket-outlets
- Thermal protection switch
- 25 m cable, black
Technical specifications
- Nominal voltage: 250V
- Nominal current: 16A
- Protection class: IP54
- Product type
Cable reel
- Cable length
25 m
- Type A
PG rubber plug
- Type B
PG connector
- Outlets
3
- Cable colour
Black
- Cable standard
H07RN-F 3G 1,5 mm²
- Used at
Outdoors
Indoors
- Factory colour
Black/blue
- Weight
5.5 kg
IP54
Documents & Downloads
Datasheet
Datasheet 3437862 PC Electric 9250012-p Cable reel 25 m Black PG rubber plug
User & Safety Instructions
User & Safety Instructions 3437862 PC Electric 9250012-p Cable reel 25 m Black PG rubber plug
Description

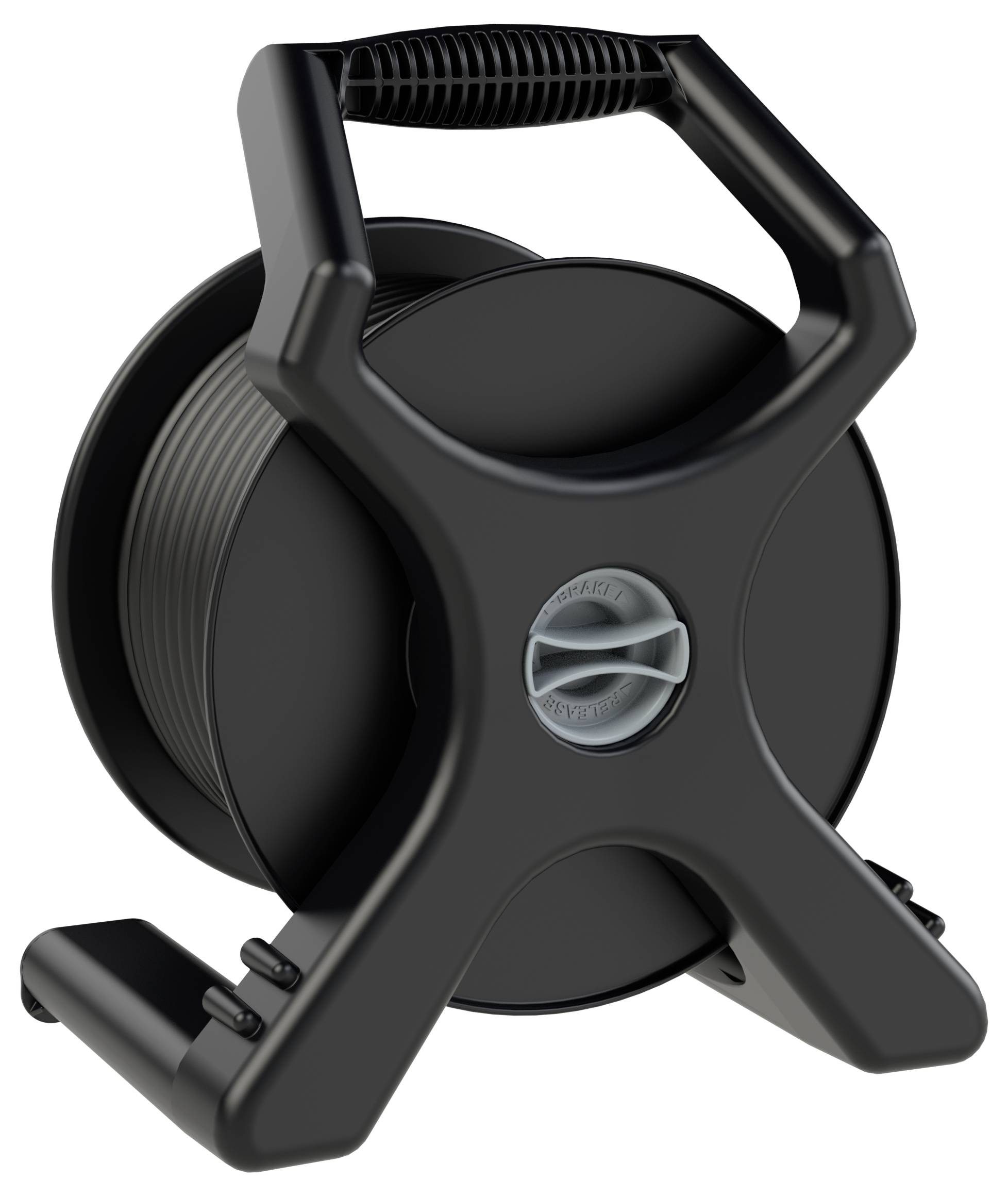

Plastic drum with centrally located, inner braking device Sturdy plastic frame with ergonomic handle and 2 attachment positions for the plug.
This text is machine translated.
This text is machine translated.
Features
- Sealed connection area
- System with hinged lid and sealing edge (105-0BSW)
- Thermal protection switch
- 25m cable black H07RN-F 3G1,5mm2
- Taurus safety plug full rubber 16A 2p+PE 250V IP44 (0522-s) two-fold earthing system
- XREEL250 ready-wired for operation
- Directive (RoHS) 2011/65/EU
- Low-voltage directive NSPRL 2014/35/EU
- Resistance to UV radiation according to ISO 4892-2
- Standards: IEC / EN 61242, corresponds to BGI608 K2
