Buy PCE Instruments PCE-T 260 Tachometer Optical 0.5 - 19999 U/min 5 - 99999 U/min

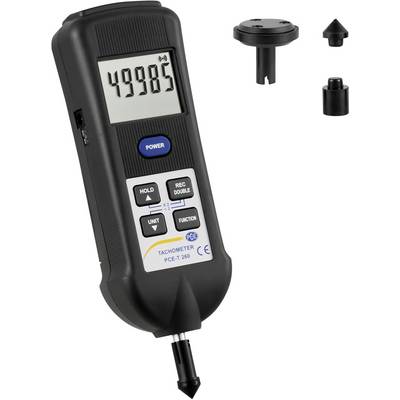

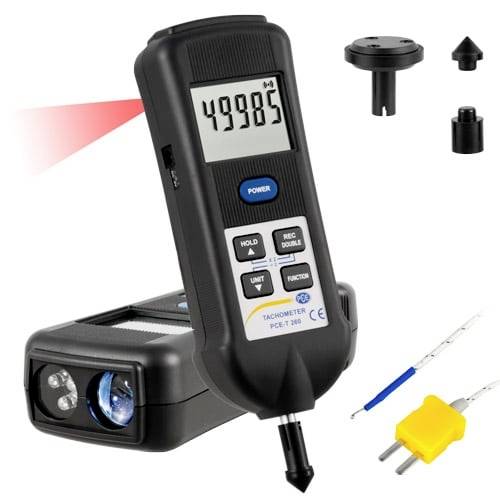

Handheld digital tachometer kit showing a black meter with LCD reading 49985, optical sensor base, interchangeable adapters, and probes.

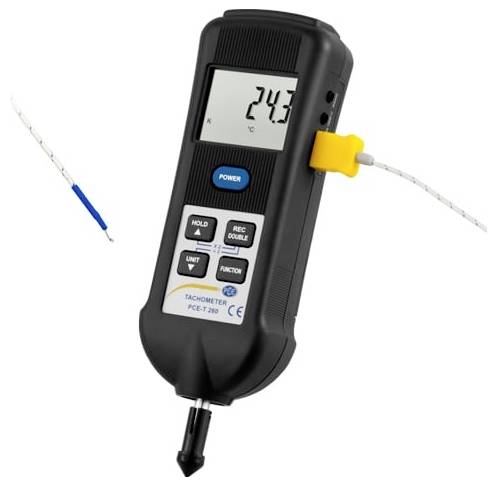

Handheld digital tachometer showing 24.3°C with a probe connected by cable.<br>

Black handheld electronic device shown from the back, with a central socket, ports, mounting holes, and a short protruding connector at the bottom.

Black handheld device with a protruding sensor tip, red indicator light, and warning label on a white background.<br>

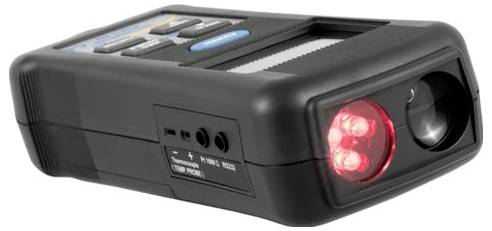

Black handheld electronic device with a red LED light and lens on the front, resembling a portable scanner or detector.

1/5

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 357.14 / piece)

€ 357.14

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Manual tachometer PCE-T 260

Easy to operate
Powerful LED´s
Non-contact temperature measurement
Temp. Measurement with sensor type K or PT 1000
Robust ABS plastic housing
5-digit 10 mm LCD display
Last measured value, min/max memory
Red stroboscope light

Technical specifications

RPM accuracy: 0.05

Speed resolution: 0.5 U/min

Reading distance: 150 - 300

Dim: (L x W x H) 207 x 67 x 39 mm

Weight: 322 g

Height: 39 mm

Length: 207 mm

Width: 67 mm

Rotational speed range (max.): 0.5 - 19999 U/min

Rotational speed (optical): 5 - 99999 U/min

: Manufacturer's standards (no certificate)

Display: LCD

Measuring type: Optical

Type: PCE-T 260

Rotational speed, mechanical (max.): 19999 U/min

Rotational speed, mechanical (min.): 0.5 U/min

Rotational speed, optical (max.): 99999 U/min

Rotational speed, optical (min.): 5 U/min

Product type: Tachometer

Documents & Downloads

Datasheet

Datasheet 2299566 PCE Instruments PCE-T 260 Tachometer Optical 0.5 - 19999 U/min 5 - 99999 U/min

User & Safety Instructions

User & Safety Instructions 2299566 PCE Instruments PCE-T 260 Tachometer Optical 0.5 - 19999 U/min 5 - 99999 U/min

Description

The combined tachometer stroboscope is a measuring device for use in maintenance, maintenance and production. In addition to the strobe function, the tachometer stroboscope also has the option of contacting speed reduction and measuring temperatures. This makes the tachometer strobe ideal for testing the rotational speeds and temperatures of centrifuges, motors, fans and many other machines and systems used in industry and research. The special feature lies in the combination of these measuring parameters in a housing. The tachometer stroboscope has a measurement range of 0.5 ...99.990 rpm, the IC circuit in combination with a bright red LED lamp means the device consumes less power and is almost maintenance-free. The setting for the tachometer stroboscope is done via push buttons (for coarse and fine adjustment). The tachometer stroboscope also enables contactless measurement of the rotational speed of 0.5...99.990 rpm with a resolution of up < to 0.5 (at n 1,000 rpm). The setting for contacting speed or speed measurement rotates the display by 180 ° so that you can read the values comfortably.

This text is machine translated.
