Pfannenberg Enclosure heating PFH-T 300 230V 230 V AC (L x W x H) 139 x 88 x 142 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure heating
Connection
Plug & Clip
Operating voltage
230 V AC
Type
PFH-T 300 230V
Mounting type
35mm section rail mount
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
14-day return policy included
Technical specifications
- Continuous heating at 20 °C: 300 W.
- With fan: Yes
- With room thermostat: Yes
- Product type
Enclosure heating
- Type
PFH-T 300 230V
- Connection
Plug & Clip
- Mounting type
35mm section rail mount
- Operating voltage
230 V AC
- Length
139 mm
- Width
88 mm
- Height
142 mm
- Dim
(L x W x H) 139 x 88 x 142 mm
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2181599 Pfannenberg Enclosure heating PFH-T 300 230V 230 V AC (L x W x H) 139 x 88 x 142 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2181599 Pfannenberg Enclosure heating PFH-T 300 230V 230 V AC (L x W x H) 139 x 88 x 142 mm 1 pc(s)
Description
Large performance/volume ratio ⇒ slim, compact design
Large heating power range in one housing (200–1200 W)
Fast heating through PTC technology

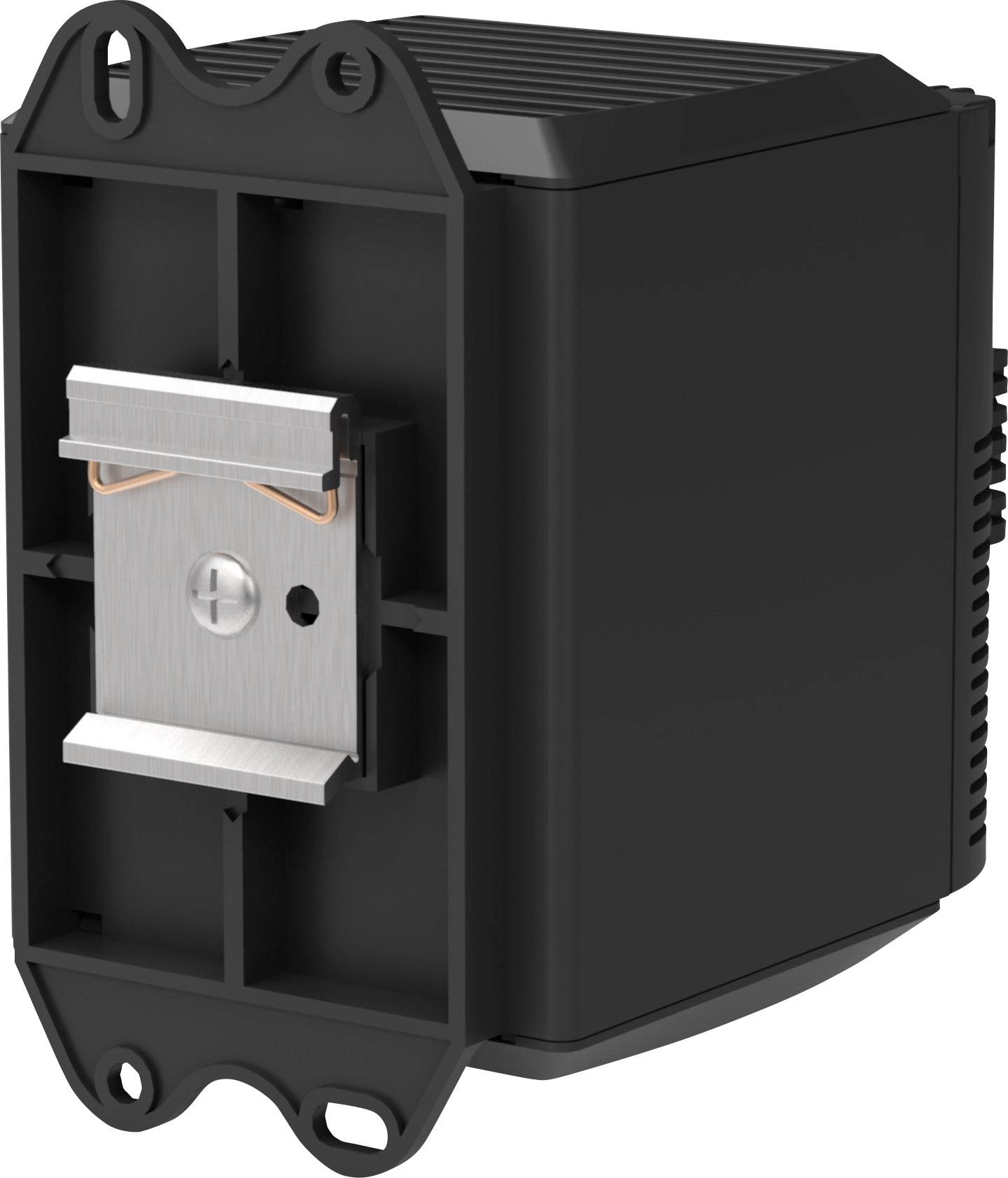

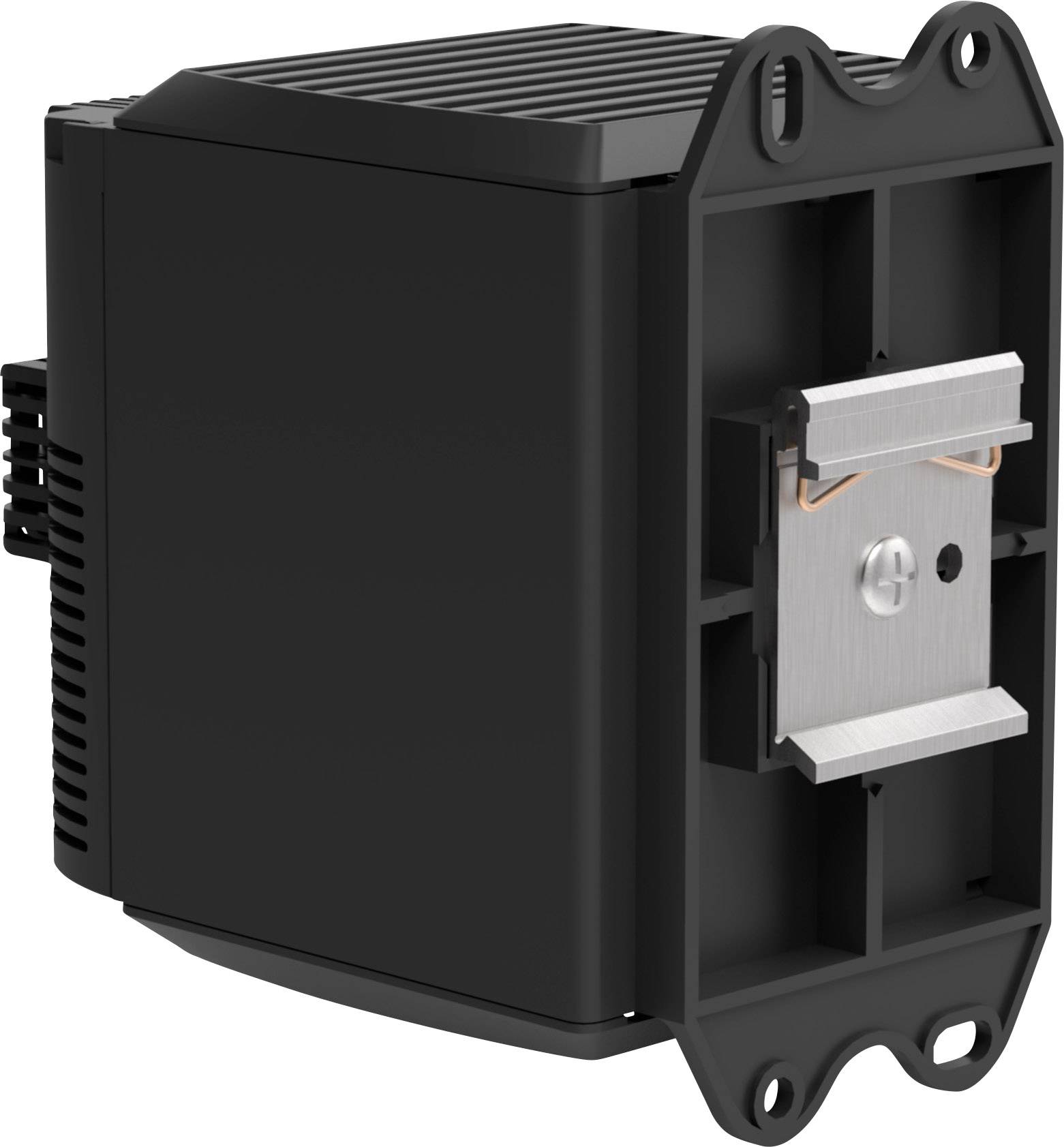

Wall and DIN rail mounting
Low surface temperature
Finger protection at the inlet and outlet
Adjustable thermostat integrated
This text is machine translated.
Large heating power range in one housing (200–1200 W)
Fast heating through PTC technology
Wall and DIN rail mounting
Low surface temperature
Finger protection at the inlet and outlet
Adjustable thermostat integrated
This text is machine translated.
