Name: Phoenix Contact 1719189 Spring-loaded terminal 6.00 mm² Number of pins 1 Green 50 pc(s)
Brand: Phoenix Contact
SKU: 194471
Availability: BackOrder

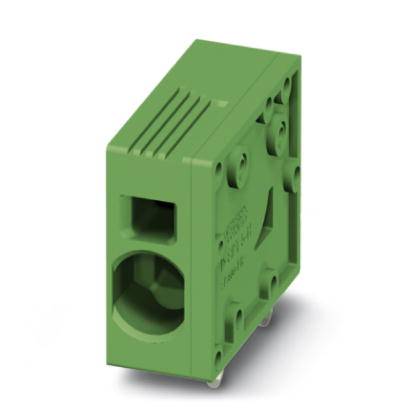

Green electrical plug with a square housing and round openings, suitable for technical connections and installations.

Product type

Spring-loaded terminal

7.50 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.16 / piece)

€ 57.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PCB terminal block SPT 5/ 1-H-7,5

Content 50 pc(s)

Technical specifications

Type: SPT 5/ 1-H-7,5

Product type: Spring-loaded terminal

Features: + push-in spring bracket

CS: 7.50 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: SPT

Min. stripping length: 15 mm

Stripping length (max.): 15 mm

Connection: Spring-loaded terminal
Print

Nominal current: 41 A

Cross section (flexible) (min.): 0.20 mm²

Nominal current - rounded value: 41 A

Cross section (inflexible) (min.): 0.20 mm²

Cross section (flexible) (max.): 6.00 mm²

Cross section (inflexible) (max.): 10.00 mm²

AWG (min.): 24

Connector orientation: Parallel (to the PCB)

AWG max.: 8

Contact material: Tin plated

Enclosure material: Polyamide 6.6

Factory colour: Green

Wire protection: Yes

Manufacturer part #: 1719189

Industrial packaging: Yes

Content: 50 pc(s)

Nominal voltage: 1000 V

Width: 24.20 mm

Height: 24.15 mm

Length: 9.30 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 194471 Phoenix Contact 1719189 Spring-loaded terminal 6.00 mm² Number of pins 1 Green 50 pc(s)

User & Safety Instructions

User & Safety Instructions 194471 Phoenix Contact 1719189 Spring-loaded terminal 6.00 mm² Number of pins 1 Green 50 pc(s)

Description

PCB terminal block, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.5 mm, Number of positions: 1, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green
