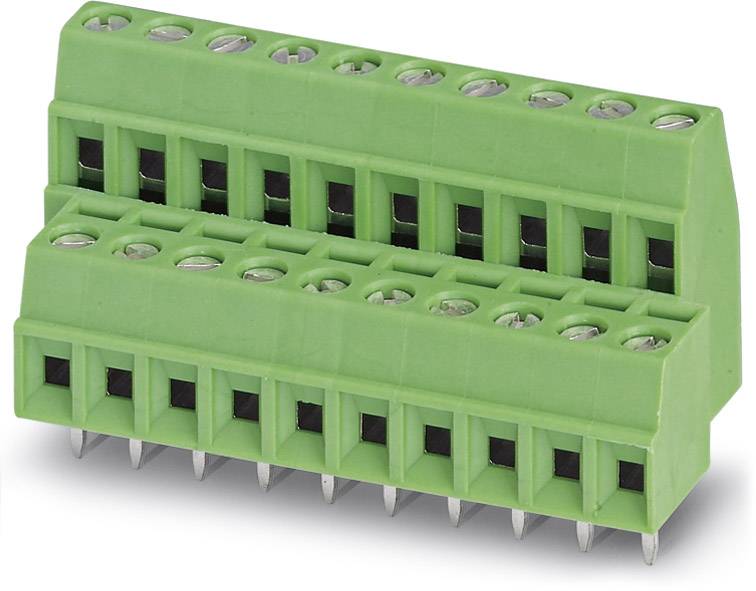

Image similar
Phoenix Contact 1751536 2-tier terminal 1.00 mm² Number of pins 32 Green 50 pc(s)
Product type
2-tier terminal
CS
3.50 mm
Pins per row
16
Number of pins
32
Connection
Screw terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 12.18 / piece)
€ 609.00
incl. VAT
14-day return policy included
Highlights & Details
PCB terminal block MKKDS 1/16-3,5
- Content 50 pc(s)
Technical specifications
- Type
MKKDS 1/16-3,5
- Product type
2-tier terminal
- Features
+ extractor sleeve
- CS
3.50 mm
- Pins per row
16
- Number of pins
32
- Series
MKKDS
- Stripping length (max.)
5.00 mm
- Connection
Screw terminal
Print
- Nominal current
8 A
- Cross section (flexible) (min.)
0.14 mm²
- Nominal current - rounded value
8 A
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.00 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
16
- Contact material
Tin plated
- Factory colour
Green
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
1751536
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
200 V
- Width
58.25 mm
- Height
19.70 mm
- Length
16.30 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 587160 Phoenix Contact 1751536 2-tier terminal 1.00 mm² Number of pins 32 Green 50 pc(s)
User & Safety Instructions
User & Safety Instructions 587160 Phoenix Contact 1751536 2-tier terminal 1.00 mm² Number of pins 32 Green 50 pc(s)
Description
PCB terminal block, Nominal current: 8 A, Nom. voltage: 200 V, Pitch: 3.5 mm, Number of positions: 16, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green
