Phoenix Contact HC-EVO-B10PT-BWD-HL-M25-PLRBK Connector set with push-in connection Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
M25
Connection
Pull spring
Features
Cable input (straight)
Series
HC-EVO-B10
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Product type
Connector set
- Features
Cable input (straight)
- Series
HC-EVO-B10
- Thread size
M25
- Connection
Pull spring
- Case material
Plastic
- Factory colour
Black
IP66
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Number of pins
10
- Leading contact (PE)
Yes
- Content
1 pc(s)
- Total no. of pins
10 + PE
- Type
Connector set with push-in connection
55.855
121.817 mm
106.905 mm
Double locking levers
500 V
1
10
Hermaphrodite
Other
Other
100-100 °C
-40-100 °C
V0
6 kV
Insulation piercing connection
Other
IK09
TRUE
III
3
0.14-2.5 mm²
0.14-2.5 mm²
IP66
TRUE
Other
Other
Other
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 556310 Phoenix Contact HC-EVO-B10PT-BWD-HL-M25-PLRBK Connector set with push-in connection Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 556310 Phoenix Contact HC-EVO-B10PT-BWD-HL-M25-PLRBK Connector set with push-in connection Content: 1 pc(s)
Description

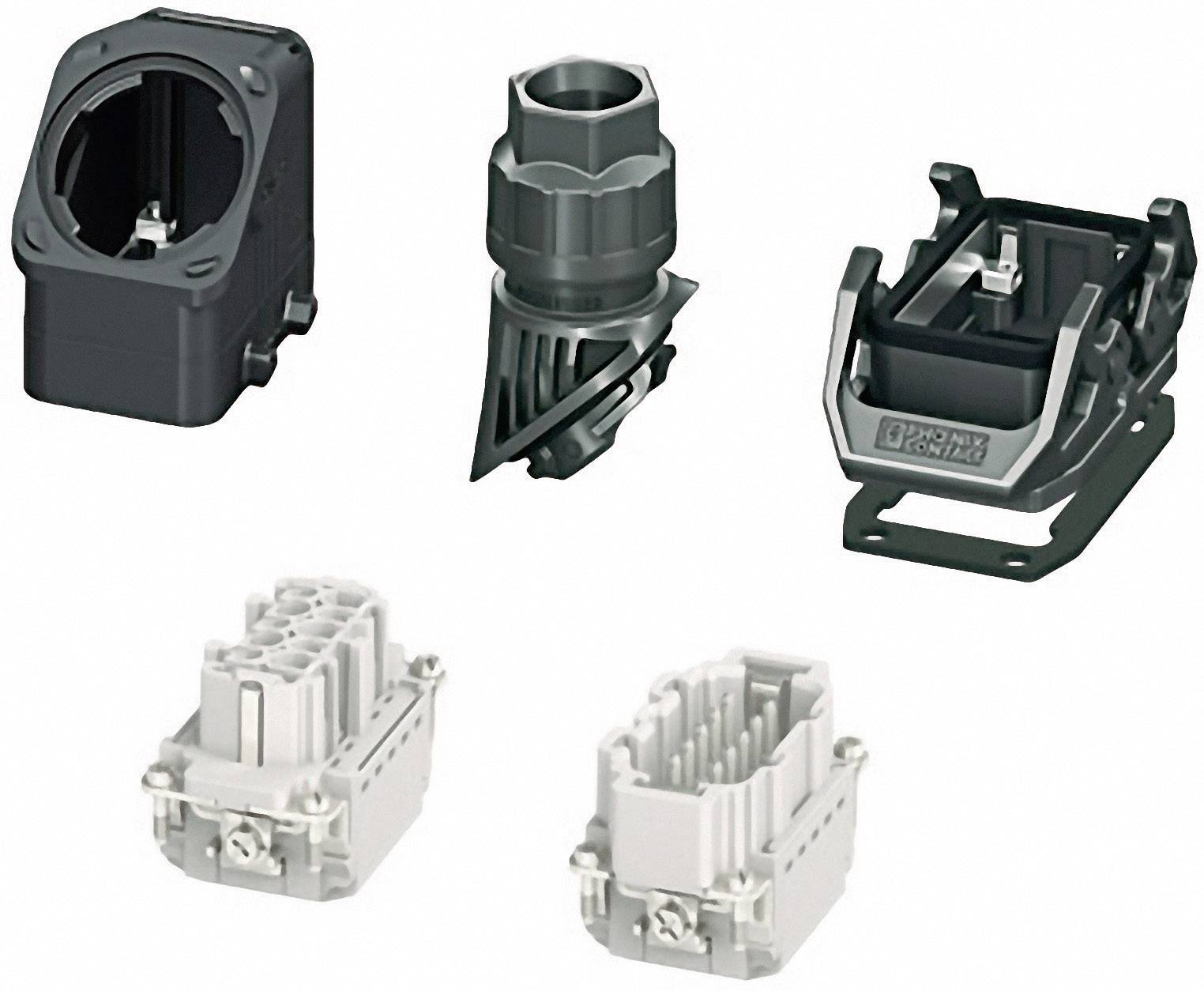

Scope of delivery
- Socket insert
- Pin insert
- Attachment housing
- Socket shell
- Cable gland
- This text is machine translated.
