Phoenix Contact HC-EVO-B16PT-BWSC-HH-M25ELC-AL Connector-EVO Set Series B16 Content: 1 Set
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
M25
Connection
Plug & Clip
Features
Cable input (lateral, straight)
Series
HC-EVO-B16
Datasheet (PDF)
Technical specifications
- Product type
Connector set
- Features
Cable input (lateral, straight)
- Series
HC-EVO-B16
- Thread size
M25
- Connection
Plug & Clip
- Case material
Aluminium, die cast
- Factory colour
Black
IP66
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
2.5 mm²
- Number of pins
16
- Leading contact (PE)
Yes
- Content
1 Set
- Total no. of pins
16 + PE
- Type
Connector-EVO Set Series B16
- Type
B16
- Pins
16 + PE
- Connection
Push-in
Documents & Downloads
Datasheet
Datasheet 1379776 Phoenix Contact HC-EVO-B16PT-BWSC-HH-M25ELC-AL Connector-EVO Set Series B16 Content: 1 Set
User & Safety Instructions
User & Safety Instructions 1379776 Phoenix Contact HC-EVO-B16PT-BWSC-HH-M25ELC-AL Connector-EVO Set Series B16 Content: 1 Set
Description
Connector-EVO set from the series B16 with metal case.
This text is machine translated.
This text is machine translated.

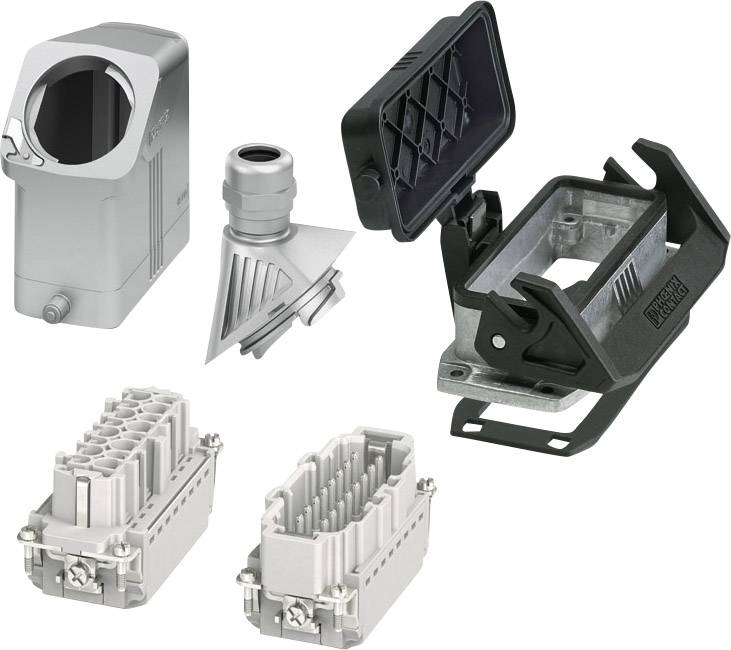

Scope of delivery
- Sleeve housing 1411461
- Add-on housing 1411325
- EVO-gland 1411446
- Pin contact insert 1407732
- Socket contact insert 1407731.
