Image similar
1/2
Image similar
PIC MS-104-3 N/A
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
150 V DC
120 V AC
Switching current (max.)
0.5 A
Connection
Solder pins
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Highlights & Details
PIC MS-104-3 N/A
Our service for you
Technical specifications
- Product type
Reed switch
- Type
MS-104-3
- Water activity (max.)
15
- Water activity (min.)
10
- Contact type
1 maker
- Switching voltage (max.)
150 V DC
120 V AC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Connection
Solder pins
- Max. temperature
+85 °C
- Min. temperature
-20 °C

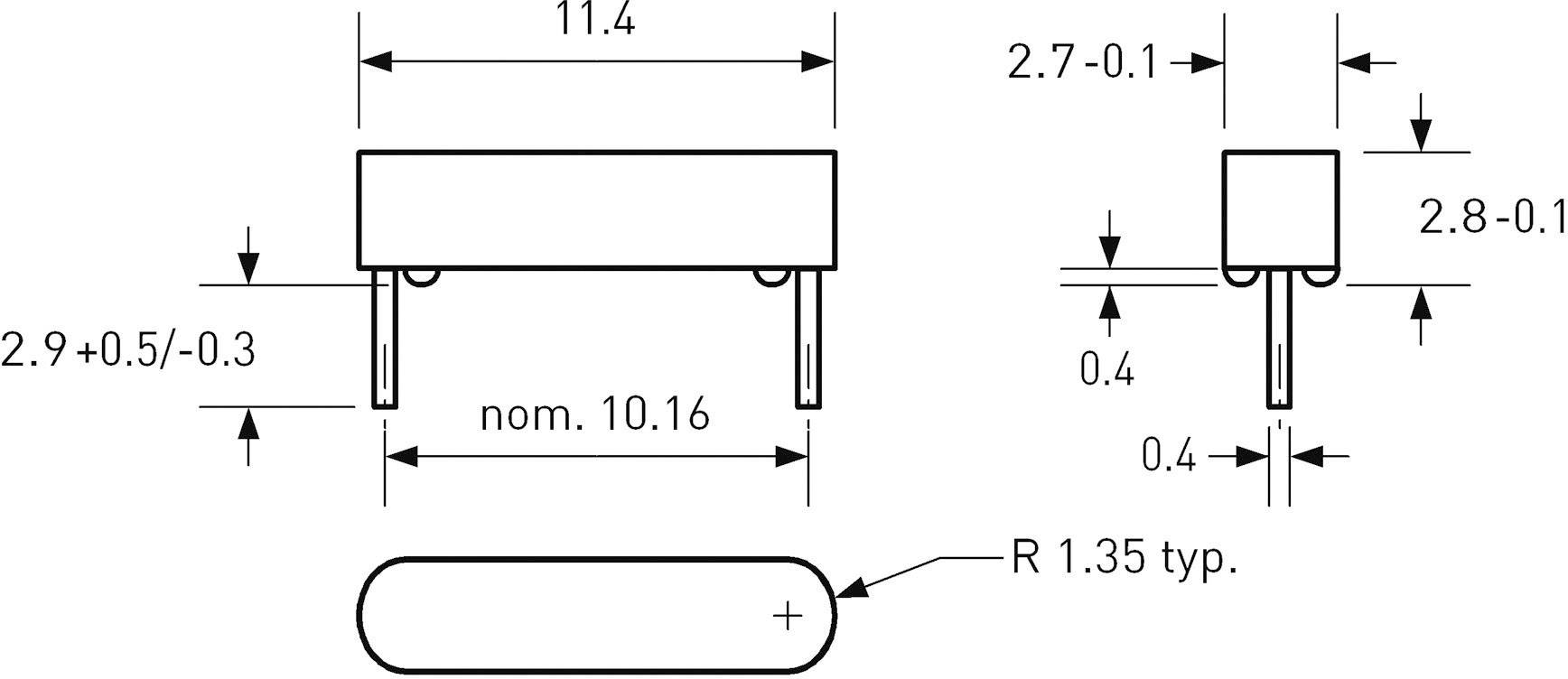

- Width
2.7 mm
- Height
2.8 mm
- Length
11.4 mm
- Dim
(L x W x H) 11.4 x 2.7 x 2.8 mm
- RoHS-compliant
Yes
- Water activity
10 - 15
Documents & Downloads
Datasheet
Datasheet 506965 PIC MS-104-3 N/A
User & Safety Instructions
User & Safety Instructions 506965 PIC MS-104-3 N/A
Information
Information 506965 PIC MS-104-3 N/A
Description
Mechanically protected, Wired Reed sensor in plastic housing, plug-in assembly.
This text is machine translated.
This text is machine translated.
