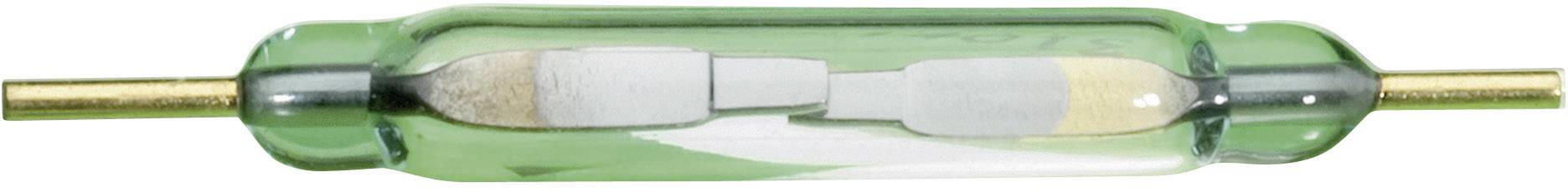

PIC PMC-1401S Reed switch 1 maker 200 V DC, 140 V AC 1 A 10 W Envelope length:14.2 mm
EAN:
Part number:
Item no:
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
200 V DC
140 V AC
Switching current (max.)
1 A
Connection
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.25
9
8% = € 0.10
€ 1.15
15
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 1.25 / piece)
€ 3.75
plus VAT.
Highlights & Details
PIC PMC-1401S Reed switch 1 maker 200 V DC, 140 V AC 1 A 10 W Envelope length:14.2 mm
Our service for you
Technical specifications
- Product type
Reed switch
- Type
PMC-1401S
- Water activity (max.)
15
- Water activity (min.)
10
- Contact type
1 maker
- Contact material
Ruthenium
- Switching voltage (max.)
200 V DC
140 V AC
- Switching current (max.)
1 A
- Max. switching capacity
10 W
- Connection
Soldering
- Enclosure material
Glass

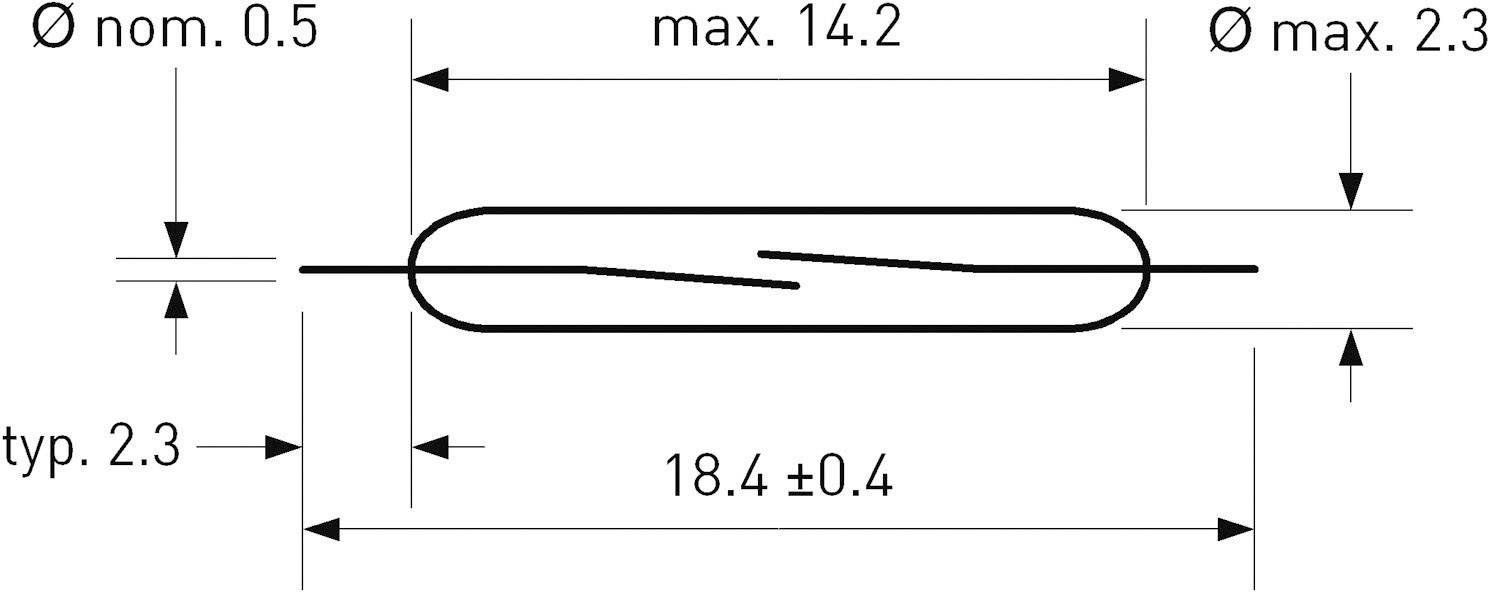

- Envelope length
14.2 mm
- Max. temperature
+155 °C
- Min. temperature
-60 °C
- Length
18.4 mm
- (Ø)
2.3 mm
- Dim
(Ø x L) 2.3 mm x 18.4 mm
- RoHS-compliant
Yes
- Water activity
10 - 15
Documents & Downloads
Datasheet
Datasheet 506944 PIC PMC-1401S Reed switch 1 maker 200 V DC, 140 V AC 1 A 10 W Envelope length:14.2 mm
User & Safety Instructions
User & Safety Instructions 506944 PIC PMC-1401S Reed switch 1 maker 200 V DC, 140 V AC 1 A 10 W Envelope length:14.2 mm
Information
Information 506944 PIC PMC-1401S Reed switch 1 maker 200 V DC, 140 V AC 1 A 10 W Envelope length:14.2 mm
Description
Reed switch for mounting in PCB outbreak, thus almost 50% lower overall height.
