PIC PMC-3617 N/A

The image depicts a glass tube with two wires at each end. It appears to be a technical component, potentially a fuse.

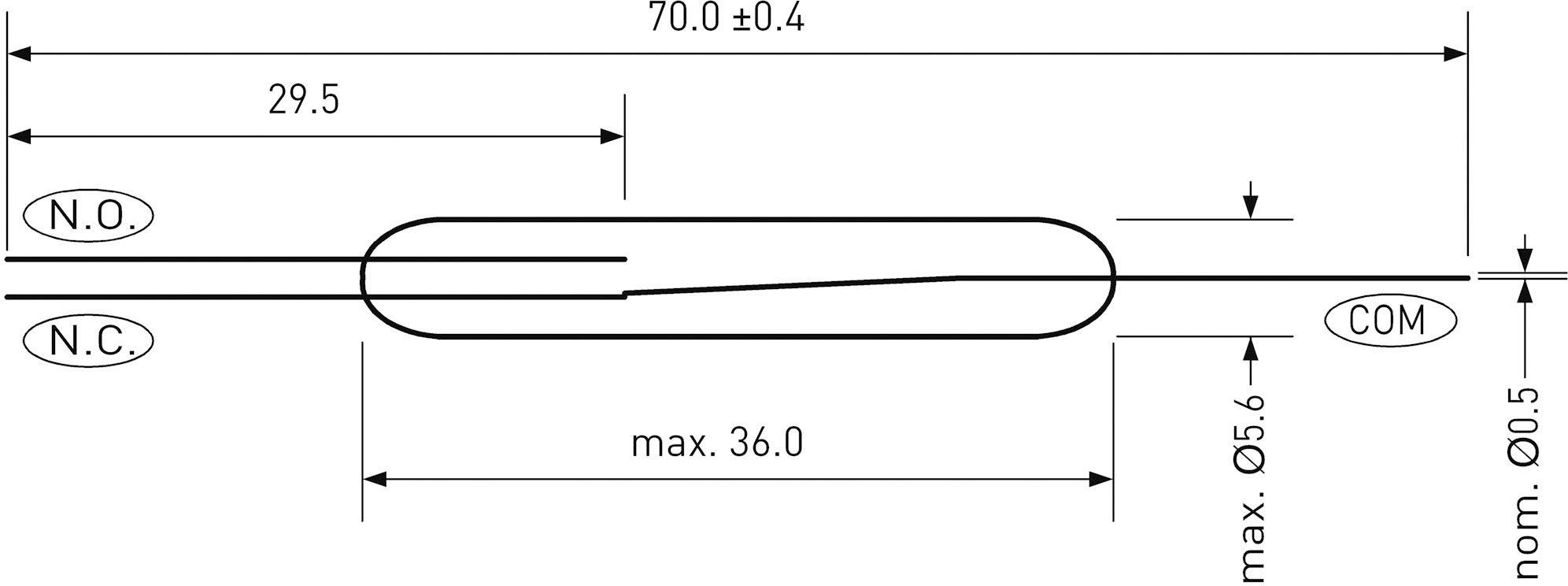

Technical drawing of a cylindrical switch with dimensions: Length 70.0 ±0.4 mm, diameter max. Ø5.6. Terminals: N.O., N.C., COM.
1/2
Product type
Reed switch
Contact type
1 change-over
Switching voltage (max.)
400 V DC
400 V AC
Switching current (max.)
1 A
Connection
Solder pins
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
192 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 10.99 / piece)
€ 10.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

PIC PMC-3617 N/A

Our service for you

Technical specifications

Product type

Reed switch

Type

PMC-3617

Water activity (max.)

80

Water activity (min.)

50

Contact type

1 change-over

Contact material

Rh (Rhodium)

Switching voltage (max.)

400 V DC

400 V AC

Switching current (max.)

1 A

Max. switching capacity

60 W

Connection

Solder pins

Enclosure material

Glass

Max. temperature

+130 °C

Min. temperature

-40 °C

Dim. (add. text)

Casing

Length

36 mm

(Ø)

5.6 mm

Dim

(Ø x L) 5.6 mm x 36 mm (Casing)

RoHS-compliant

Yes

Water activity

50 - 80

Documents & Downloads

Datasheet

Datasheet 506933 PIC PMC-3617 N/A

User & Safety Instructions

User & Safety Instructions 506933 PIC PMC-3617 N/A

Information

Information 506933 PIC PMC-3617 N/A

Description

Power directly even for critical loads.
