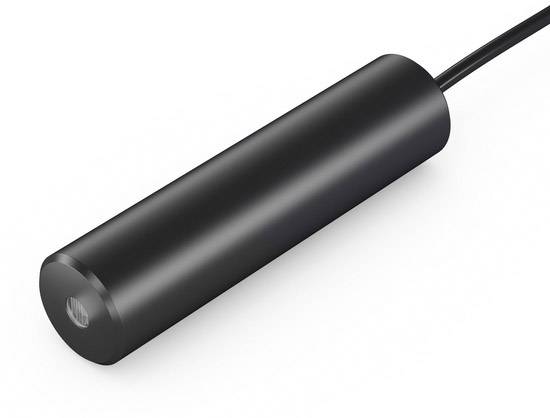

Picotronic Laser module Cross Red 10 mW CB 650-10-24 (20 x 80) C3000-G
Product type
Laser module
Emission characteristics
Cross
Wavelength
650 nm
Power
10 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 389.00 / piece)
€ 389.00
incl. VAT
14-day return policy included
Highlights & Details
Laser module cross
- Red
- Laser category: 2
- Emission characteristics: Cross
Technical specifications
- Connection cable 3000 mm
- Product type
Laser module
- Type
CB 650-10-24 (20 x 80) C3000-G
- Emission characteristics
Cross
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
10 mW
- Laser category
2
- Angular aperture
60°
- Beam divergence
0.3 mrad
- Clearance
3 m
- Operating voltage
24 V DC
- Operating current
5 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695943 Picotronic Laser module Cross Red 10 mW CB 650-10-24 (20 x 80) C3000-G
User & Safety Instructions
User & Safety Instructions 1695943 Picotronic Laser module Cross Red 10 mW CB 650-10-24 (20 x 80) C3000-G
Information
Information 1695943 Picotronic Laser module Cross Red 10 mW CB 650-10-24 (20 x 80) C3000-G
Conformity certificate
Conformity certificate 1695943 Picotronic Laser module Cross Red 10 mW CB 650-10-24 (20 x 80) C3000-G
Description
Hints
Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
