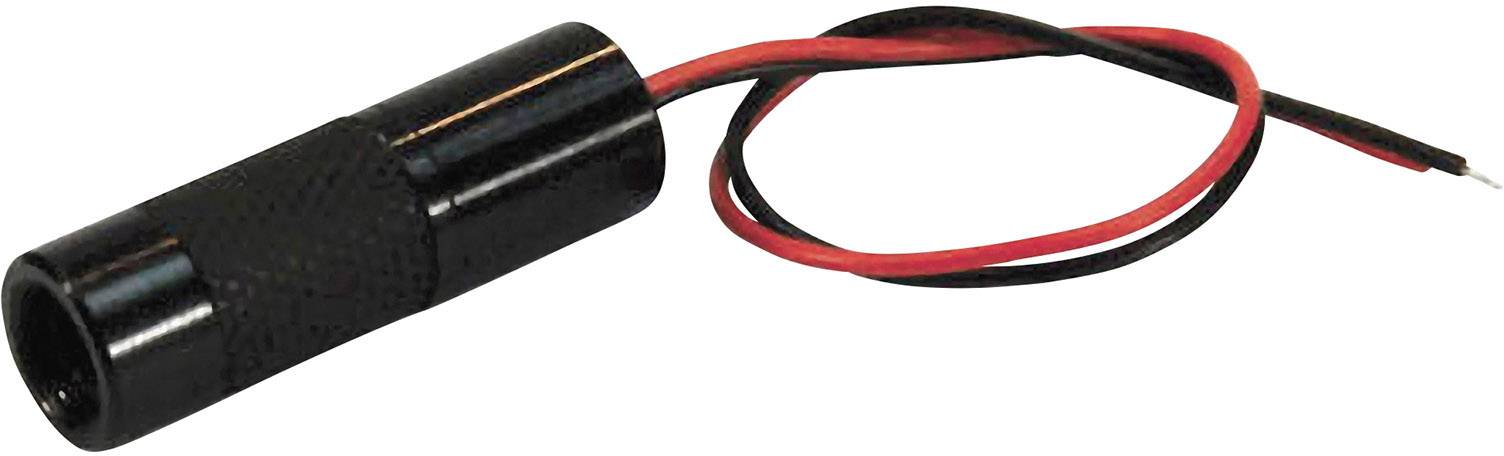

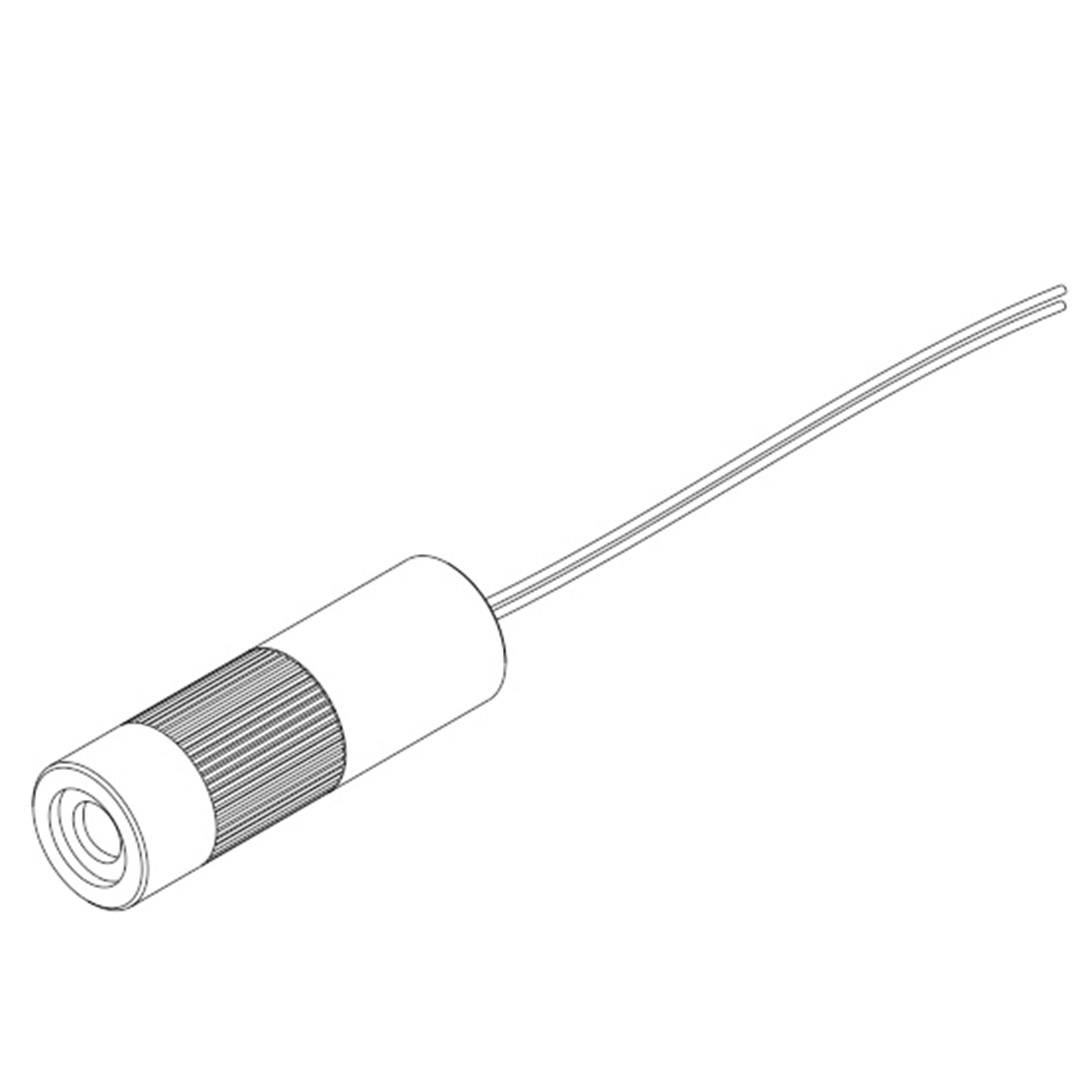

Picotronic Laser module DOE Red 1 mW DD 635-1-3 (12x38) - DOE
Product type
Laser module
Emission characteristics
DOE
Wavelength
635 nm
Power
1 mW
(Ø)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 169.99 / piece)
€ 169.99
incl. VAT
14-day return policy included
Highlights & Details
Insulated DOE - laser, red
- Red
- Laser category: 2
- Emission characteristics: DOE
Technical specifications
- Product type
Laser module
- Type
DD 635-1-3 (12x38) - DOE
- Emission characteristics
DOE
- Focus properties
Selectable focus
- Factory colour
Red
- Wavelength
635 nm
1 mW
- (Ø)
12 mm
- Length
38 mm
- Laser category
2
- Beam divergence
0.5 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
28 mA
- Material
Aluminium

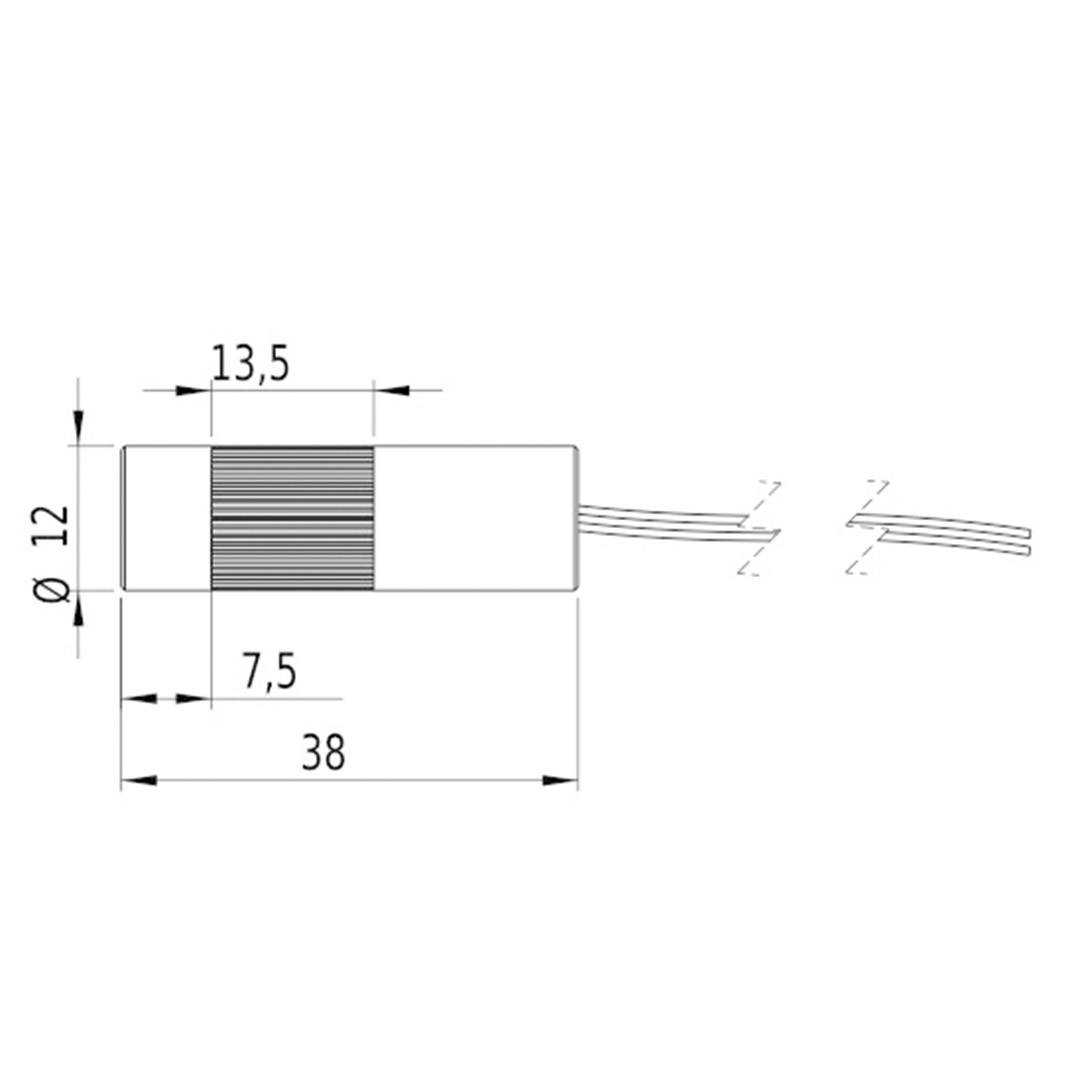

- Dim
(Ø x L) 12 mm x 38 mm
- Weight
9.5 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283412 Picotronic Laser module DOE Red 1 mW DD 635-1-3 (12x38) - DOE
User & Safety Instructions
User & Safety Instructions 1283412 Picotronic Laser module DOE Red 1 mW DD 635-1-3 (12x38) - DOE
Information
Information 1283412 Picotronic Laser module DOE Red 1 mW DD 635-1-3 (12x38) - DOE
Conformity certificate
Conformity certificate 1283412 Picotronic Laser module DOE Red 1 mW DD 635-1-3 (12x38) - DOE
Description

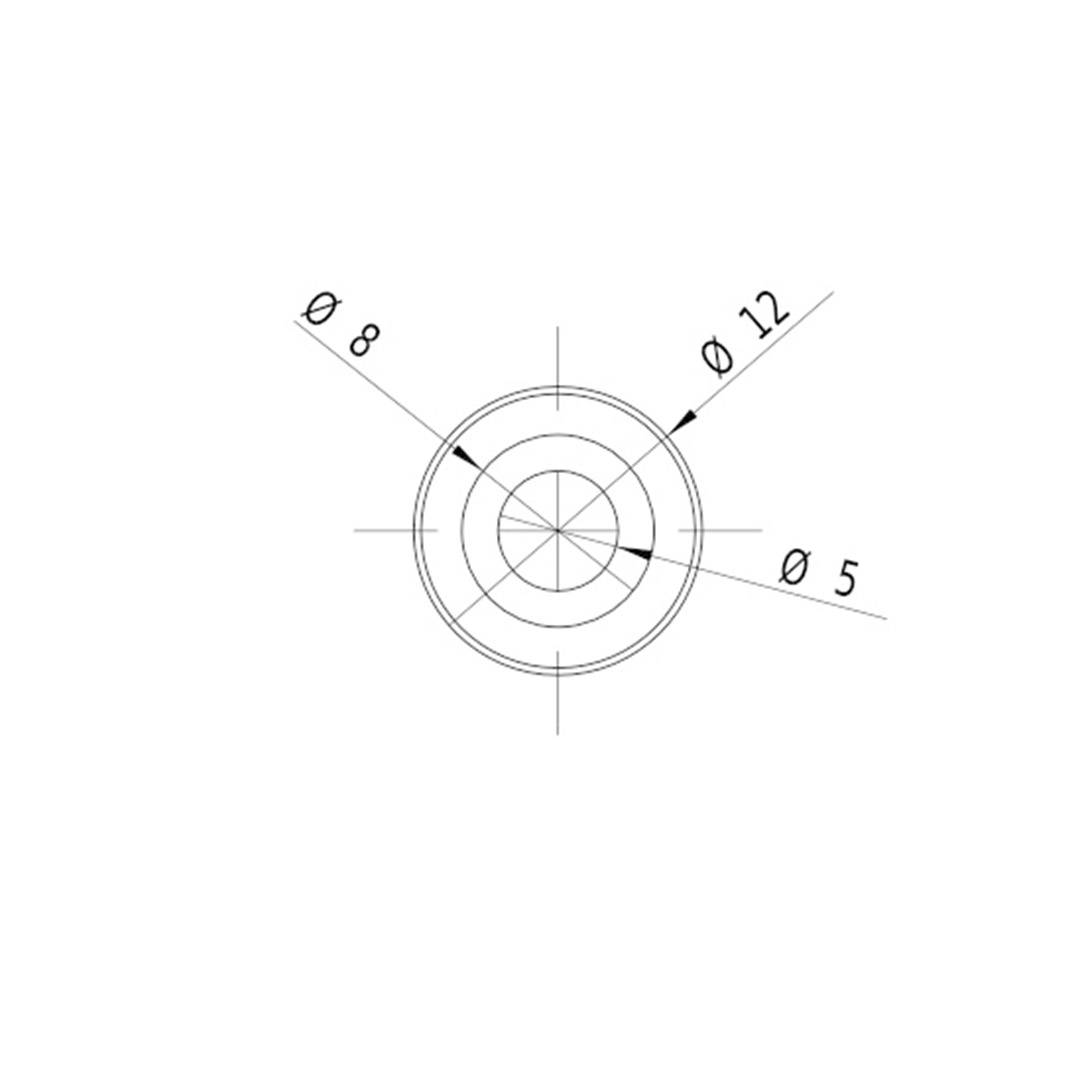

Adjustable insulated DOE laser module. Suitable for installation of a standard DOE with 8 x 1.2 mm. Supplied without DOE (on request available separately).
This text is machine translated.
This text is machine translated.
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
