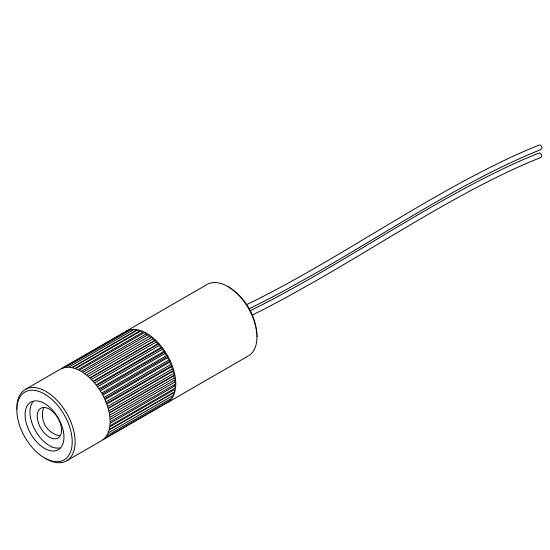

Picotronic Laser module DOE Red 5 mW R242-DD 635-5-3 (12 x 38) - DOE
Product type
Laser module
Emission characteristics
DOE
Wavelength
635 nm
Power
5 mW
Laser category
2M
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 295.00 / piece)
€ 295.00
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Laser module DOE
- Red
- Laser category: 2M
- Emission characteristics: DOE
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
R242-DD 635-5-3 (12 x 38) - DOE
- Emission characteristics
DOE
- Focus properties
Selectable focus
- Factory colour
Red
- Wavelength
635 nm
5 mW
- Laser category
2M
- Beam divergence
0.5 mrad
- Clearance
1 m
- Operating voltage
3 V DC
- Operating current
60 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695832 Picotronic Laser module DOE Red 5 mW R242-DD 635-5-3 (12 x 38) - DOE
User & Safety Instructions
User & Safety Instructions 1695832 Picotronic Laser module DOE Red 5 mW R242-DD 635-5-3 (12 x 38) - DOE
Information
Information 1695832 Picotronic Laser module DOE Red 5 mW R242-DD 635-5-3 (12 x 38) - DOE
Conformity certificate
Conformity certificate 1695832 Picotronic Laser module DOE Red 5 mW R242-DD 635-5-3 (12 x 38) - DOE
Description
Hints
Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
