Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

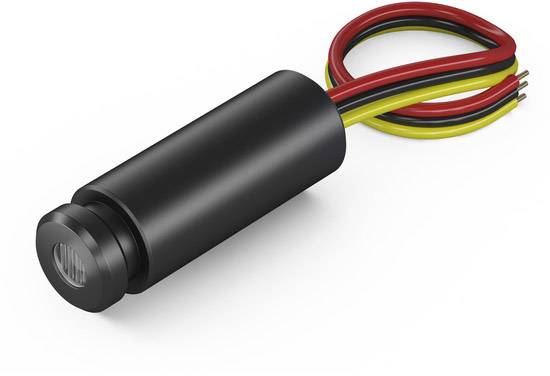

Black cylindrical laser diode module with red, yellow, and black cables.

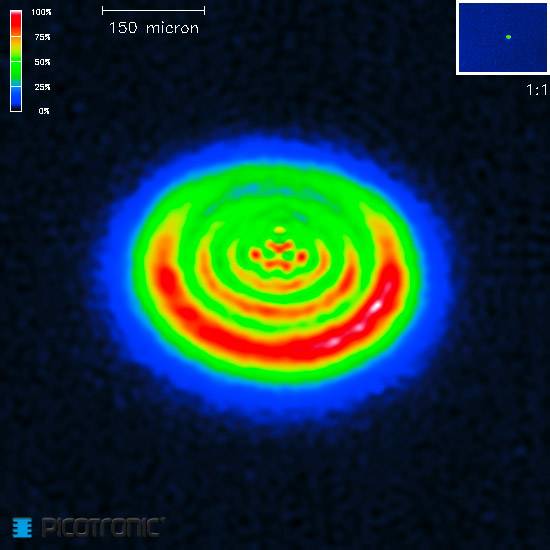

False-colour representation of a radiation profile with concentric rings. Colour scale shows intensity from 0 to 100%.

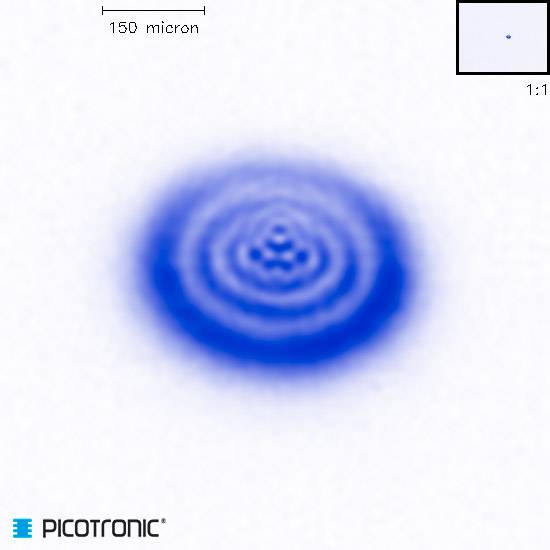

Blurry blue circular pattern of concentric rings, with scaling marked '150 micron' in the top left, 'PICOTRONIC' logo in the bottom left.

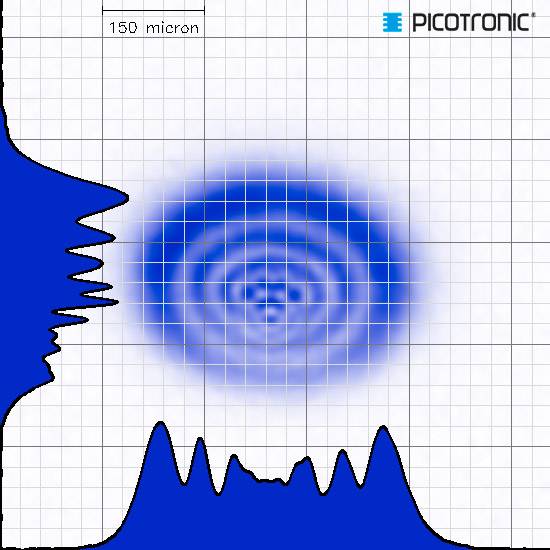

Blue spectral analysis image with central concentric circles. Some unusual shapes on the left. Label: '150 micron', 'PICOTRONIC'.

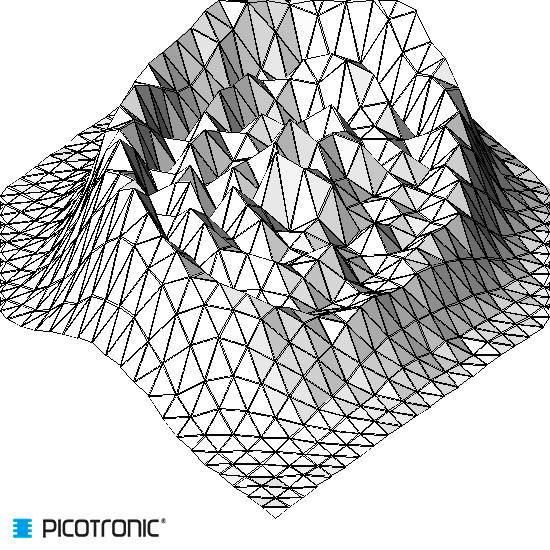

A 3D wire-frame model shows a mountainous structure with steep elevations and valleys. The 'PICOTRONIC' logo is positioned in the bottom left.
Diagram of a 3D surface in rainbow colours with a prominent peak. Colour scale shows percentage values from 0% to 100%.
1/6
Product type
Laser module
Emission characteristics
Dot
Wavelength
405 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 3 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 265.00 / piece)
€ 265.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Laser module point

  • Blue
  • Laser category: 2
  • Emission characteristics: Dot
  • Yellow warning sign with text: 'Laser radiation. Do not look into the beam. Laser Class 2 in accordance with DIN EN 60825-1:2008-05'.

Technical specifications

  • Connection cable 150 mm
Product type

Laser module

Type

MDD 405-1-5 (12.7 x 40)

Emission characteristics

Dot

Focus properties

Selectable focus

Factory colour

Blue

Wavelength

405 nm

1 mW

Laser category

2

Beam divergence

0.5 mrad

Clearance

10 m

Operating voltage

5 V DC

Operating current

50 mA

Material

Brass

RoHS-compliant

Yes

Max. temperature

+50 °C

Min. temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 1695899 Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

User & Safety Instructions

User & Safety Instructions 1695899 Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

Information

Information 1695899 Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

Conformity certificate

Conformity certificate 1695899 Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
