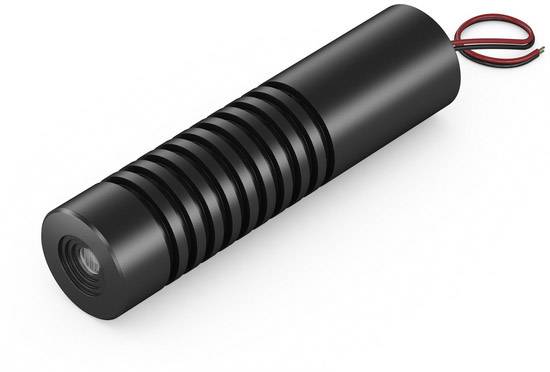

Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500
Product type
Laser module
Emission characteristics
Dot
Wavelength
532 nm
Power
0.4 mW
Laser category
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 409.00 / piece)
€ 409.00
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Laser module point
- Green
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Connection cable, 300 mm
- Product type
Laser module
- Type
DD 532-0.4-24 (20 x 80)-F500
- Emission characteristics
Dot
- Focus properties
500 m fixed-focus
- Factory colour
Green
- Wavelength
532 nm
0.4 mW
- Laser category
1
- Beam divergence
0.5 mrad
- Clearance
0.5 m
- Operating voltage
24 V DC
- Operating current
11 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+30 °C
- Min. temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 1695835 Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500
User & Safety Instructions
User & Safety Instructions 1695835 Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500
Information
Information 1695835 Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500
Conformity certificate
Conformity certificate 1695835 Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
