Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

A cylindrical, black component with two protruding cables, one red and one black.
Technical drawing of a circle with diameter specifications: Outer 'Ø 12', inner 'Ø 2'. Line markings indicate centre points.
The object is a cylindrical component with two protruding cables.
Drawing of a cylindrical object with the following dimensions: diameter 12 mm, length 40 mm. A hole with a diameter of 1.6 mm is located 12.5 mm from the end.

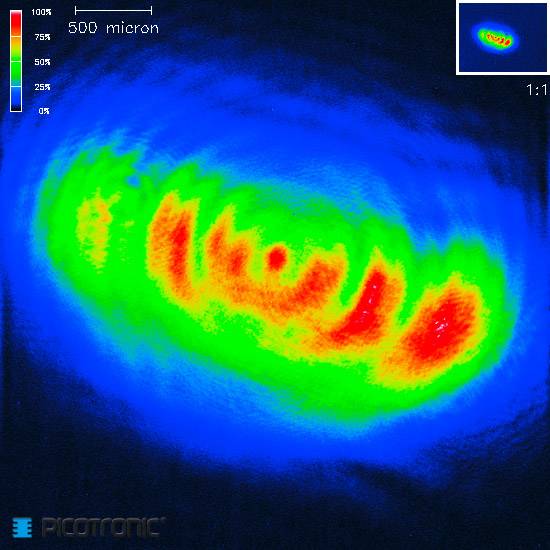

False-colour thermal image shows an oval shape with red, yellow, green, and blue areas. Colour scale in top left with label '500 micron'.

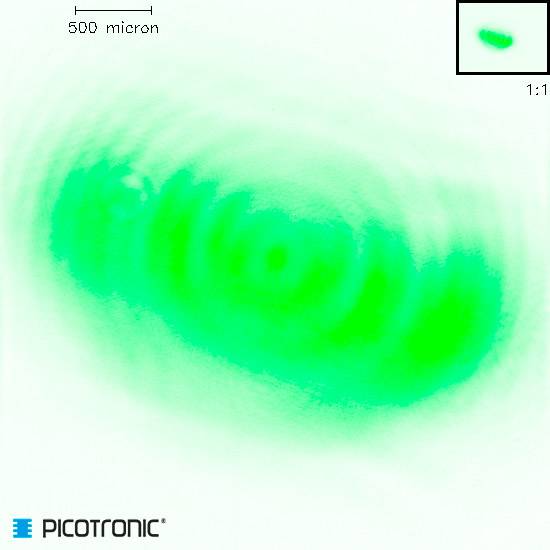

Green pattern showing the interference pattern of an optical experiment. Top left, scale of 500 micrometres. Top right, detailed view.

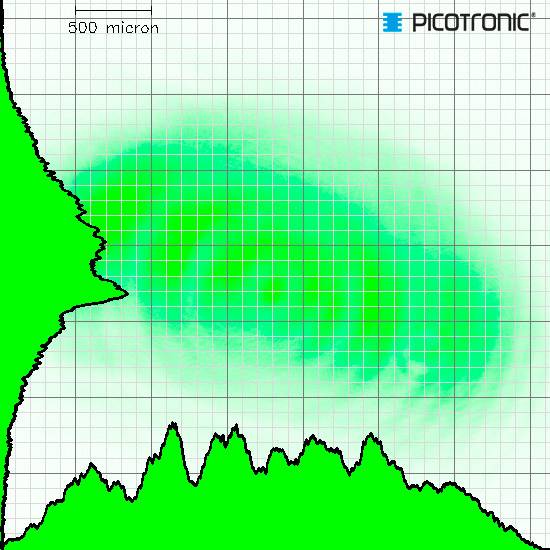

Diagram of a density distribution with a central green area indicating a higher concentration. Scaled horizontally and vertically.

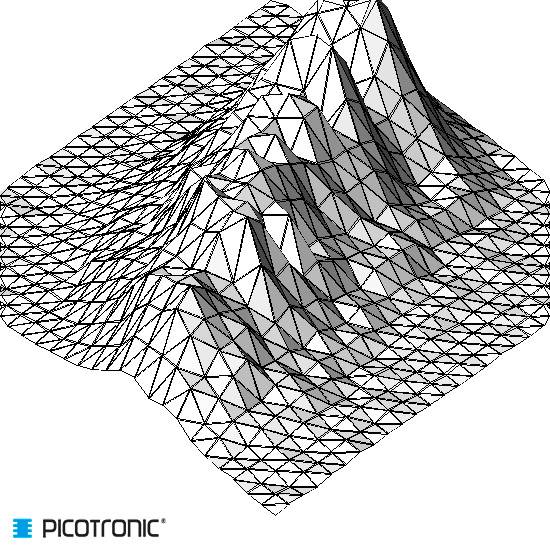

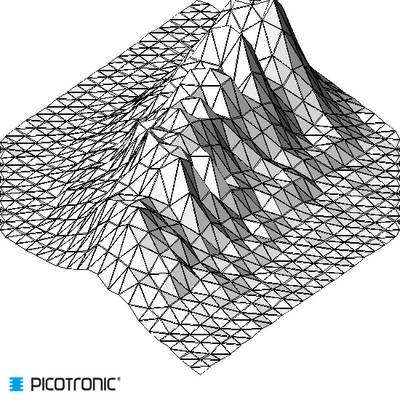

A three-dimensional grid model shows an irregular mountainous landscape with sharp peaks and valleys.
1/8
Product type
Laser module
Emission characteristics
Dot
Wavelength
520 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 3 Nov
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 379.00 / piece)
€ 379.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Laser module point

  • Green
  • Laser category: 2
  • Emission characteristics: Dot
  • Warning sign: 'Laser radiation. Do not look into the beam. Laser Class 2' in accordance with standard DIN EN 60825-1:2008-05.

Technical specifications

  • Connection cable 100 mm
Product type

Laser module

Type

DD 520-1-24 (12 x 40) - QCW

Emission characteristics

Dot

Focus properties

collimated

Factory colour

Green

Wavelength

520 nm

1 mW

Laser category

2

Beam divergence

0.5 mrad

Clearance

50 m

Operating voltage

24 V DC

Operating current

10 mA

Material

Aluminium

RoHS-compliant

Yes

Max. temperature

+60 °C

Min. temperature

-10 °C

Documents & Downloads

Datasheet

Datasheet 1695866 Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

User & Safety Instructions

User & Safety Instructions 1695866 Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

Information

Information 1695866 Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

Conformity certificate

Conformity certificate 1695866 Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
