Name: Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)
Brand: Picotronic
SKU: 1283333
Availability: InStock

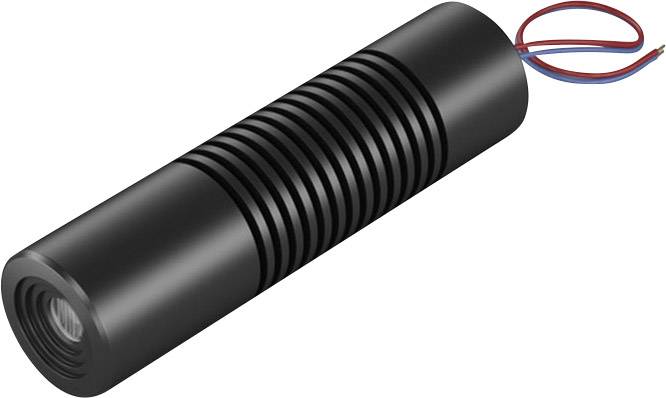

Cylindrical object with grooves and two protruding wires, potentially part of an electronic or optical device.

A black, cylindrical electrical sensor with two protruding wires in blue and red. Suitable for technical applications.

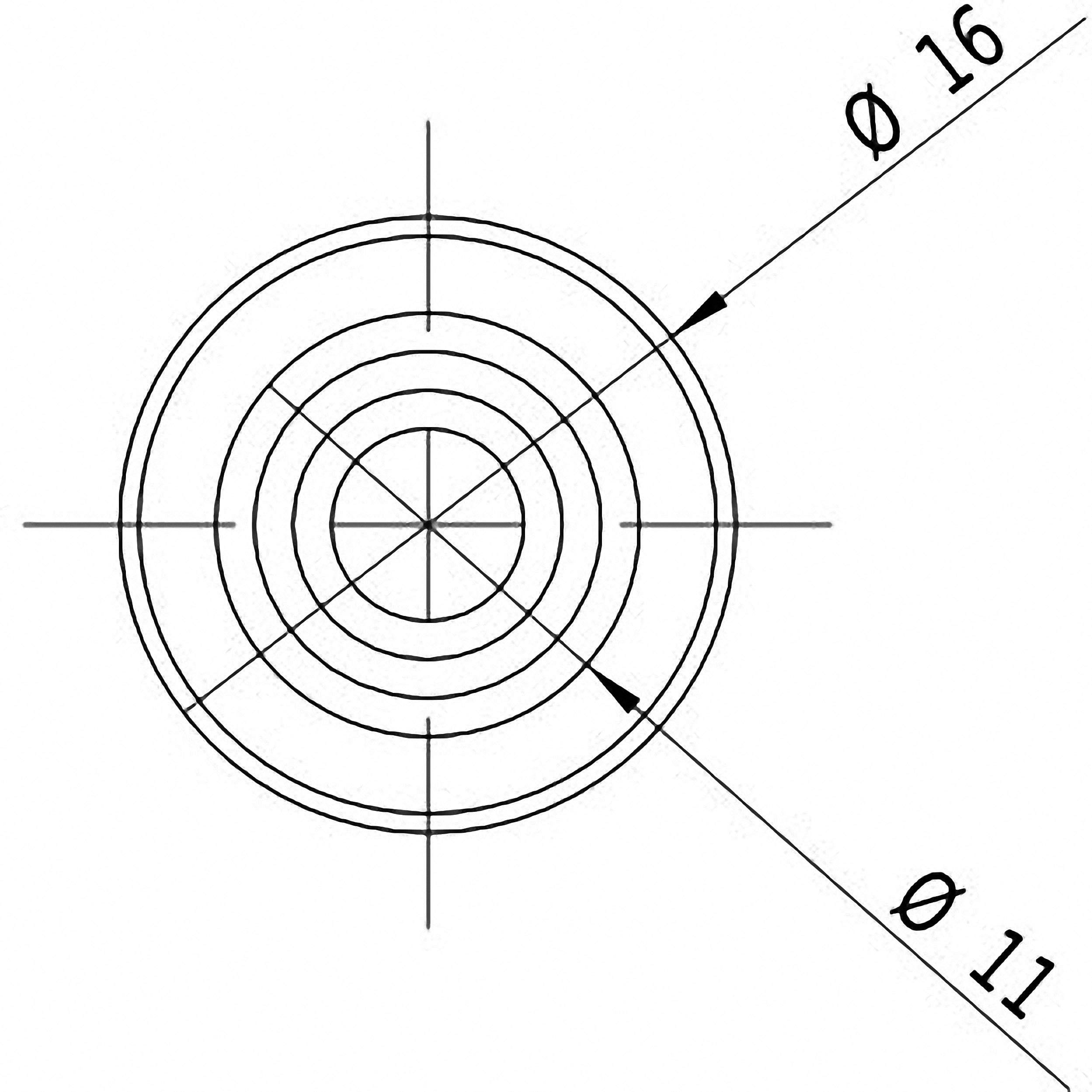

Technical drawing of a circular part with concentric rings. Two diameters are specified: Ø 16 and Ø 11.

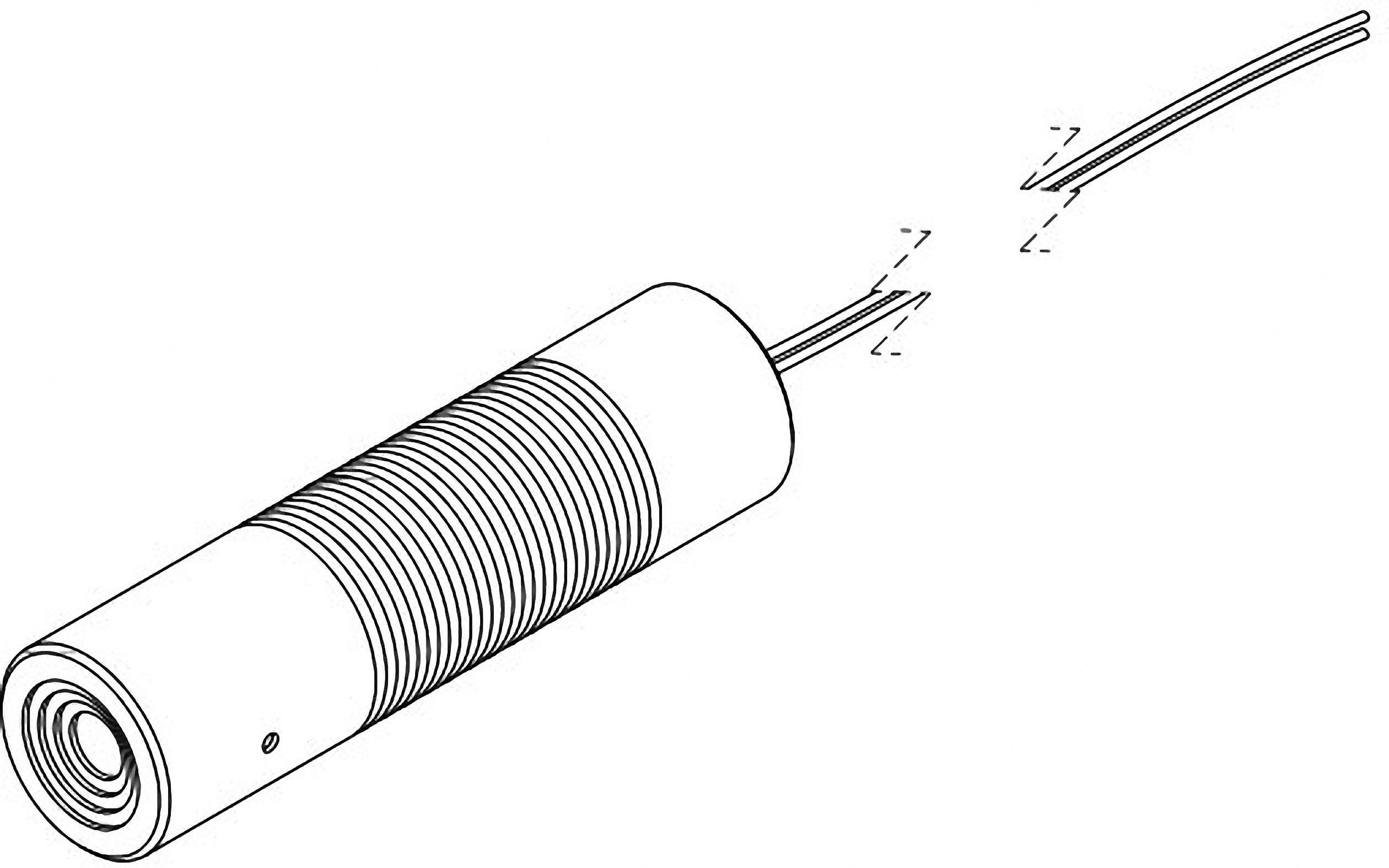

A cylindrical laser sensor with connection cables. The cables are slightly separated from the sensor to show the connection details.

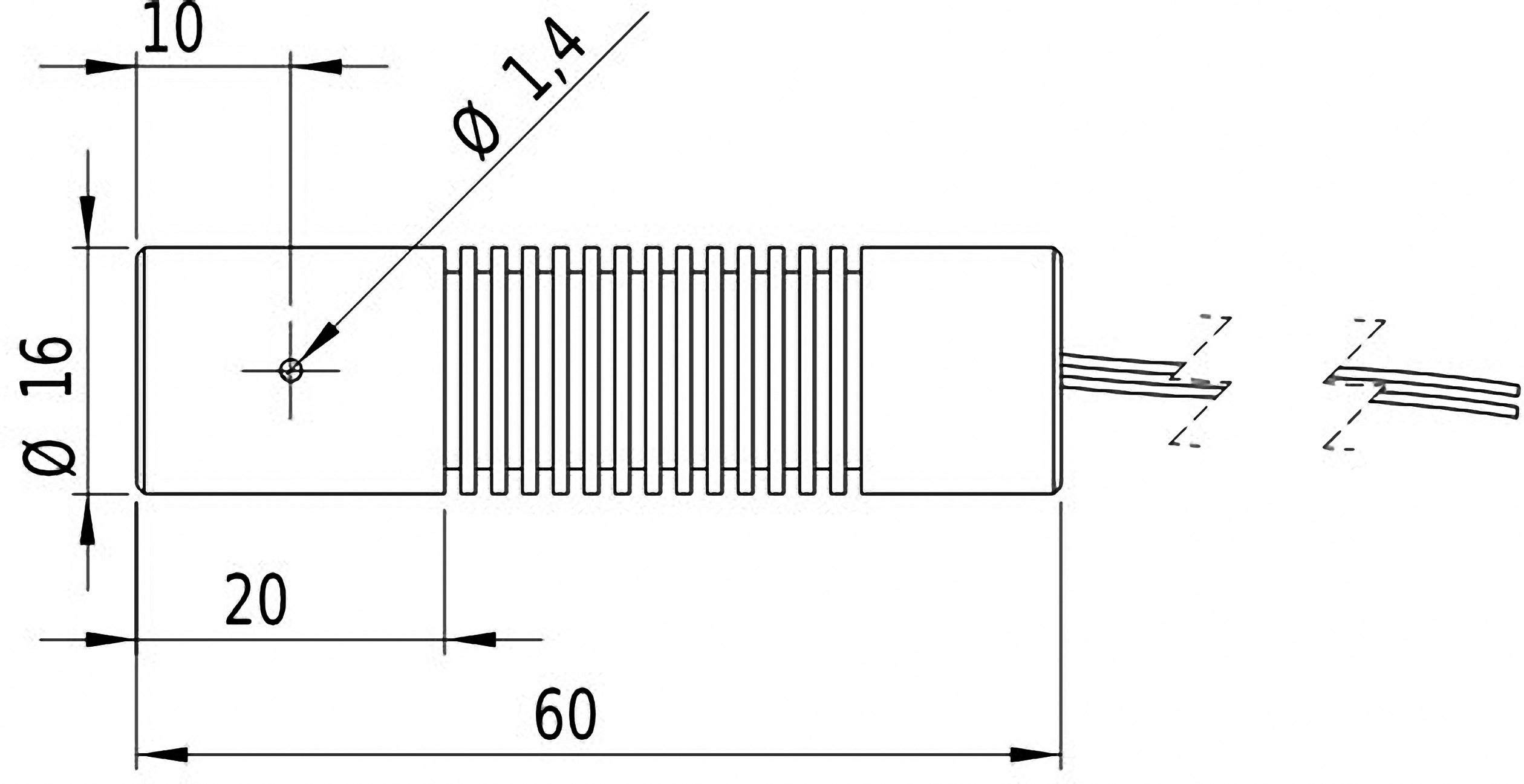

Technical drawing of a cylindrical component. Dimensions: Length 60, Diameter 16. Hole with Ø 1.4. Shows dimensions and cable connection.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

532 nm

Power

1 mW

(Ø)

16 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 224.99 / piece)

€ 224.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated Point Laser, green

Green
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DD 532-1-3 (16x60)

Emission characteristics: Dot

Focus properties: 10 m fixed-focus

Factory colour: Green

Wavelength: 532 nm

: 1 mW

(Ø): 16 mm

Length: 60 mm

Laser category: 2

Beam divergence: 0.5 mrad

Clearance: 50 m

Operating voltage: 3 V DC

Operating current: 160 mA

Material: Aluminium

Dim: (Ø x L) 16 mm x 60 mm

Weight: 43 g

RoHS-compliant: Yes

Max. temperature: 30 °C

Min. temperature: 15 °C
