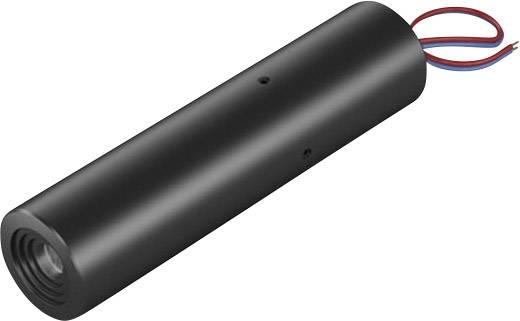

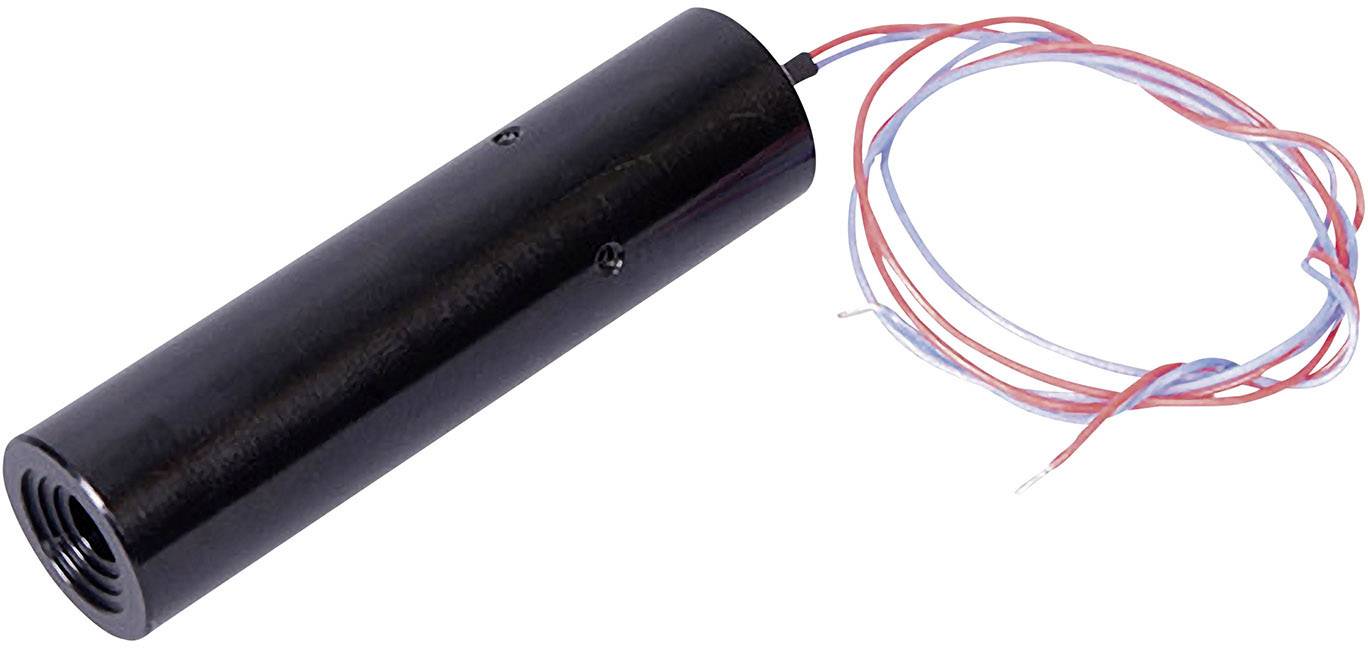

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300
Product type
Laser module
Emission characteristics
Dot
Wavelength
532 nm
Power
1 mW
(Ø)
16 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 349.00 / piece)
€ 349.00
incl. VAT
Only 8 Piece(s) available
Highlights & Details
Insulated Point Laser, green
- Green
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Product type
Laser module
- Type
DD 532-1-3 (16x60)-AP-C300
- Emission characteristics
Dot
- Focus properties
10 m fixed-focus
- Factory colour
Green
- Wavelength
532 nm
1 mW

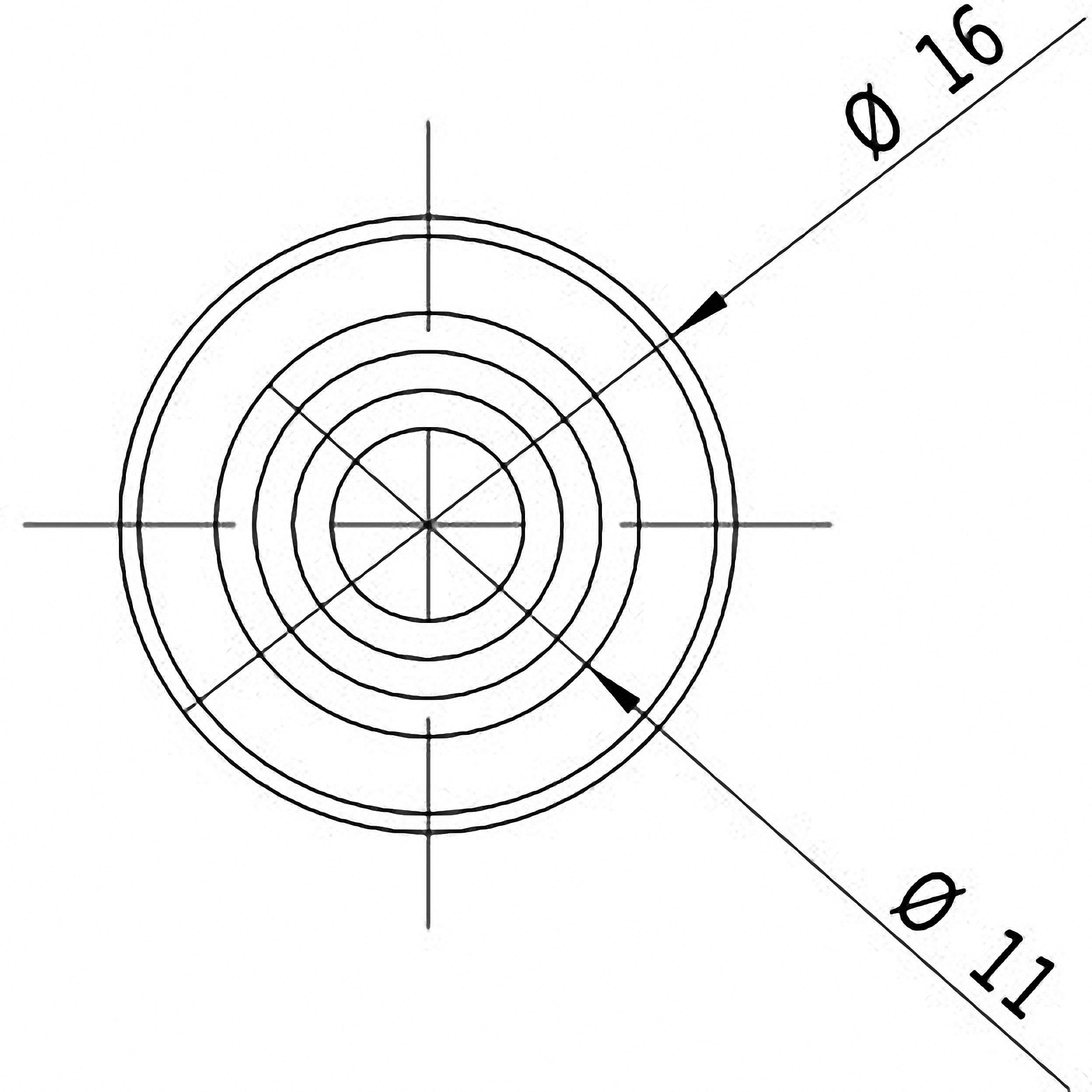

- (Ø)
16 mm
- Length
60 mm
- Laser category
2
- Beam divergence
0.5 mrad
- Clearance
100 m
- Operating voltage
3 V DC
- Operating current
250 mA
- Material
Aluminium
- Dim

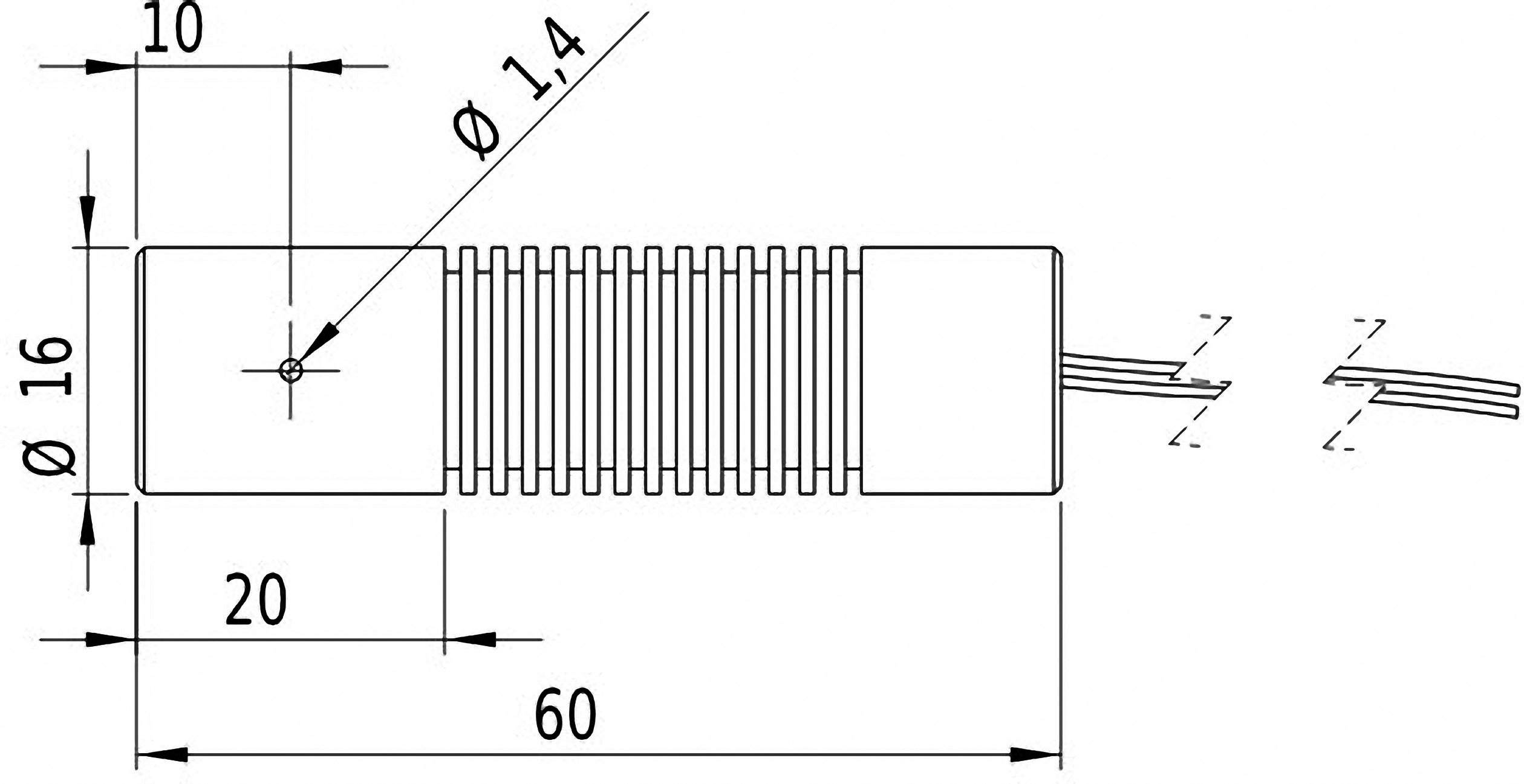

(Ø x L) 16 mm x 60 mm
- Weight
35 g
- RoHS-compliant
Yes
- Max. temperature
30 °C
- Min. temperature
15 °C
Documents & Downloads
Datasheet
Datasheet 1283336 Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300
User & Safety Instructions
User & Safety Instructions 1283336 Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300
Information
Information 1283336 Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300
Conformity certificate
Conformity certificate 1283336 Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
