Name: Picotronic Laser module Dot Infrared 0.4 mW DC 850-0. 4-4.5 (14x64)
Brand: Picotronic
SKU: 1696004
Availability: InStock

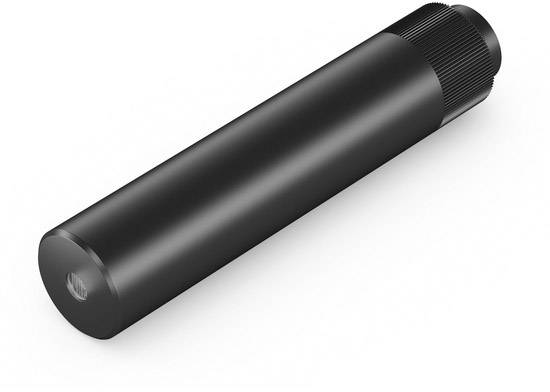

Black cylindrical object with a ridged surface at one end.

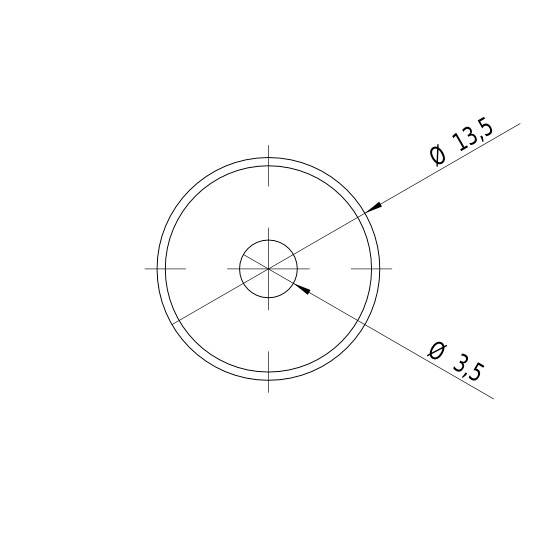

Technical drawing of a circle with two diameters: 13.5 mm and 3.5 mm, measured radially from the centre.

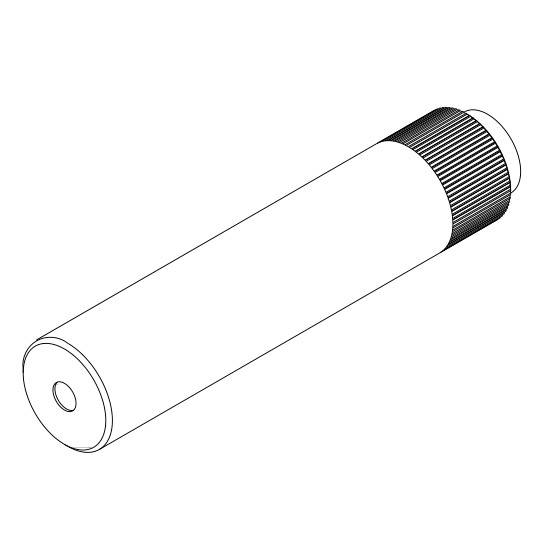

An isometric diagram shows a cylindrical pipe connector with a ribbed section at the rear end.

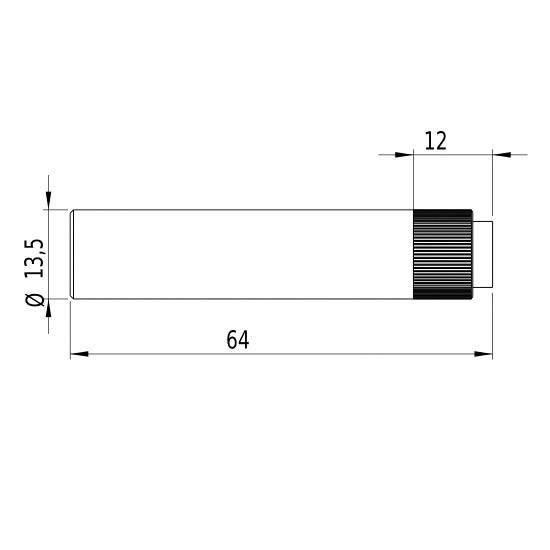

Dimensional diagram of a cylindrical object with 64 mm length, 13.5 mm diameter and 12 mm end cap on the right side.

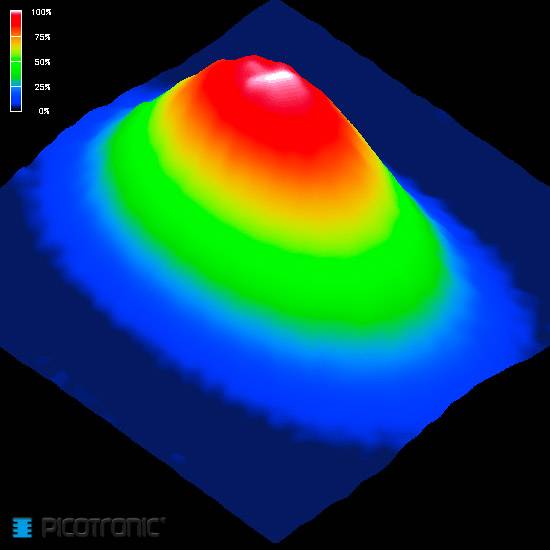

3D diagram shows a colour-coded mountain with a colour scale: Red (High), Yellow, Green, Blue (Low). Elevation distribution visible.

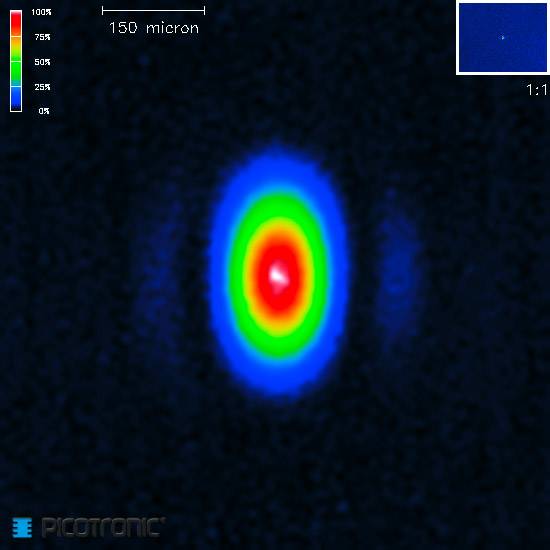

False-colour image of a light ray with a central red area, surrounded by green and blue rings. Small inset in top right.

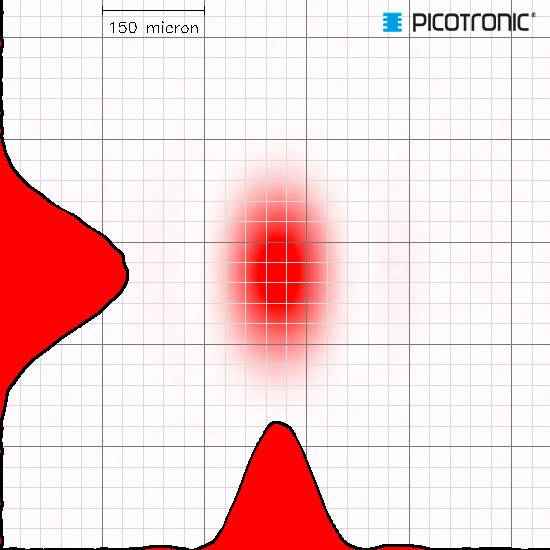

A laser spot diagram with vertical and horizontal profiles, showing the intensity distribution of a laser with a red centre.

A 3D wireframe model shows a wavy surface in black and white, depicting an alternating mountain and valley landscape.

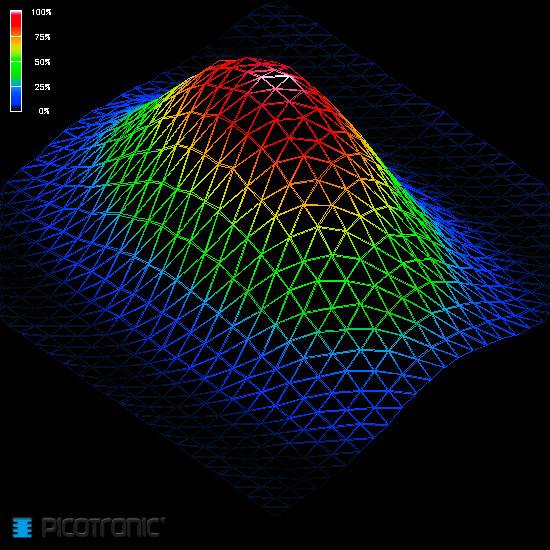

3D wire-frame diagram in rainbow colours shows a mountain-like elevation. Percentage legend on the left, from 0% (blue) to 100% (red).

1/10

Product type

Laser module

Emission characteristics

Dot

Wavelength

850 nm

Power

0.4 mW

Laser category

Datasheet (PDF)

Dispatches on Mon 19 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 189.99 / piece)

€ 189.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module point

Infrared
Laser category: 1
Emission characteristics: Dot

Technical specifications

Lifetime 5000 h

Product type: Laser module

Type: DC 850-0. 4-4.5 (14x64)

Emission characteristics: Dot

Focus properties: collimated

Factory colour: Infrared

Wavelength: 850 nm

: 0.4 mW

Laser category: 1

Beam divergence: 0.4 mrad

Clearance: 50 m

Operating voltage: 4.5 V DC

Operating current: 10 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Power

Factory colour

Laser category

Wavelength

Picotronic Laser module Dot Infrared 0.4 mW DC 850-0. 4-4.5 (14x64)

Item no:1696004

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

This article

50 m

0.4 mW

Infrared

850 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

Picotronic Laser module Dot Blue 1 mW DDI 405-1-24-F (12x60)-C500

Item no:1695998

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

10 m

1 mW

Blue

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 319.00^*

Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

Item no:1695899

Dispatches on Fri 27 Nov

Conrad Electronic

10 m

1 mW

Blue

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500

Item no:1695835

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

0.5 m

0.4 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Picotronic Laser module Dot Green 0.4 mW DD532-0.4-3.16x60

Item no:1695964

Dispatches on Mon 19 Oct

2 Piece(s)Conrad Electronic

50 m

0.4 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Picotronic Laser module Dot Green 1 mW DB 520-1-3-FA (14x45) - AP QCW

Item no:1695837

Dispatches on Mon 19 Oct

6 Piece(s)Conrad Electronic

80 m

1 mW

Green

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW

Item no:1696014

Dispatches on Mon 19 Oct

1 Piece(s)Conrad Electronic

35 m

1 mW

Green

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

Item no:1695866

Dispatches on Mon 19 Oct

6 Piece(s)Conrad Electronic

50 m

1 mW

Green

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)

Item no:1696028

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

50 m

1 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (12x45)-PRO

Item no:1695931

Dispatches on Fri 27 Nov

Conrad Electronic

40 m

1 mW

Green

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Documents & Downloads

Datasheet

Datasheet 1696004 Picotronic Laser module Dot Infrared 0.4 mW DC 850-0. 4-4.5 (14x64)

User & Safety Instructions

User & Safety Instructions 1696004 Picotronic Laser module Dot Infrared 0.4 mW DC 850-0. 4-4.5 (14x64)

Information

Information 1696004 Picotronic Laser module Dot Infrared 0.4 mW DC 850-0. 4-4.5 (14x64)

Conformity certificate

Conformity certificate 1696004 Picotronic Laser module Dot Infrared 0.4 mW DC 850-0. 4-4.5 (14x64)

Scope of delivery

incl. Batteries
This text is machine translated.

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Scope of delivery

incl. Batteries
This text is machine translated.

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
