Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz
Product type
Laser module
Emission characteristics
Dot
Wavelength
830 nm
Power
0.4 mW
(Ø)
14 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 154.99 / piece)
€ 154.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Insulated Point Laser, Infrared
- Infrared
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Product type
Laser module
- Type
IMD 830-0. 4-5 (14 x 30) -10 kHz
- Emission characteristics
Dot
- Focus properties
Fixed-focus
- Factory colour
Infrared
- Wavelength
830 nm
0.4 mW

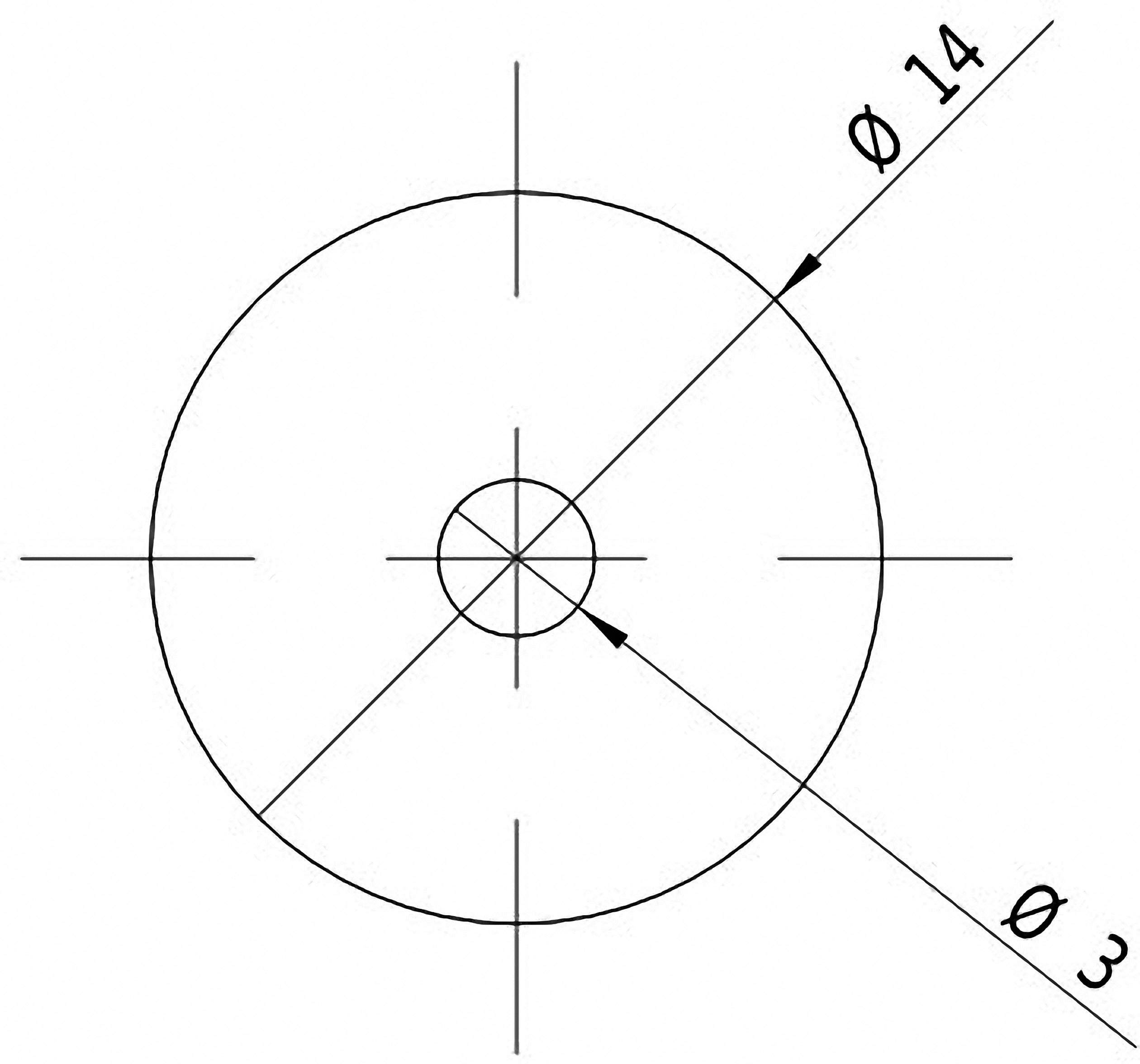

- (Ø)
14 mm
- Length
30 mm
- Laser category
1
- Beam divergence
0.5 mrad
- Clearance
10 m
- Operating voltage
5 V DC
- Operating current
15 mA
- Material
Aluminium

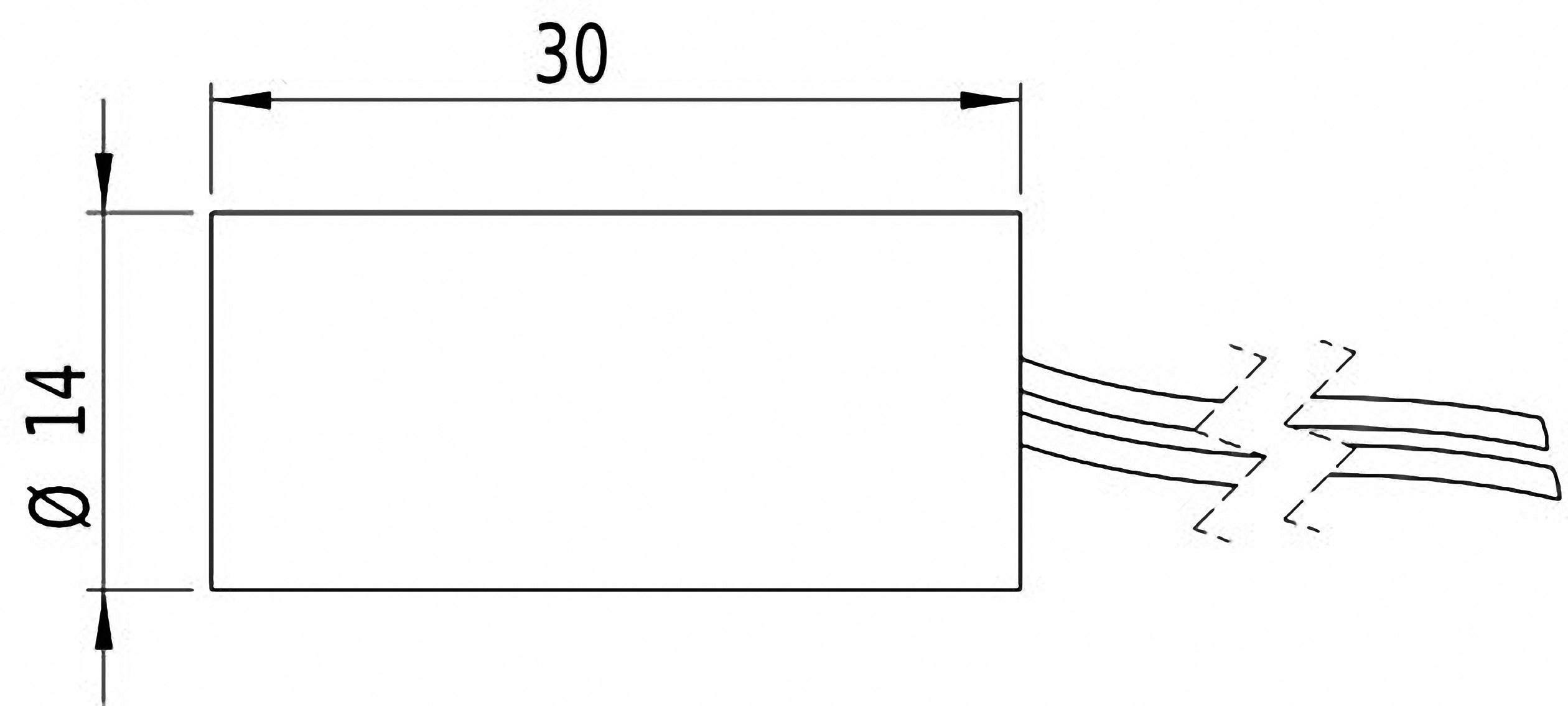

- Dim
(Ø x L) 14 mm x 30 mm
- Weight
18 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283390 Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz
User & Safety Instructions
User & Safety Instructions 1283390 Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz
Information
Information 1283390 Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz
Conformity certificate
Conformity certificate 1283390 Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
