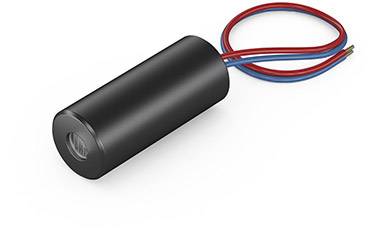

Picotronic Laser module Dot Red 0.4 mW DI 650-0. 4-3 (5 x 12)-F100
Product type
Laser module
Emission characteristics
Dot
Wavelength
650 nm
Power
0.4 mW
Laser category
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 77.99 / piece)
€ 77.99
incl. VAT
14-day return policy included
Highlights & Details
Laser module point
- Red
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
DI 650-0. 4-3 (5 x 12)-F100
- Emission characteristics
Dot
- Focus properties
100 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
0.4 mW
- Laser category
1
- Beam divergence
1.5 mrad
- Clearance
0.1 m
- Operating voltage
3 V DC
- Operating current
15 mA
- Material
Brass
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1696030 Picotronic Laser module Dot Red 0.4 mW DI 650-0. 4-3 (5 x 12)-F100
User & Safety Instructions
User & Safety Instructions 1696030 Picotronic Laser module Dot Red 0.4 mW DI 650-0. 4-3 (5 x 12)-F100
Information
Information 1696030 Picotronic Laser module Dot Red 0.4 mW DI 650-0. 4-3 (5 x 12)-F100
Conformity certificate
Conformity certificate 1696030 Picotronic Laser module Dot Red 0.4 mW DI 650-0. 4-3 (5 x 12)-F100
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
