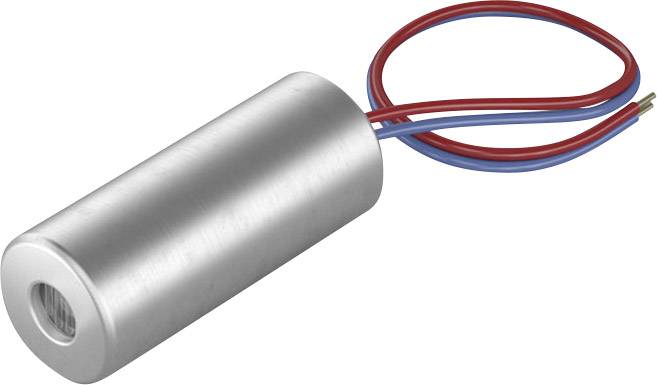

Picotronic Laser module Dot Red 0.4 mW DI650-0.4-3.5x12
Product type
Laser module
Emission characteristics
Dot
Wavelength
650 nm
Power
0.4 mW
(Ø)
5 mm
EAN:
Part number:
Item no:
Number
Total (€ 77.99 / piece)
€ 77.99
incl. VAT
14-day return policy included
Highlights & Details
Point laser, red
- Red
- Laser category: 1
- Emission characteristics: Dot
Technical specifications
- Product type
Laser module
- Type
DI650-0.4-3.5x12
- Emission characteristics
Dot
- Focus properties
5000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
0.4 mW
- (Ø)
5 mm
- Length
12 mm
- Laser category
1
- Beam divergence
1.5 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
13 mA
- Material
Brass
- Dim
(Ø x L) 5 mm x 12 mm
- Weight
2 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1283380 Picotronic Laser module Dot Red 0.4 mW DI650-0.4-3.5x12
Information
Information 1283380 Picotronic Laser module Dot Red 0.4 mW DI650-0.4-3.5x12
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
