Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) F50-AP

Cylindrical metal body with two protruding red and black cables at one end. Potentially an electronic component.
Technical drawing of a circular hole with an overall diameter of 14 mm and an internal hole diameter of 5.5 mm.
Drawing of a cylindrical sensor with two protruding wires.
Electrical component with a cylindrical housing, 14 mm in diameter, 45 mm long, with two cables at one end.

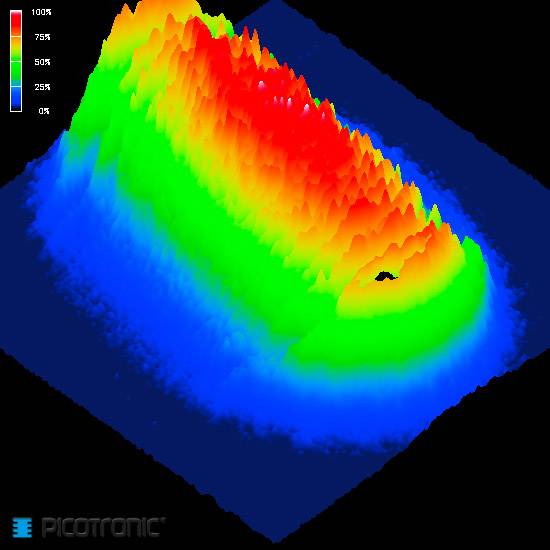

3D diagram shows data surface with colour-coded height. Colours from blue (low) to red (high) represent value percentages.

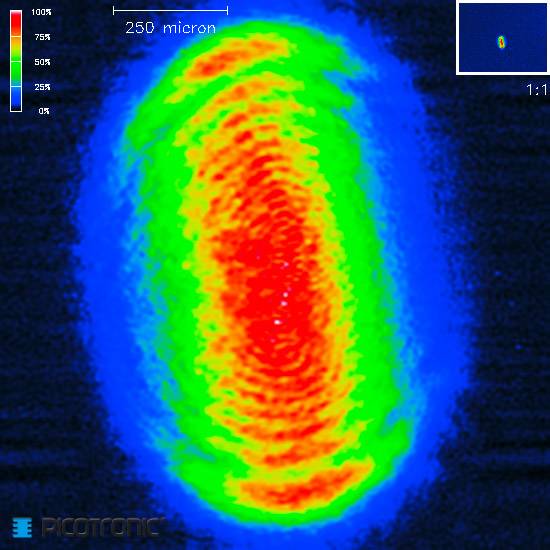

False-colour thermal image shows an oval shape in intense red tones, surrounded by cooler greens and blues, scale 250 microns.

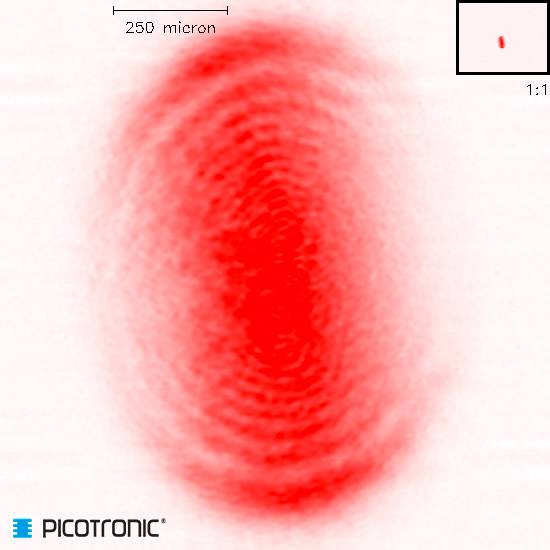

Oval shape with light and dark rings in the centre of the image. Scale in the top left shows 250 micrometres. Logo in the bottom left.

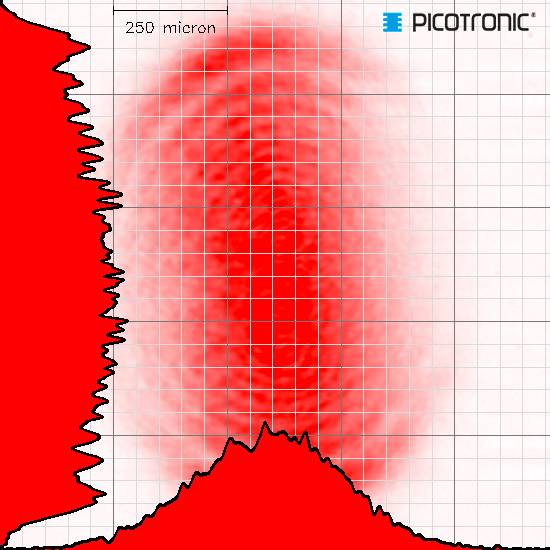

'Thermal image shows hotspot in red on grid background, centred at 250 microns. Company logo top right.'
Wireframe model of a wave-like 3D structure. Bottom left, logo with text 'Picotronic'.
1/9
Product type
Laser module
Emission characteristics
Dot
Wavelength
635 nm
Power
1 mW
Laser category
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 83.99 / piece)
€ 83.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Laser module point

  • Red
  • Laser category: 2
  • Emission characteristics: Dot
  • Warning sign with the text 'Laser Radiation, Do Not Look into the Beam, Laser Class 2, in accordance with DIN EN 60825-1:2008-05'.

Technical specifications

  • Connection cable 100 mm
Product type

Laser module

Type

DB 635-1-3-FA (14x45) F50-AP

Emission characteristics

Dot

Focus properties

50 mm fixed-focus

Factory colour

Red

Wavelength

635 nm

1 mW

Laser category

2

Beam divergence

0.3 mrad

Clearance

0.05 m

Operating voltage

3 V DC

Operating current

40 mA

Material

Aluminium

RoHS-compliant

Yes

Max. temperature

+50 °C

Min. temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 1695897 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) F50-AP

User & Safety Instructions

User & Safety Instructions 1695897 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) F50-AP

Information

Information 1695897 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) F50-AP

Conformity certificate

Conformity certificate 1695897 Picotronic Laser module Dot Red 1 mW DB 635-1-3-FA (14x45) F50-AP

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
