Name: Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (14x45)
Brand: Picotronic
SKU: 1283314
Availability: InStock

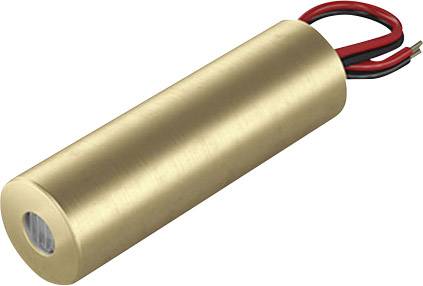

A cylindrical, bronze-coloured object with two protruding cables, presumably an electronic component.

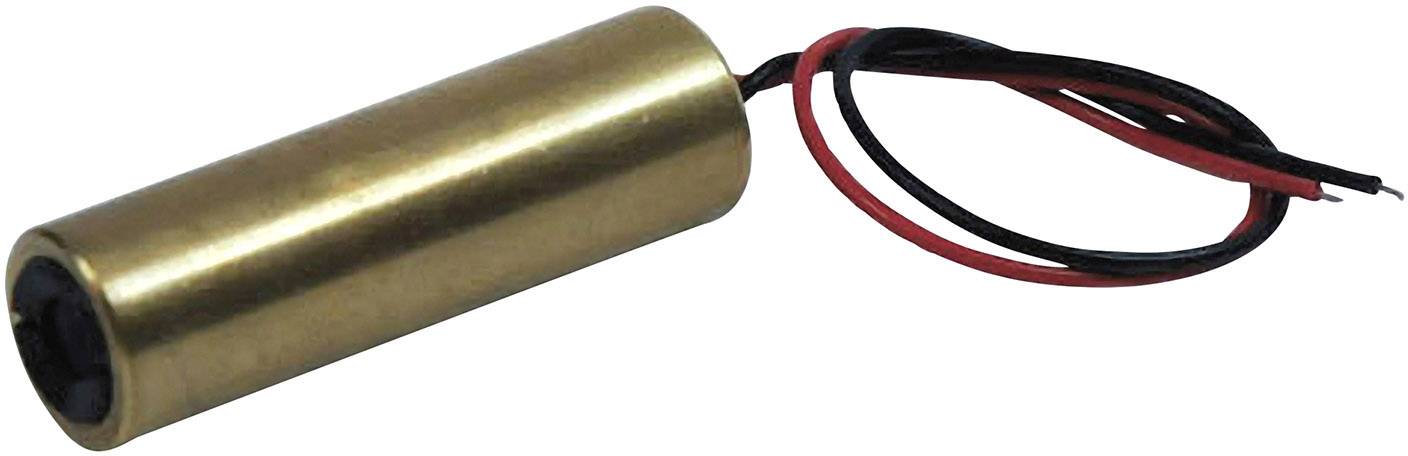

Metal cylinder with two protruding wires; one red and one black.

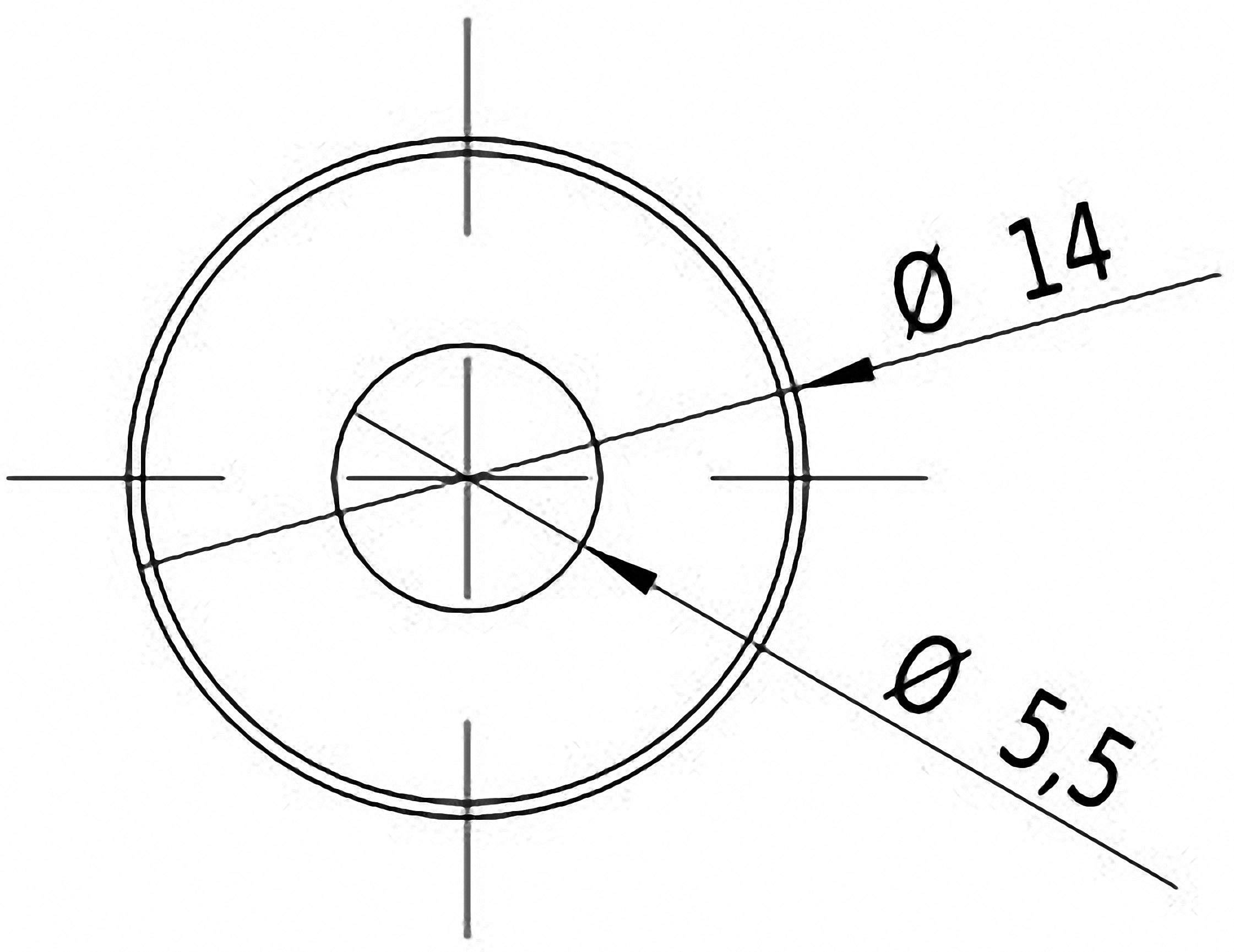

Technical drawing shows a circle with an inner circle. The outer circle has a diameter of 14 mm, the inner one 5.5 mm.

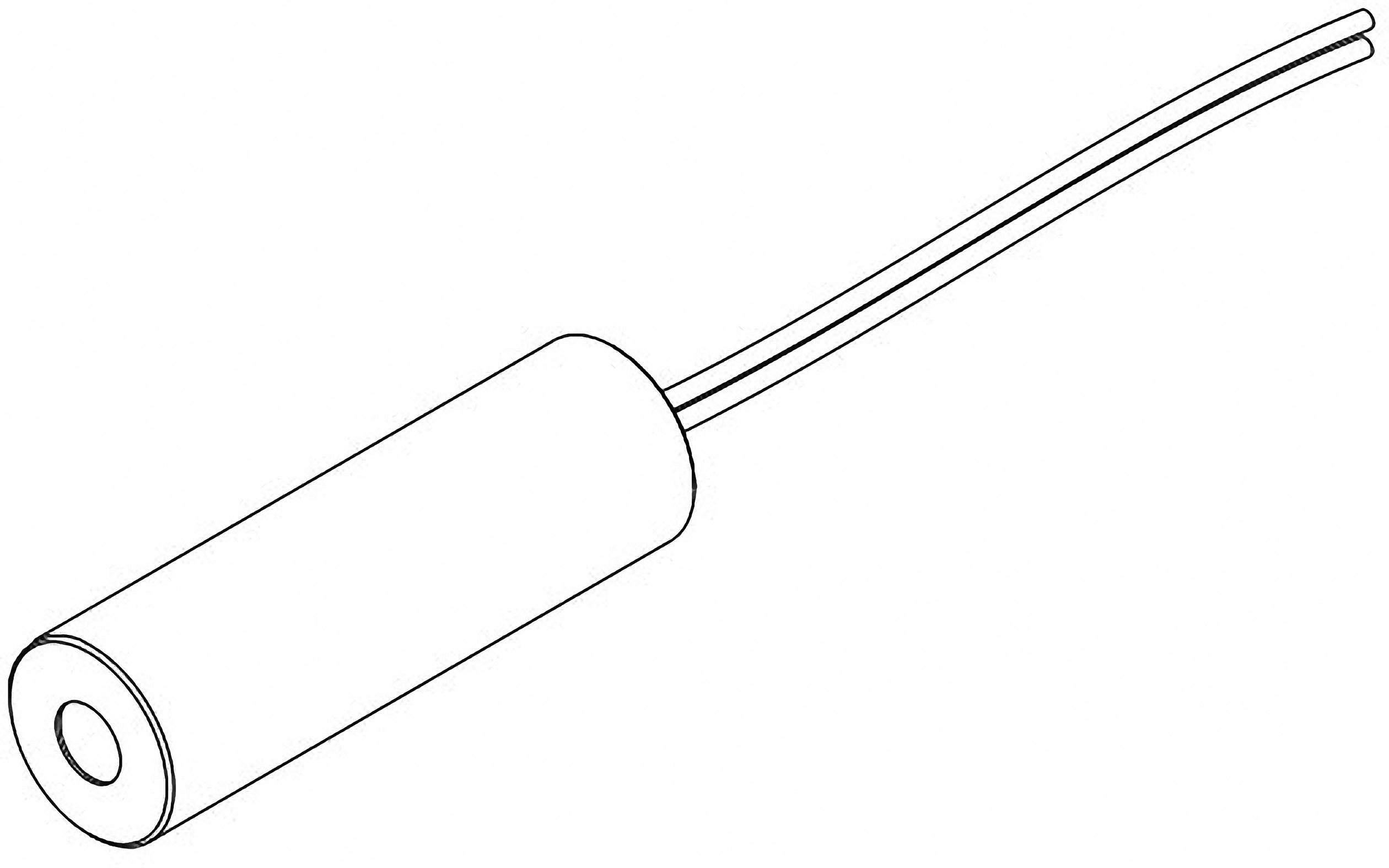

A cylindrical sensor with two cables for measuring temperature or pressure.

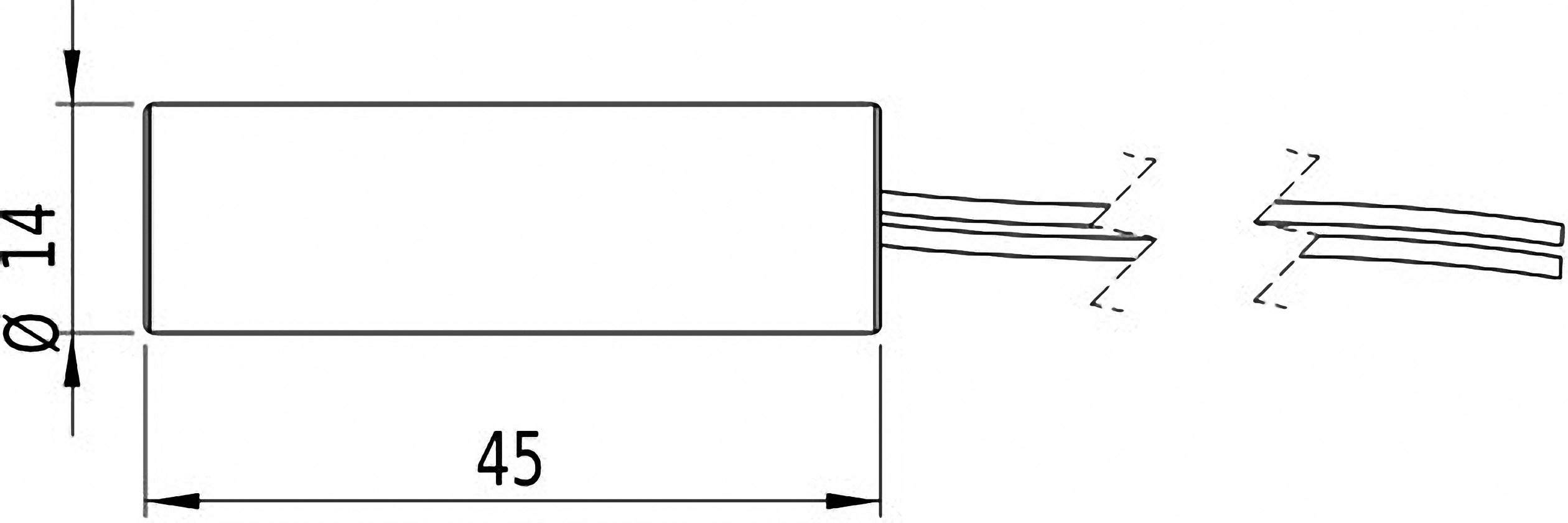

Technical drawing of a cylindrical object with a diameter of 14 mm and length of 45 mm. Two wires are connected.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

14 mm

Datasheet (PDF)

Dispatches on Mon 19 Oct

16 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DB650-1-3-FA (14x45)

Emission characteristics: Dot

Focus properties: 10 m fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 14 mm

Length: 45 mm

Laser category: 2

Beam divergence: 0.3 mrad

Clearance: 50 m

Operating voltage: 3 V DC

Operating current: 21 mA

Material: Brass

Dim: (Ø x L) 14 mm x 45 mm

Weight: 35 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Length

Power

Factory colour

(Ø)

Laser category

Wavelength

Emission characteristics

Picotronic Laser module Cross line Red 2 mW CB 635-2-24 (16x45) 10 DEG F 1000

Item no:1283337

Dispatches on Mon 19 Oct

2 Piece(s)Conrad Electronic

1 m

45 mm

2 mW

Red

16 mm

635 nm

Cross line

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Picotronic Laser module Dot Blue 1 mW DD 405-1-3 (14x45)

Item no:817948

Dispatches on Thu 22 Oct

Conrad Electronic

10 m

45 mm

1 mW

Blue

14 mm

405 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)

Item no:1283333

Dispatches on Mon 19 Oct

8 Piece(s)Conrad Electronic

50 m

60 mm

1 mW

Green

16 mm

532 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300

Item no:1283336

Dispatches on Mon 19 Oct

8 Piece(s)Conrad Electronic

100 m

60 mm

1 mW

Green

16 mm

532 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (20x80)

Item no:1283317

Dispatches on Mon 19 Oct

10 Piece(s)Conrad Electronic

50 m

80 mm

1 mW

Green

20 mm

532 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz

Item no:1283390

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

10 m

30 mm

0.4 mW

Infrared

14 mm

830 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Picotronic Laser module Dot Infrared 0.4 mW MDB 980-0. 4-5-FA (14x45)

Item no:1283326

Dispatches on Mon 19 Oct

4 Piece(s)Conrad Electronic

50 m

45 mm

0.4 mW

Infrared

14 mm

980 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

Picotronic Laser module Dot Red 0.3 mW DI 650-0. 3-5 (8 x 21)-F100

Item no:1283427

Dispatches on Fri 27 Nov

Conrad Electronic

0.1 m

21 mm

0.3 mW

Red

8 mm

650 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Picotronic Laser module Dot Red 0.4 mW DC650-0.4-3.8x25

Item no:1283349

Dispatches on Mon 19 Oct

110 Piece(s)Conrad Electronic

5 m

25 mm

0.4 mW

Red

8 mm

650 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)

Item no:1283345

Dispatches on Fri 27 Nov

Conrad Electronic

10 m

45 mm

0.4 mW

Red

12 mm

635 nm

Dot

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 1283314 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (14x45)

User & Safety Instructions

User & Safety Instructions 1283314 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (14x45)

Information

Information 1283314 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (14x45)

Conformity certificate

Conformity certificate 1283314 Picotronic Laser module Dot Red 1 mW DB650-1-3-FA (14x45)

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

More interesting products

(^*All information is plus legal VAT)

Laserfuchs Laser module Line Red 5 mW LFL 650-5-12 (9 x 20) 90

Conrad Electronic

€ 28.99^*

TRU COMPONENTS Laser module Line Red 0.39 mW

Conrad Electronic

€ 11.99^*

TRU COMPONENTS Laser module Line Red 0.39 mW

Conrad Electronic

€ 11.99^*

TRU COMPONENTS Laser module Line Red 0.39 mW

Conrad Electronic

€ 21.99^*

TRU COMPONENTS LM05GND Laser module Dot Green 5 mW

Conrad Electronic

€ 35.99^*

TRU COMPONENTS Laser module Dot Red 0.95 mW

Conrad Electronic

€ 9.99^*

TRU COMPONENTS LM01RDD-F Laser module Dot Red 0.95 mW

Conrad Electronic

€ 17.99^*

TRU COMPONENTS Laser module Dot Red 0.95 mW

Conrad Electronic

€ 12.99^*

TRU COMPONENTS LM01GND Laser module Dot Green 1 mW

Conrad Electronic

€ 37.99^*

TRU COMPONENTS LM01RDD Laser module Dot Red 1 mW

Conrad Electronic

€ 23.99^*

Laser Components Laser module Line Green 7 mW ILM 12F-L -520-7-58-F

Conrad Electronic

€ 339.00^*

Laserfuchs Laser module Line Red 5 mW LFL 635-5-6 (9 x 20) 60

Conrad Electronic

€ 35.99^*

Picotronic Laser module Line Infrared 30 mW LH 850-30-3 (16x45)-PL

Conrad Electronic

€ 389.00^*

Laserfuchs Laser module Dot Red 1 mW LFD650-1-12 (9 x 20)

Conrad Electronic

€ 17.99^*

Picotronic Laser module Dot Red 1 mW DG650-1-3 (7 x 14)-ADJ

Conrad Electronic

€ 30.99^*

Laserfuchs Laser module Cross line Red 5 mW LFC 650-5-12 (9 x 20)

Conrad Electronic

€ 30.99^*

Laserfuchs Laser module Dot Red 1 mW LFD650-1 (12x45) - NT

Conrad Electronic

€ 89.99^*

Laserfuchs Laser module Dot Red 0.4 mW LFD 650-0. 4-12 (9 x 20)

Conrad Electronic

€ 25.99^*

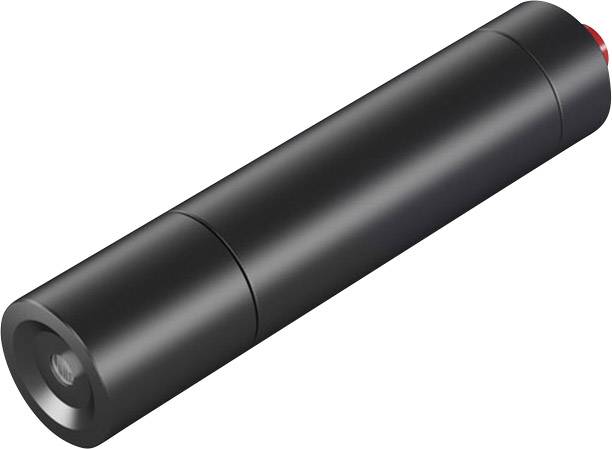

Laserfuchs Laser module Dot Red 1 mW LFD650-1-4.5 (15x68)

Conrad Electronic

€ 29.99^*

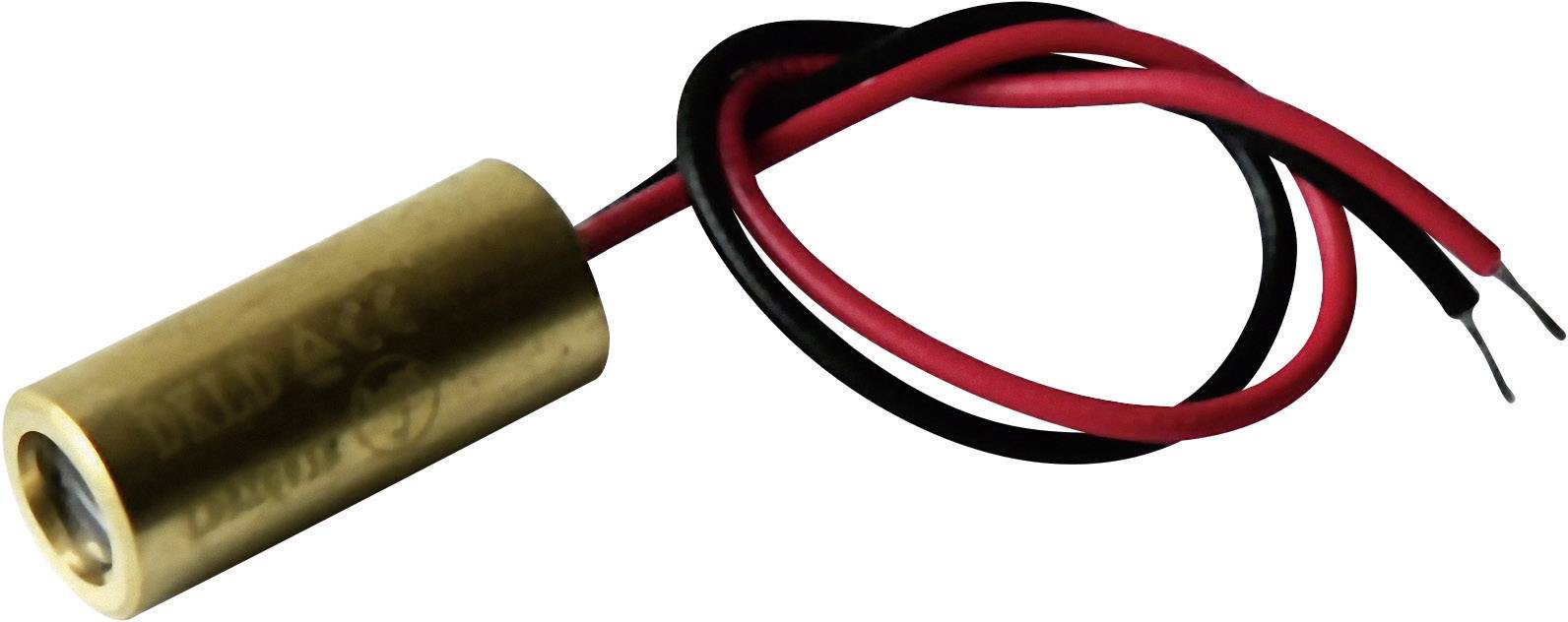

Laserfuchs Laser module Narrow Red 5 mW LFL 650-5-12 (9 x 20) 60
