Name: Picotronic Laser module Dot Red 1 mW DBI650-1-3-FA (12 x 40)-F3400
Brand: Picotronic
SKU: 1283351
Availability: InStock

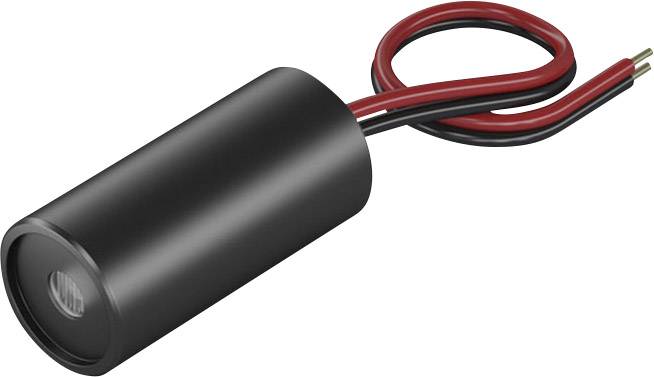

A cylindrical, black electric motor with two protruding cables, one black and one red, for electrical connection.

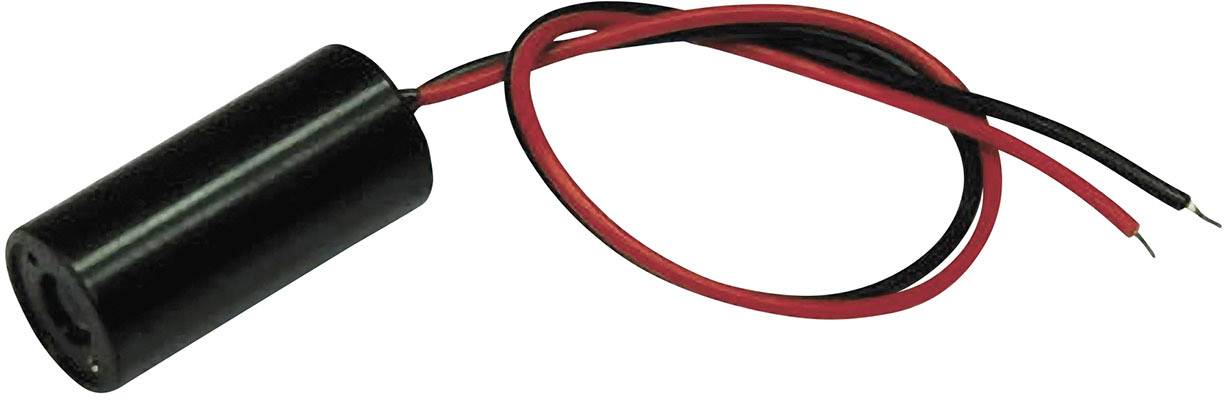

Cylindrical electromagnet with two connected cables, one red and one black, on a white background.

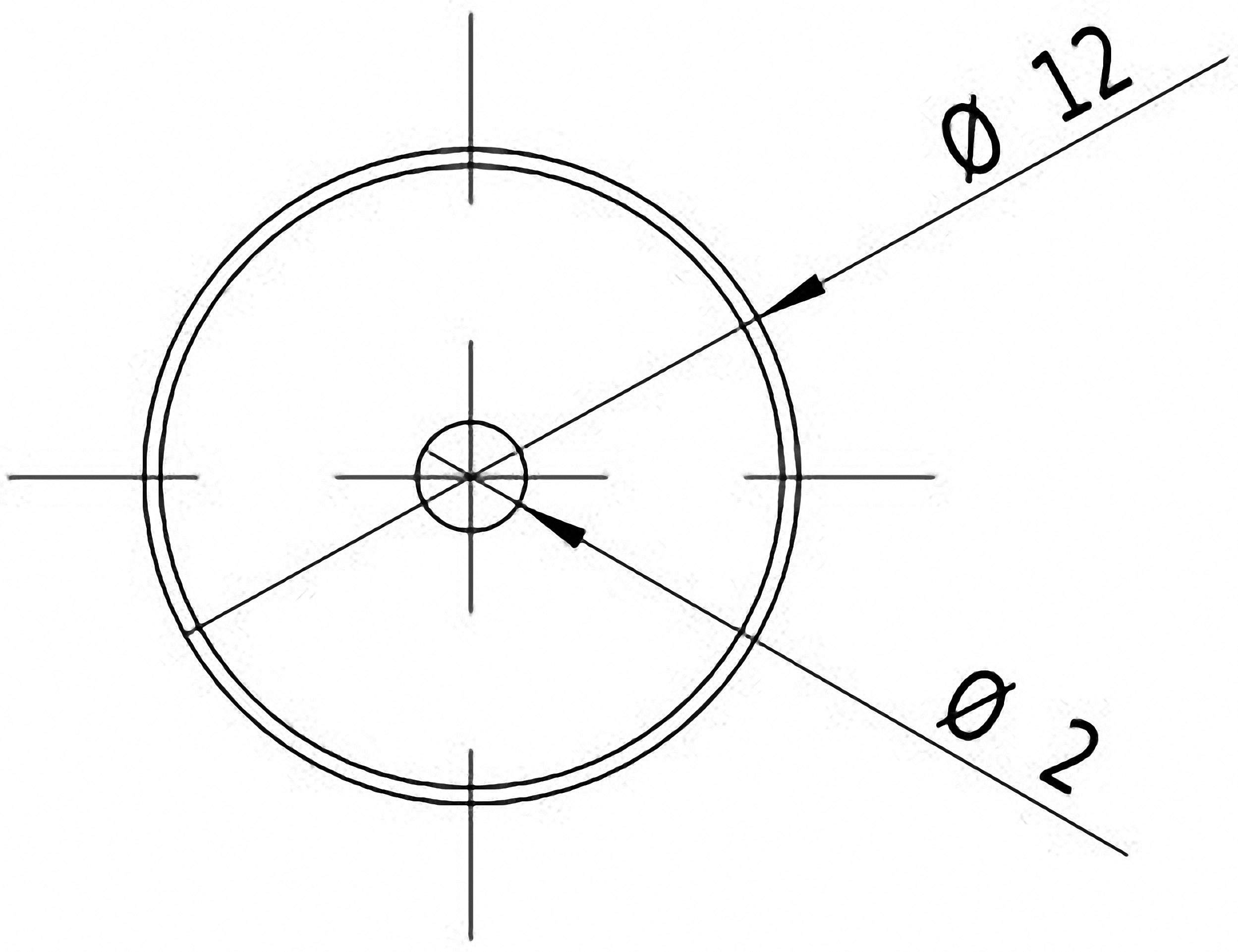

Technical drawing of a circle with two diameters: inner diameter ø 2, outer diameter ø 12.

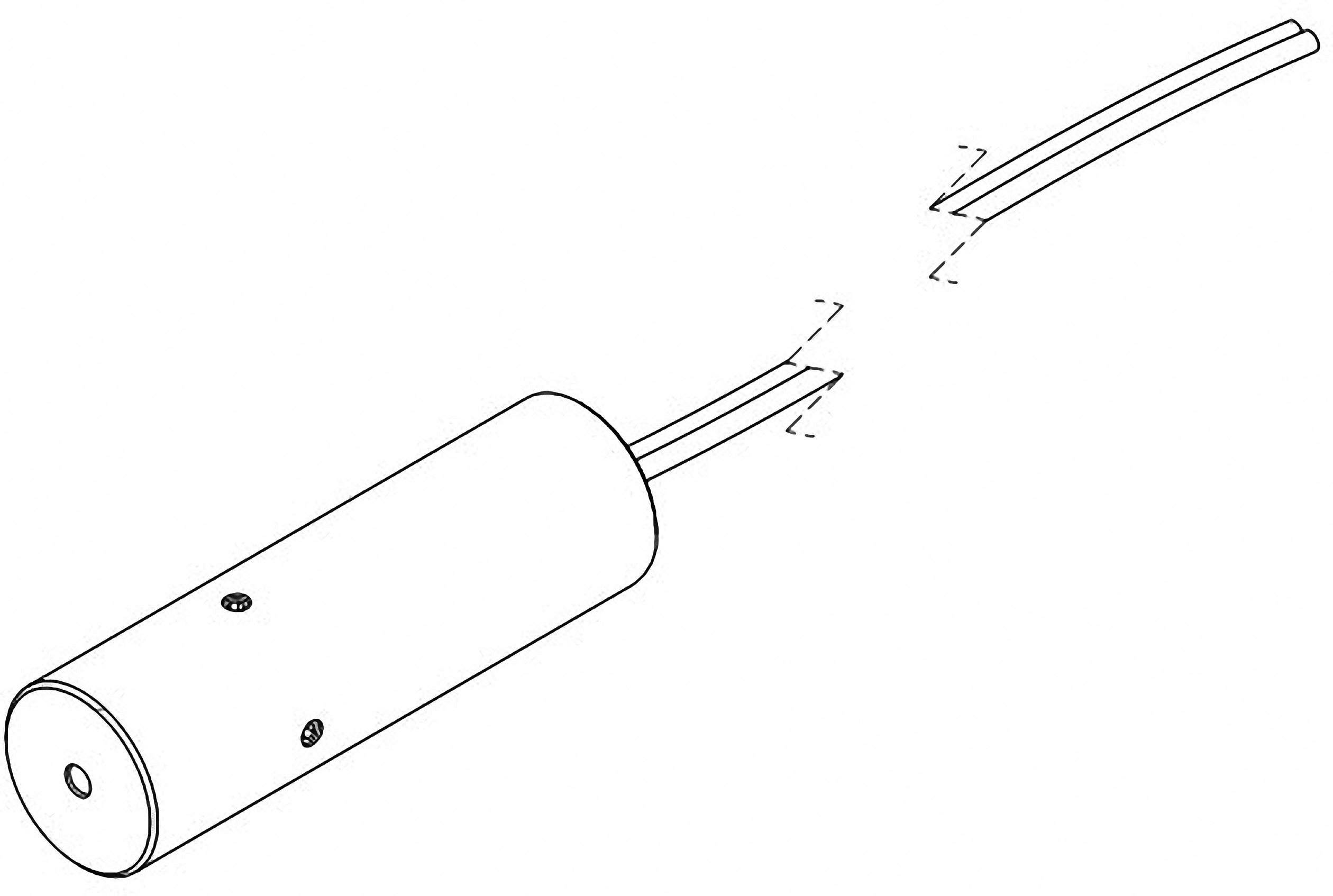

Cylindrical object with protruding cables, potentially a technical component, such as a sensor or motor.

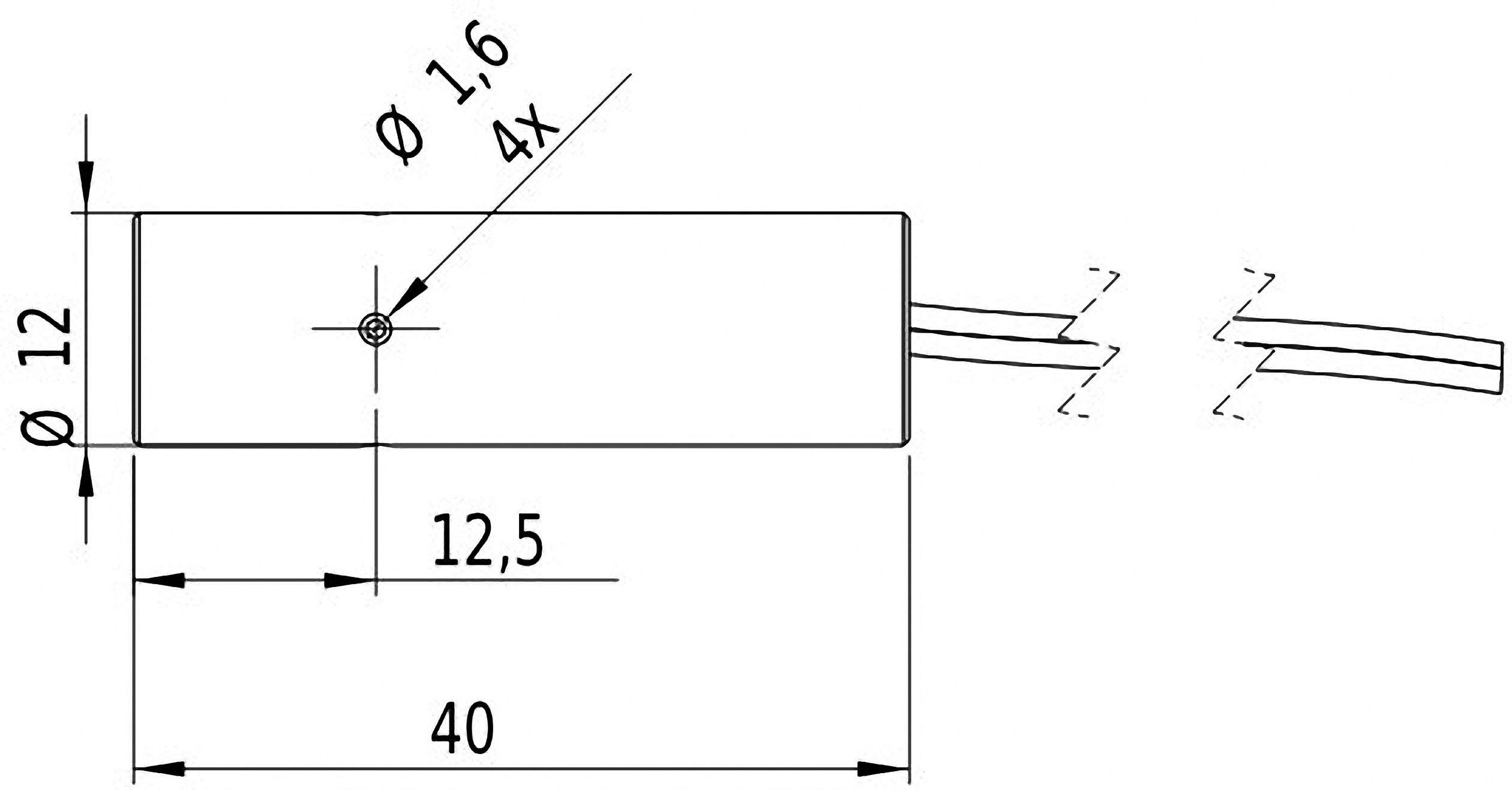

Diagram of a cylindrical object with a diameter of 12 and a length of 40. Two cables protrude. Hole diameter 1.6, present four times.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

12 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 57.99 / piece)

€ 57.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DBI650-1-3-FA (12 x 40)-F3400

Emission characteristics: Dot

Focus properties: 3400 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 12 mm

Length: 40 mm

Laser category: 2

Beam divergence: 0.3 mrad

Clearance: 3.4 m

Operating voltage: 3 V DC

Operating current: 21 mA

Material: Aluminium

Dim: (Ø x L) 12 mm x 40 mm

Weight: 10.5 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
