Name: Picotronic Laser module Dot Red 1 mW DC650-1-3 (8 x 25)-HT
Brand: Picotronic
SKU: 1695860
Availability: InStock

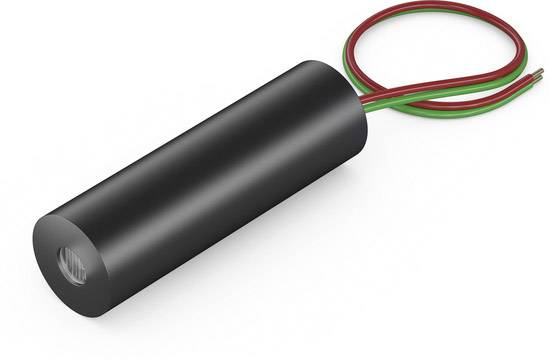

Black cylindrical sensor with two protruding wires in red and green, used for measurement or detection in electronic applications.

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

112 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Laser module point

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Connection cable 400 mm

Product type: Laser module

Type: DC650-1-3 (8 x 25)-HT

Emission characteristics: Dot

Focus properties: collimated

Factory colour: Red

Wavelength: 650 nm

: 1 mW

Laser category: 2

Beam divergence: 0.4 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 20 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +70 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Power

Clearance

Wavelength

Factory colour

Laser category

Picotronic Laser module Dot Blue 1 mW DDI 405-1-24-F (12x60)-C500

Item no:1695998

Dispatches on Tue 10 Nov

3 Piece(s)Conrad Electronic

1 mW

10 m

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 319.00^*

Picotronic Laser module Dot Blue 1 mW MDD 405-1-5 (12.7 x 40)

Item no:1695899

Dispatches on Tue 10 Nov

1 Piece(s)Conrad Electronic

1 mW

10 m

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Picotronic Laser module Dot Green 0.4 mW DD 532-0.4-24 (20 x 80)-F500

Item no:1695835

Dispatches on Tue 10 Nov

4 Piece(s)Conrad Electronic

0.4 mW

0.5 m

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Picotronic Laser module Dot Green 0.4 mW DD532-0.4-3.16x60

Item no:1695964

Dispatches on Tue 10 Nov

1 Piece(s)Conrad Electronic

0.4 mW

50 m

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Picotronic Laser module Dot Green 1 mW DB 520-1-3-FA (14x45) - AP QCW

Item no:1695837

Dispatches on Tue 10 Nov

6 Piece(s)Conrad Electronic

1 mW

80 m

520 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Picotronic Laser module Dot Green 1 mW DD 520-1-12 (12 x 40) - QCW

Item no:1696014

Dispatches on Tue 10 Nov

1 Piece(s)Conrad Electronic

1 mW

35 m

520 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Dot Green 1 mW DD 520-1-24 (12 x 40) - QCW

Item no:1695866

Dispatches on Tue 10 Nov

6 Piece(s)Conrad Electronic

1 mW

50 m

520 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-24 (20 x 80)

Item no:1696028

Dispatches on Tue 10 Nov

4 Piece(s)Conrad Electronic

1 mW

50 m

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (12x45)-PRO

Item no:1695931

Dispatches on Tue 10 Nov

13 Piece(s)Conrad Electronic

1 mW

40 m

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (20 x 80)-AP

Item no:1695996

Dispatches on Tue 10 Nov

6 Piece(s)Conrad Electronic

1 mW

50 m

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

Documents & Downloads

Datasheet

Datasheet 1695860 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8 x 25)-HT

User & Safety Instructions

User & Safety Instructions 1695860 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8 x 25)-HT

Information

Information 1695860 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8 x 25)-HT

Conformity certificate

Conformity certificate 1695860 Picotronic Laser module Dot Red 1 mW DC650-1-3 (8 x 25)-HT

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Class 2 laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
