Name: Picotronic Laser module Dot Red 1 mW DC650-1-4.5 (14 x 64)-S-AP
Brand: Picotronic
SKU: 1283435
Availability: InStock

Black cylindrical object with a ribbed end, presumably a tool or accessory part.

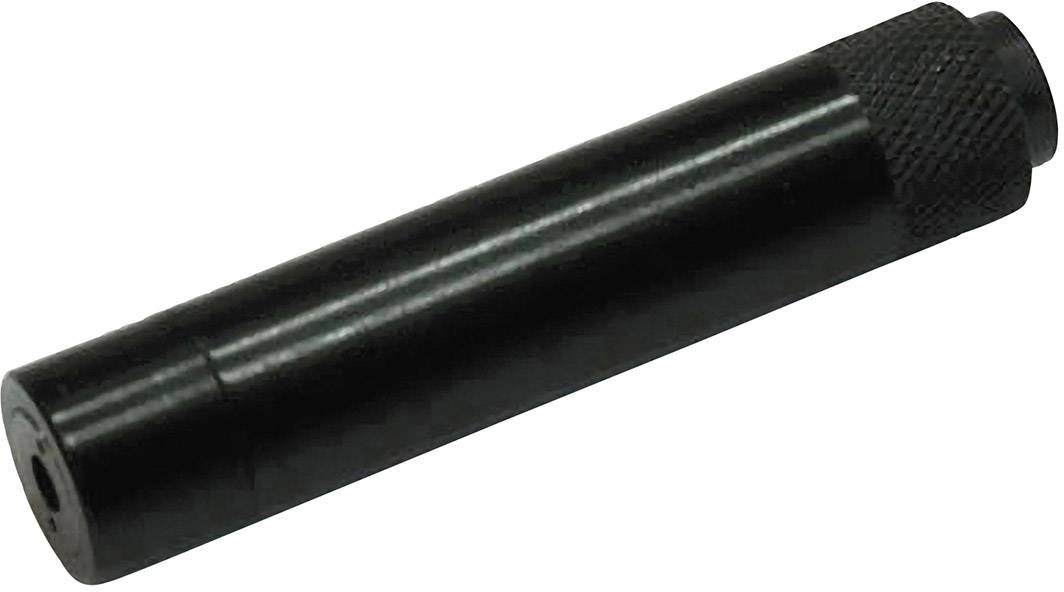

A black cylindrical metal adapter with a ridged end for improved grip.

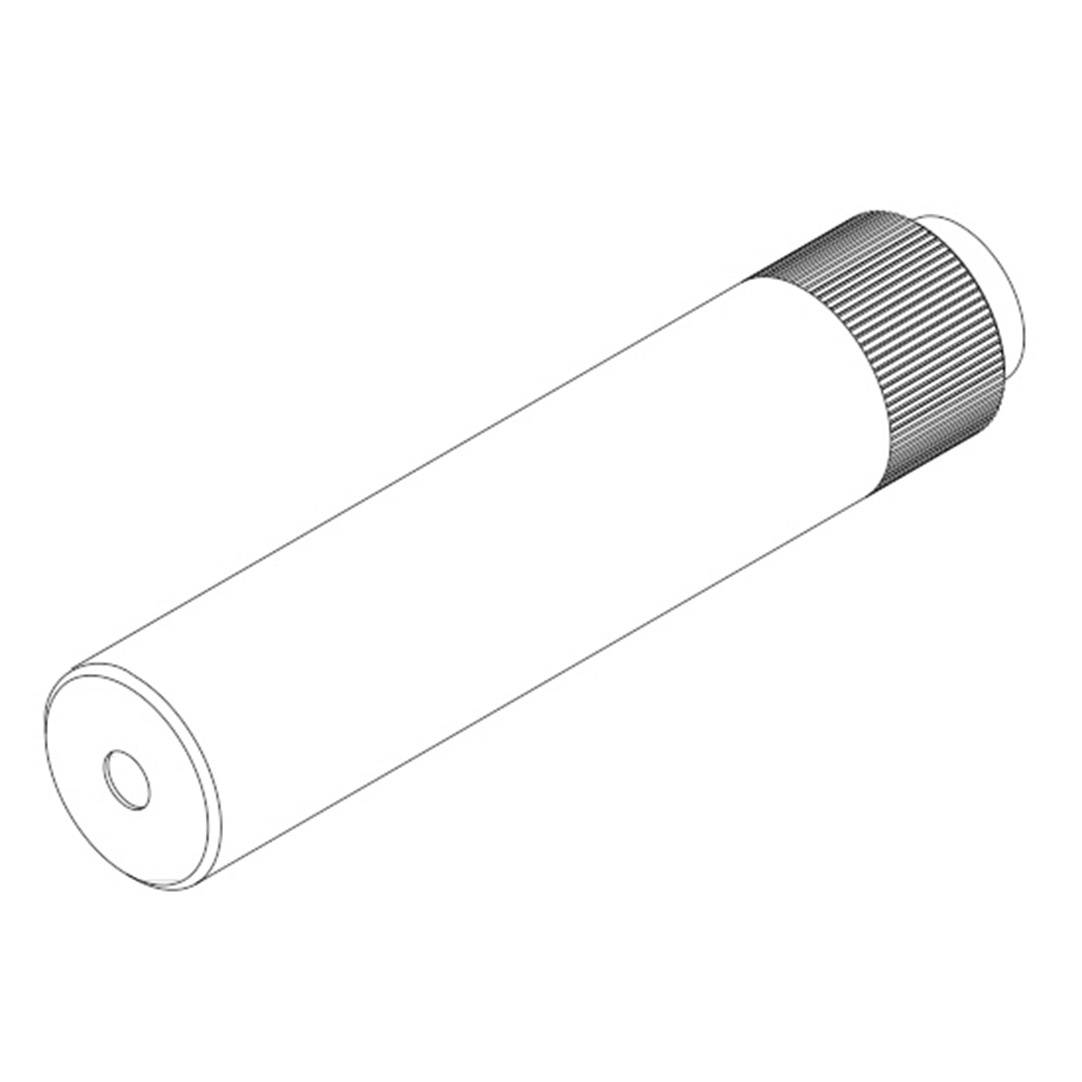

Drawing of a cylindrical silencer with a corrugated end, showing the smooth design and form of the object.

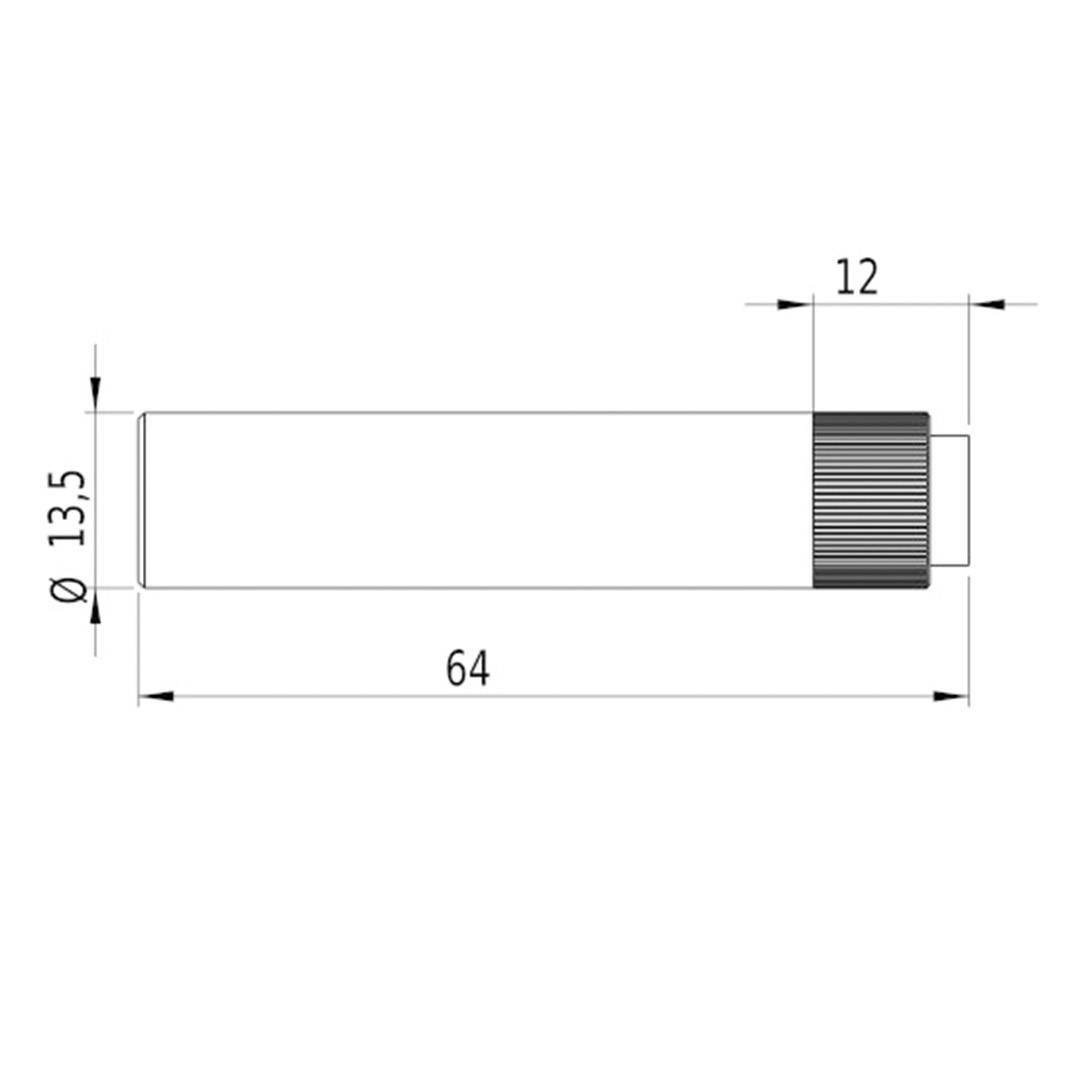

Technical drawing of a cylindrical object. Length 64, diameter 13.5. On the right, a knurled section of 12.

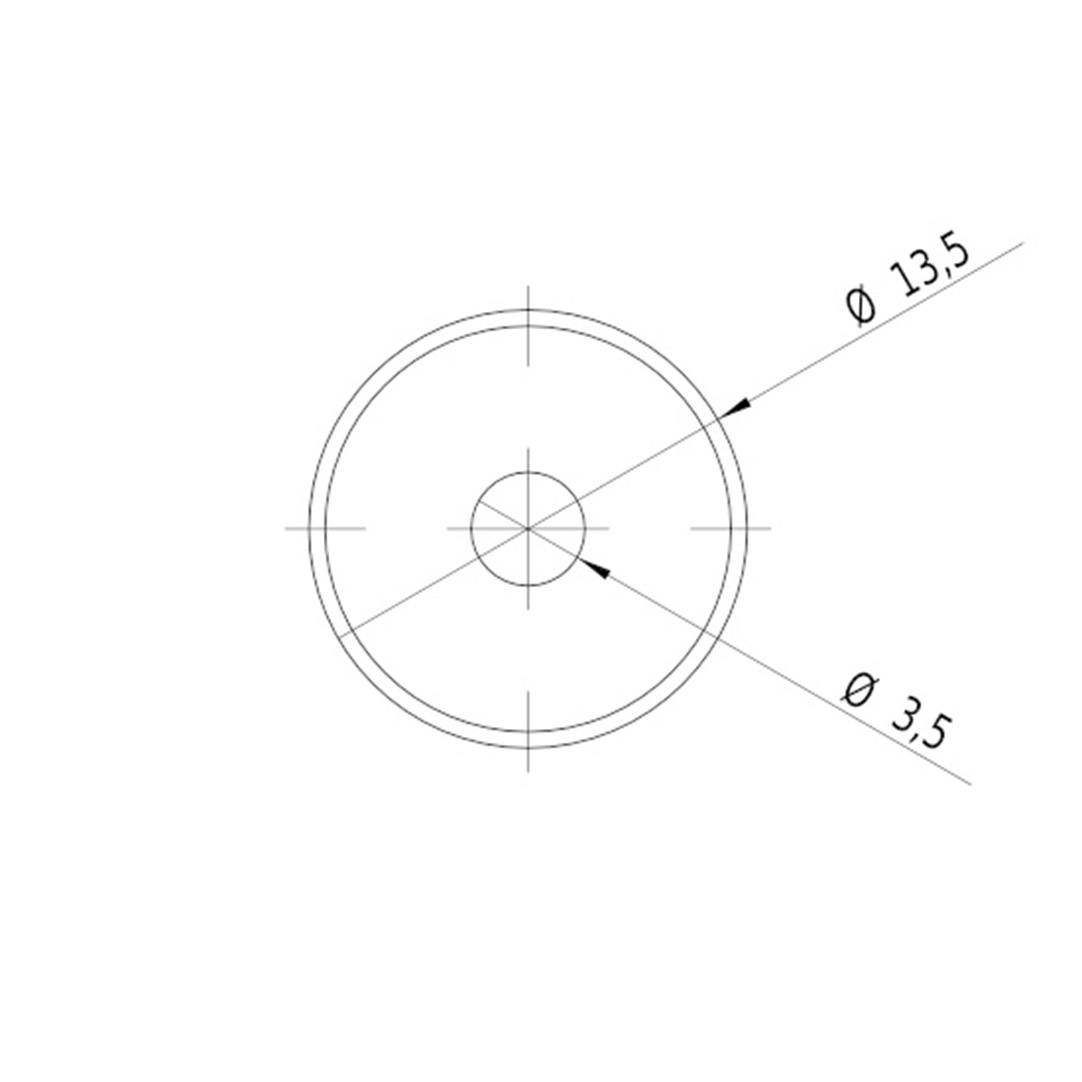

Technical drawing of a circle with two marked diameters: Ø 13.5 and Ø 3.5.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

14 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

67 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DC650-1-4.5 (14 x 64)-S-AP

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 14 mm

Length: 64 mm

Laser category: 2

Beam divergence: 0.4 mrad

Clearance: 5 m

Operating voltage: 4.5 V DC

Operating current: 20 mA

Material: Aluminium

Dim: (Ø x L) 14 mm x 64 mm

Weight: 21 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

(Ø)

Clearance

Emission characteristics

Factory colour

Laser category

Length

Power

Wavelength

Picotronic Laser module Cross line Red 2 mW CB 635-2-24 (16x45) 10 DEG F 1000

Item no:1283337

Dispatches on Mon 2 Nov

1 Piece(s)Conrad Electronic

16 mm

1 m

Cross line

Red

45 mm

2 mW

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Picotronic Laser module Dot Blue 1 mW DD 405-1-3 (14x45)

Item no:817948

Dispatches on Thu 5 Nov

Conrad Electronic

14 mm

10 m

Dot

Blue

45 mm

1 mW

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)

Item no:1283333

Dispatches on Mon 2 Nov

8 Piece(s)Conrad Electronic

16 mm

50 m

Dot

Green

60 mm

1 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (16x60)-AP-C300

Item no:1283336

Dispatches on Mon 2 Nov

8 Piece(s)Conrad Electronic

16 mm

100 m

Dot

Green

60 mm

1 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

Picotronic Laser module Dot Green 1 mW DD 532-1-3 (20x80)

Item no:1283317

Dispatches on Mon 2 Nov

10 Piece(s)Conrad Electronic

20 mm

50 m

Dot

Green

80 mm

1 mW

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Picotronic Laser module Dot Infrared 0.4 mW IMD 830-0. 4-5 (14 x 30) -10 kHz

Item no:1283390

Dispatches on Mon 2 Nov

4 Piece(s)Conrad Electronic

14 mm

10 m

Dot

Infrared

30 mm

0.4 mW

830 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Picotronic Laser module Dot Infrared 0.4 mW MDB 980-0. 4-5-FA (14x45)

Item no:1283326

Dispatches on Mon 2 Nov

4 Piece(s)Conrad Electronic

14 mm

50 m

Dot

Infrared

45 mm

0.4 mW

980 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 275.00^*

Picotronic Laser module Dot Red 0.3 mW DI 650-0. 3-5 (8 x 21)-F100

Item no:1283427

Dispatches on Mon 2 Nov

1 Piece(s)Conrad Electronic

8 mm

0.1 m

Dot

Red

21 mm

0.3 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Picotronic Laser module Dot Red 0.4 mW DC650-0.4-3.8x25

Item no:1283349

Dispatches on Mon 2 Nov

99 Piece(s)Conrad Electronic

8 mm

5 m

Dot

Red

25 mm

0.4 mW

650 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Picotronic Laser module Dot Red 0.4 mW DD 635-0.4-24 (12 x 45)

Item no:1283345

Dispatches on Mon 14 Dec

Conrad Electronic

12 mm

10 m

Dot

Red

45 mm

0.4 mW

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Documents & Downloads

Datasheet

Datasheet 1283435 Picotronic Laser module Dot Red 1 mW DC650-1-4.5 (14 x 64)-S-AP

User & Safety Instructions

User & Safety Instructions 1283435 Picotronic Laser module Dot Red 1 mW DC650-1-4.5 (14 x 64)-S-AP

Information

Information 1283435 Picotronic Laser module Dot Red 1 mW DC650-1-4.5 (14 x 64)-S-AP

Conformity certificate

Conformity certificate 1283435 Picotronic Laser module Dot Red 1 mW DC650-1-4.5 (14 x 64)-S-AP

Scope of delivery

Including batteries
This text is machine translated.

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Scope of delivery

Including batteries
This text is machine translated.

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
