Name: Picotronic Laser module Dot Red 1 mW DD 635-1-3 (12x25)
Brand: Picotronic
SKU: 1283403
Availability: InStock

Small cylindrical black sensor with two cables, red and black, suitable for electronic applications and signal transmissions.

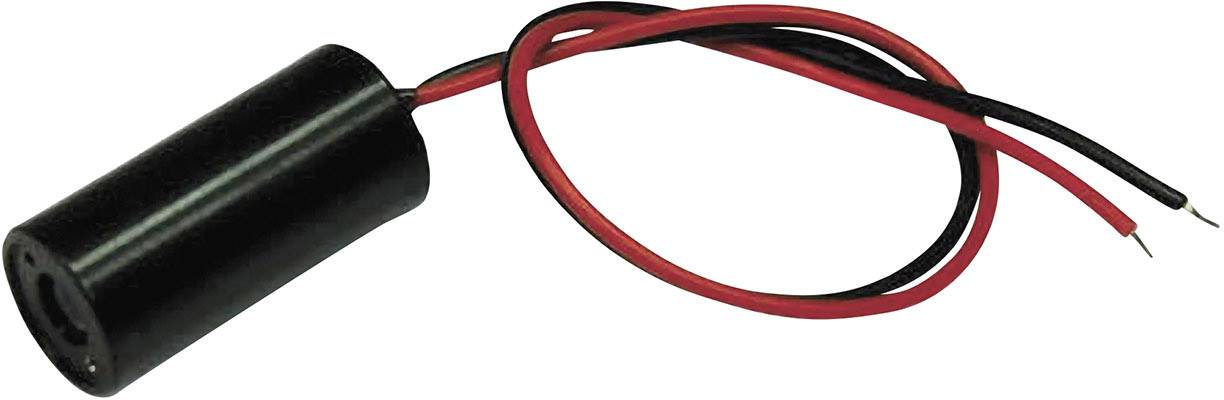

A black cylindrical sensor with two cables in red and black, which are suitable for electrical connections.

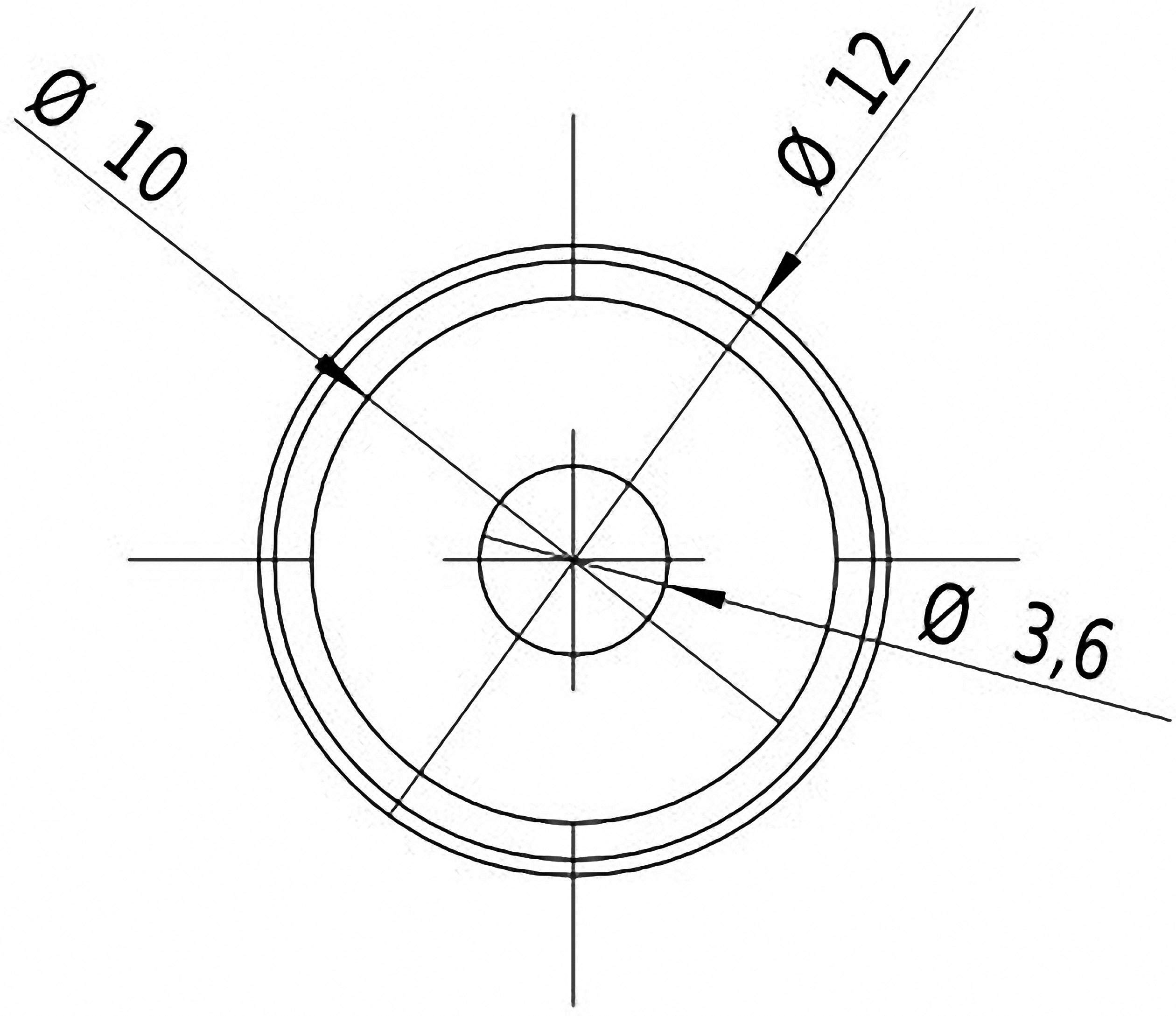

Drawing of a circle with three diameters: Ø 10, Ø 12 and Ø 3.6. Central concentric circles with markings for dimensions.

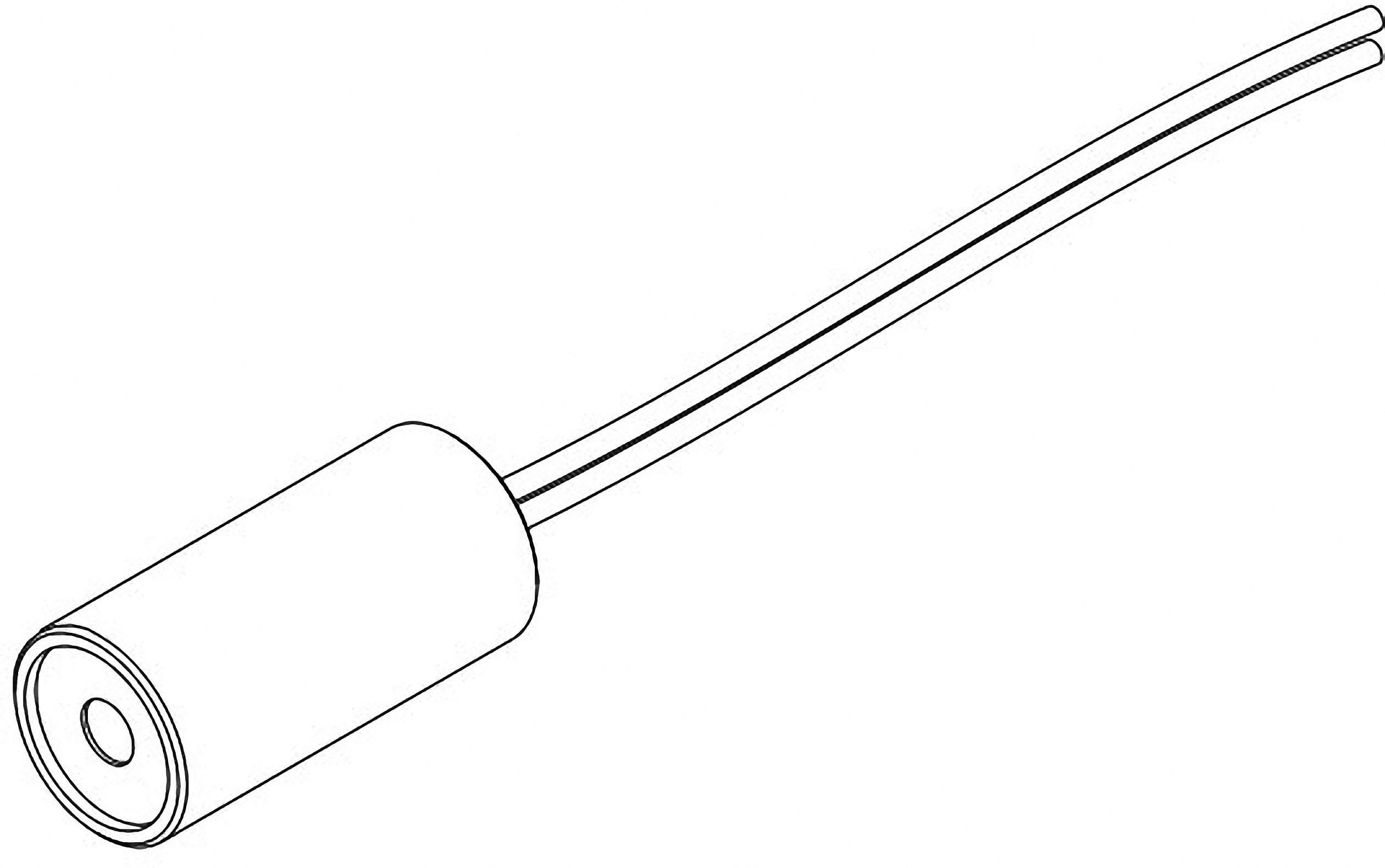

Cable with a cylindrical plug connector, with two cables emerging from one side, typically used for electronic connections.<br><br>(Note: The translation is in British English, maintaining the original technical description while using natural phrasing.)

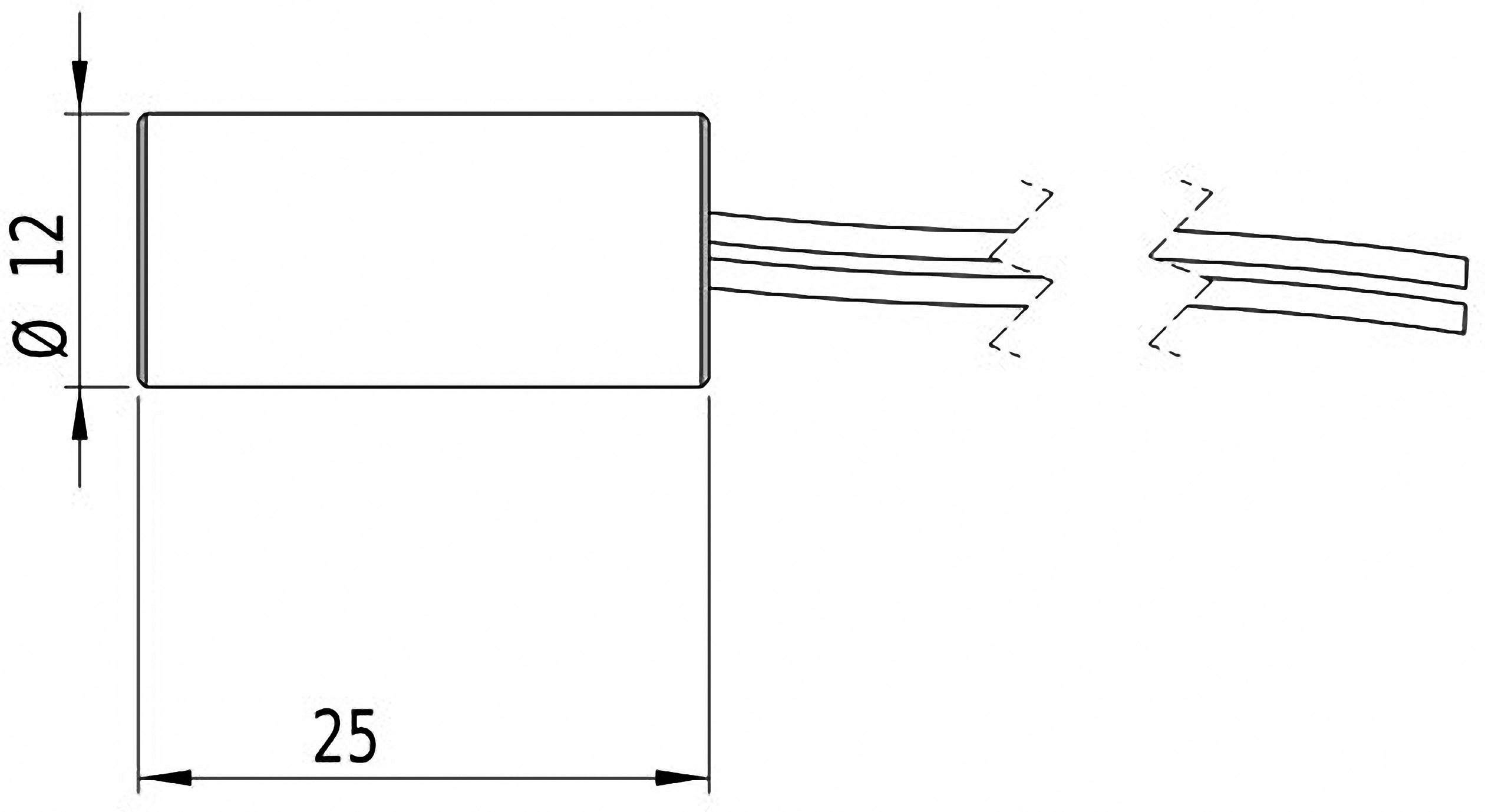

Technical drawing of a cylindrical component, 25 mm long and 12 mm in diameter, with protruding cables at both ends.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

(Ø)

12 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DD 635-1-3 (12x25)

Emission characteristics: Dot

Focus properties: 5000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 12 mm

Length: 25 mm

Laser category: 2

Beam divergence: 0.5 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 26 mA

Material: Aluminium

Dim: (Ø x L) 12 mm x 25 mm

Weight: 7 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
