Name: Picotronic Laser module Dot Red 1 mW DD 635-1-3 (12x34)
Brand: Picotronic
SKU: 1283335
Availability: InStock

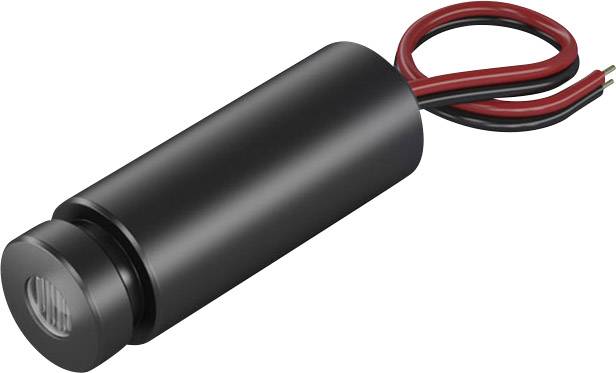

A black cylindrical electromagnetic actuator with two protruding cables, suitable for applications in electronic projects.

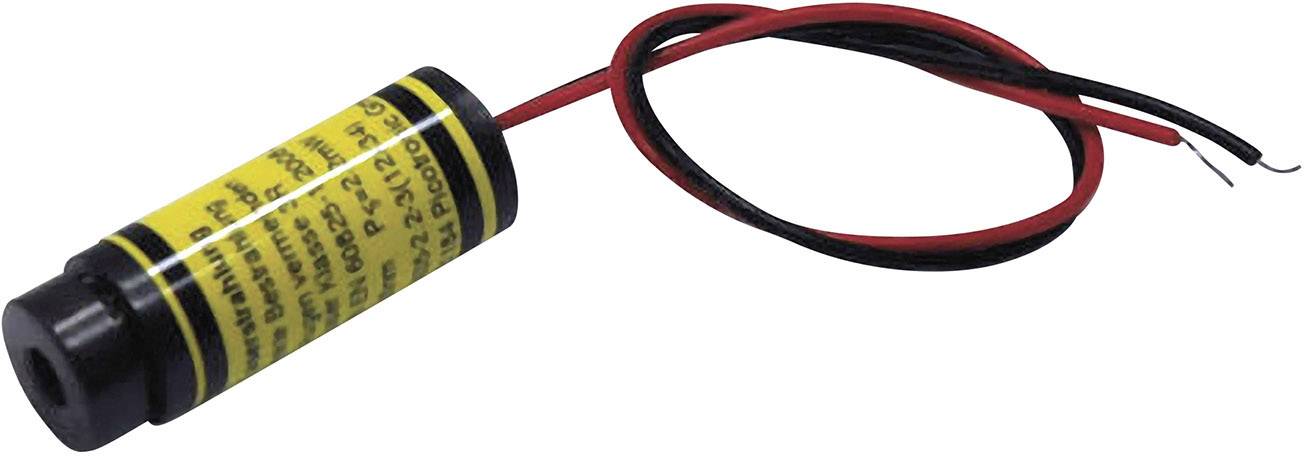

Small cylindrical laser module with yellow label, connected with two wires, one red and one black.

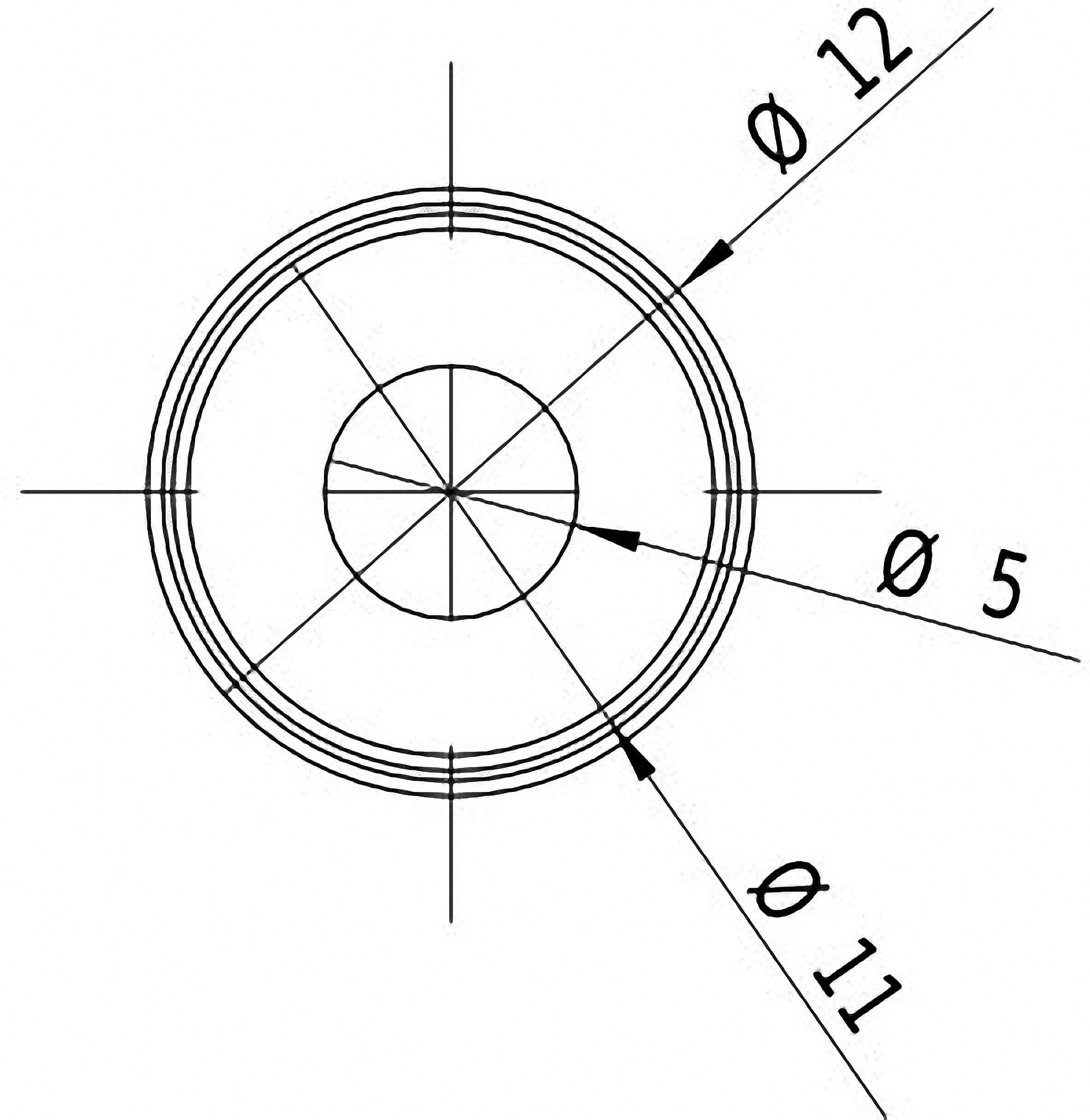

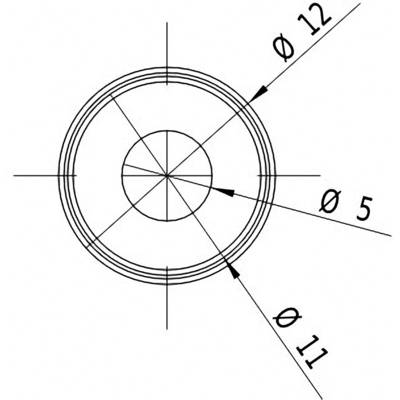

Technical drawing of a circle with three diameters: Ø 5, Ø 11 and Ø 12. Shows various concentric circle sections.

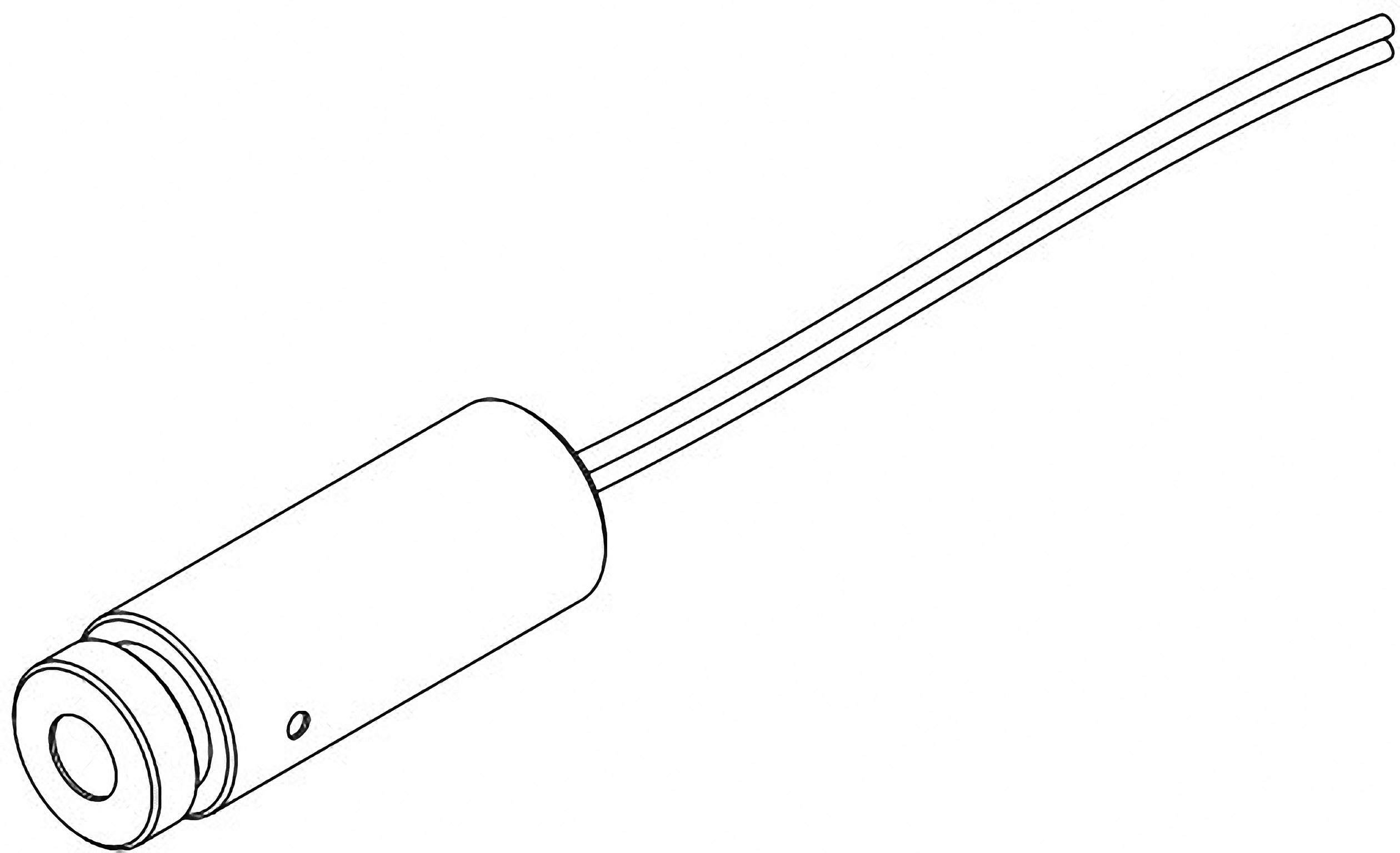

Line drawing of a cylindrical laser module with two protruding wires on the right-hand side.

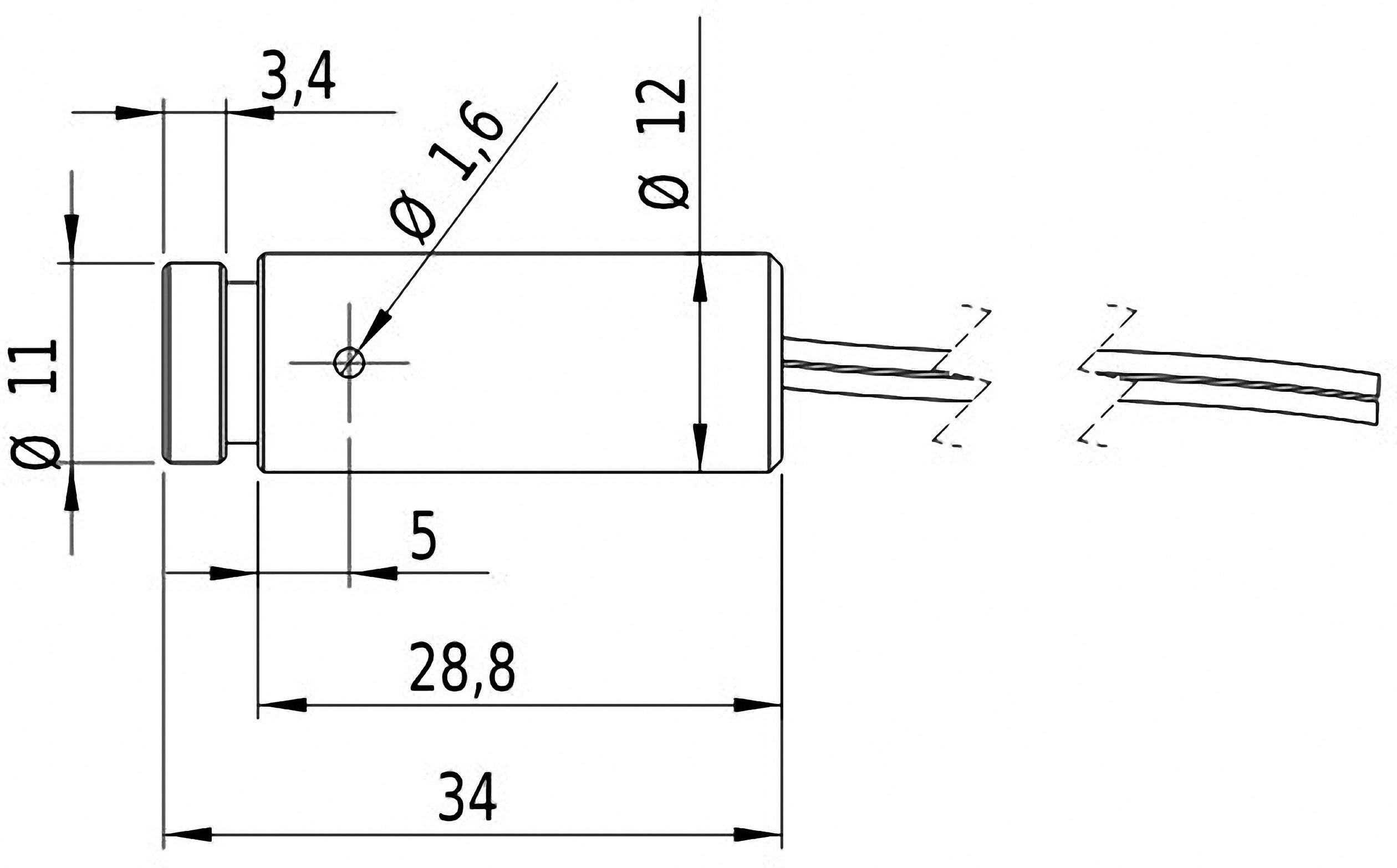

Technical drawing of a cylindrical sensor with dimensions: length 34 mm, diameter 11 mm, cable connection on one side.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

635 nm

Power

1 mW

(Ø)

12 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Product type: Laser module

Type: DD 635-1-3 (12x34)

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 12 mm

Length: 34 mm

Laser category: 2

Beam divergence: 0.5 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 25 mA

Material: Brass

Dim: (Ø x L) 12 mm x 34 mm

Weight: 17 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
