Name: Picotronic Laser module Dot Red 1 mW DI650-1-3 (8 x 21)-ADJ
Brand: Picotronic
SKU: 1283308
Availability: InStock

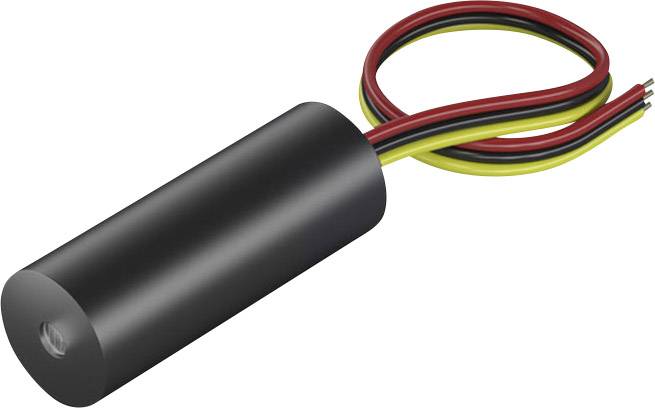

A cylindrical sensor with a black housing and three protruding cables in red, yellow and black.

A cylindrical, black piezo buzzer with two connected cables, one red and one green, which are left open-ended.

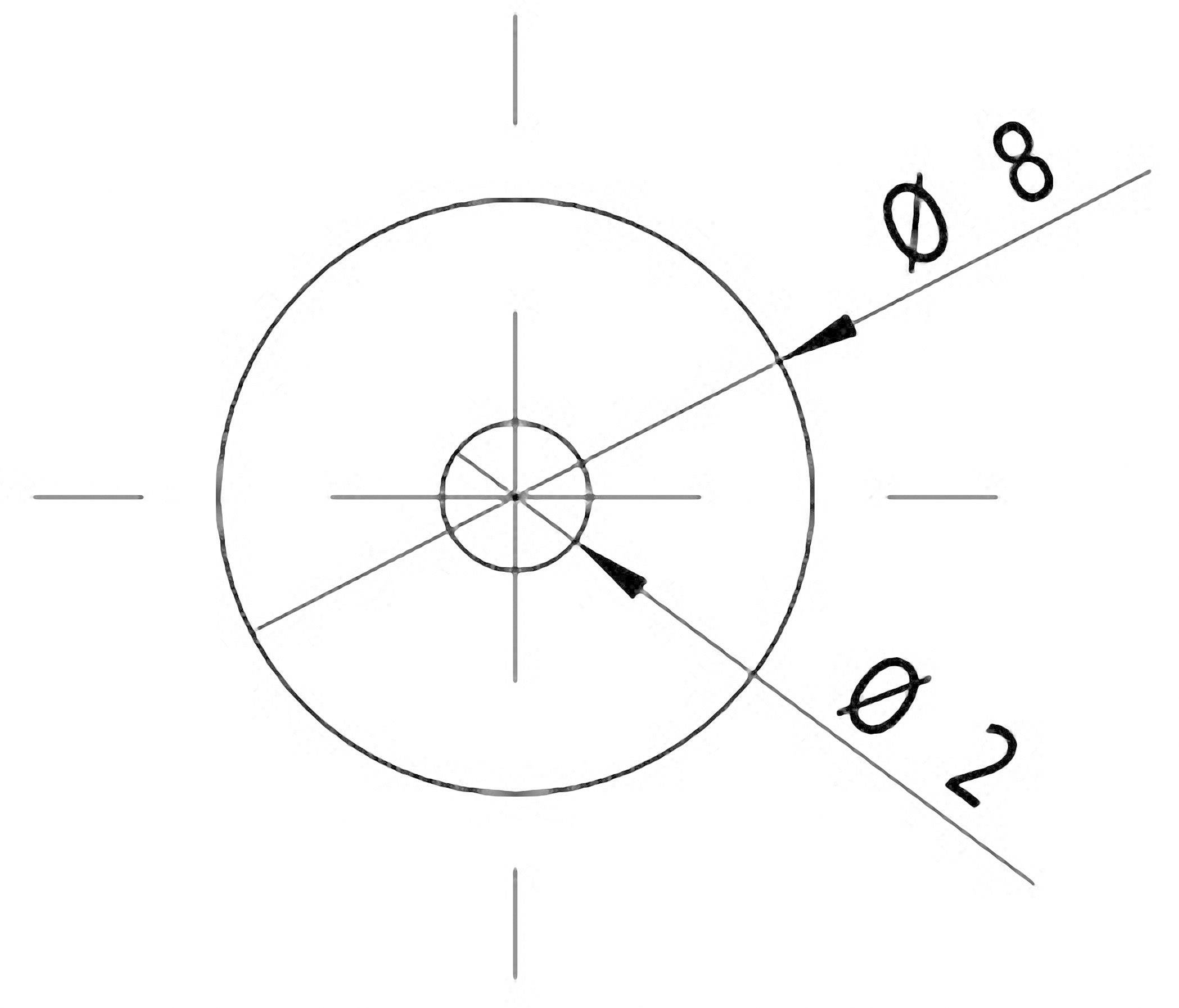

Technical drawing of a circle with two diameters, Ø8 and Ø2. Main line shows the larger circle, secondary line shows the smaller circle.

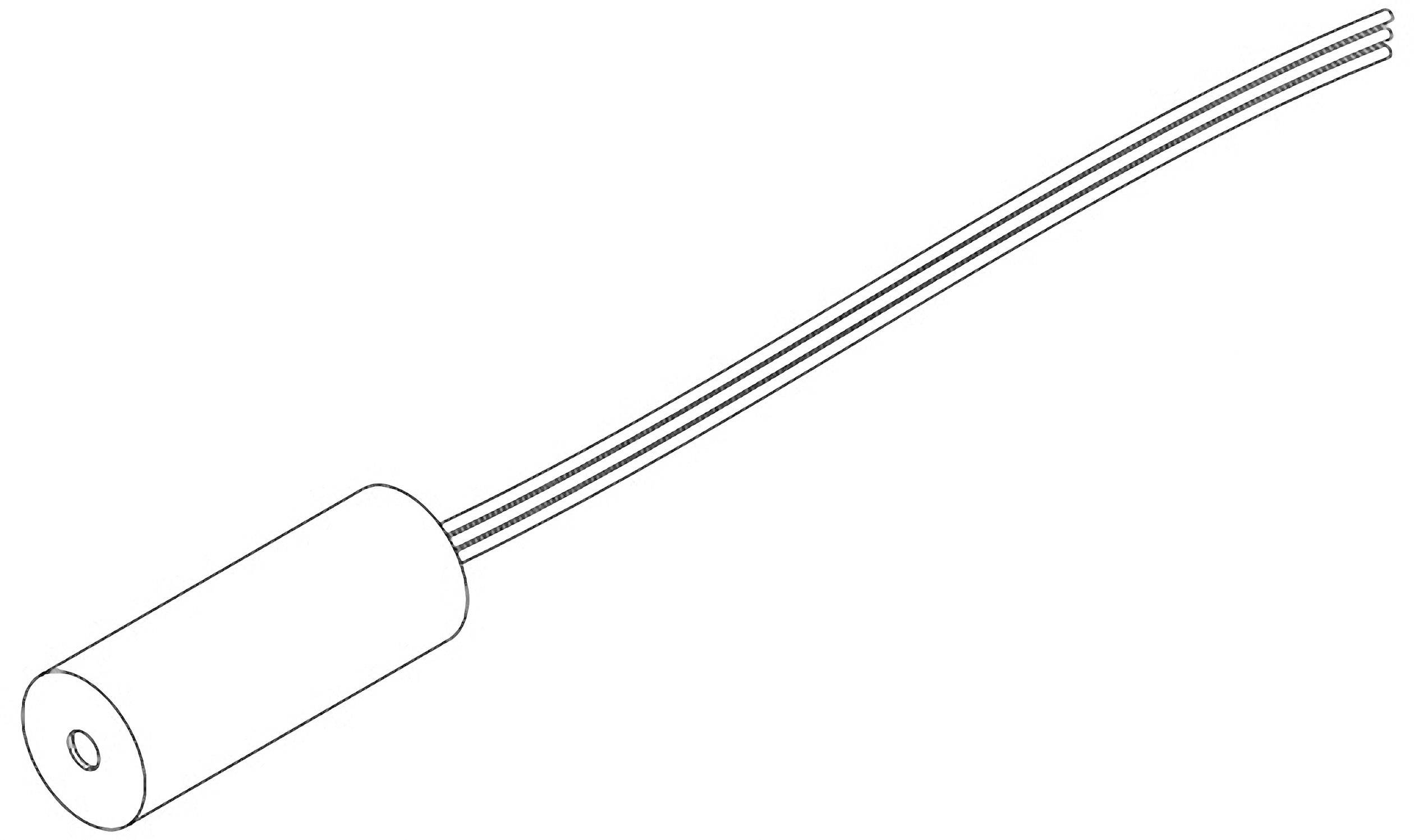

Illustration of a cylindrical electrical component with three leading cables.

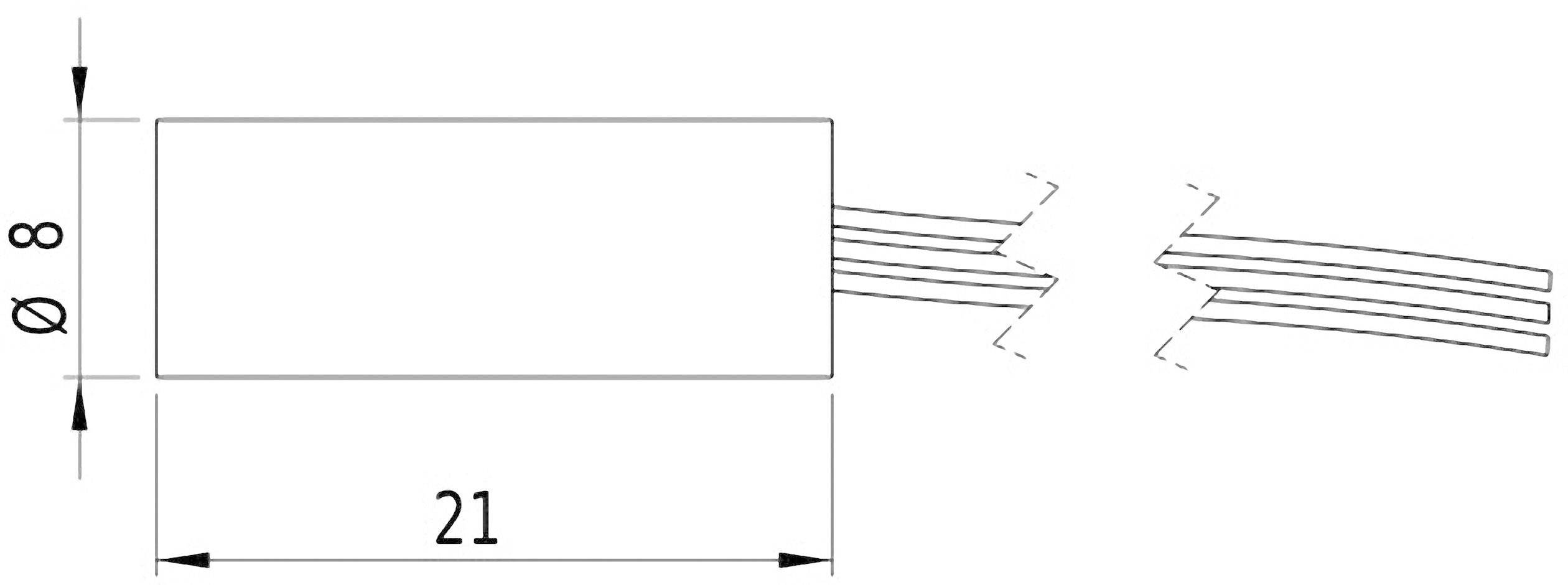

Technical drawing of a rectangular component with three wires on the right side. Dimensions: Length 21 mm, diameter 8 mm.

1/5

Product type

Laser module

Emission characteristics

Dot

Wavelength

650 nm

Power

1 mW

(Ø)

8 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

27 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 48.99 / piece)

€ 48.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated point laser, red

Red
Laser category: 2
Emission characteristics: Dot

Technical specifications

Can be focussed for 2-3 mm

Product type: Laser module

Type: DI650-1-3 (8 x 21)-ADJ

Emission characteristics: Dot

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 650 nm

: 1 mW

(Ø): 8 mm

Length: 21 mm

Laser category: 2

Beam divergence: 1.5 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 20 mA

Material: Aluminium

Dim: (Ø x L) 8 mm x 21 mm

Weight: 3.4 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C
