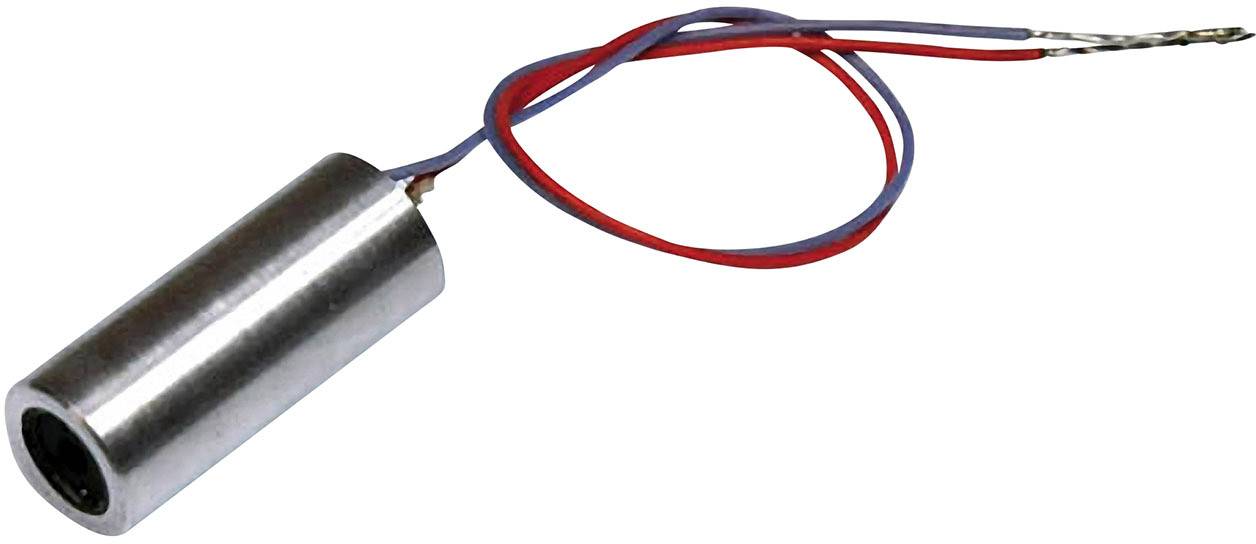

Picotronic Laser module Dot Red 1 mW DI650-1-3 (9 x 21)-F1000-AP
Product type
Laser module
Emission characteristics
Dot
Wavelength
650 nm
Power
1 mW
(Ø)
9 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 57.99 / piece)
€ 57.99
incl. VAT
14-day return policy included
Highlights & Details
Point laser, red
- Red
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Product type
Laser module
- Type
DI650-1-3 (9 x 21)-F1000-AP
- Emission characteristics
Dot
- Focus properties
1000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
1 mW

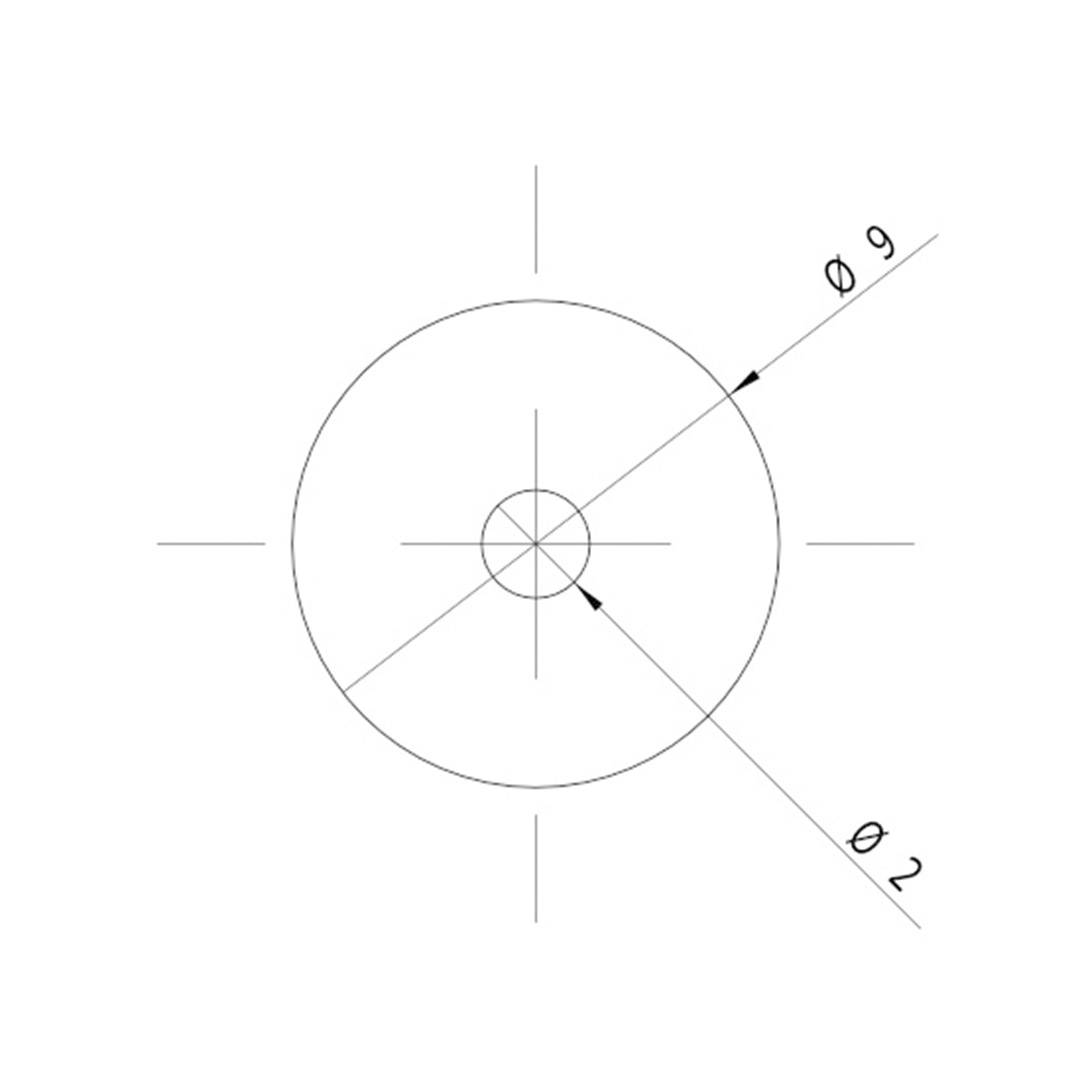

- (Ø)
9 mm
- Length
21 mm
- Laser category
2
- Beam divergence
1.5 mrad
- Clearance
1 m
- Operating voltage
3 V DC
- Operating current
20 mA
- Material
Aluminium
- Dim
(Ø x L) 9 mm x 21 mm
- Weight
3.5 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283378 Picotronic Laser module Dot Red 1 mW DI650-1-3 (9 x 21)-F1000-AP
User & Safety Instructions
User & Safety Instructions 1283378 Picotronic Laser module Dot Red 1 mW DI650-1-3 (9 x 21)-F1000-AP
Information
Information 1283378 Picotronic Laser module Dot Red 1 mW DI650-1-3 (9 x 21)-F1000-AP
Conformity certificate
Conformity certificate 1283378 Picotronic Laser module Dot Red 1 mW DI650-1-3 (9 x 21)-F1000-AP
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
