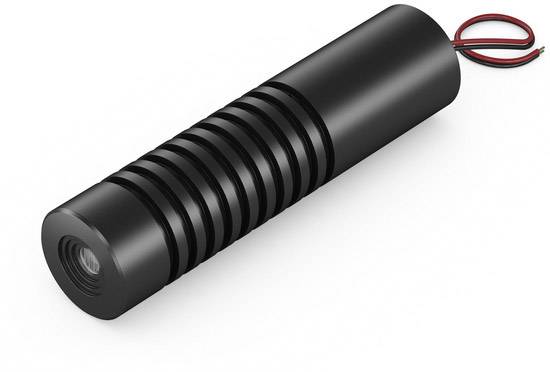

A black, cylindrical laser with grooved rings and two wires protruding from one end.

A black, cylindrical laser with grooved rings and two wires protruding from one end.

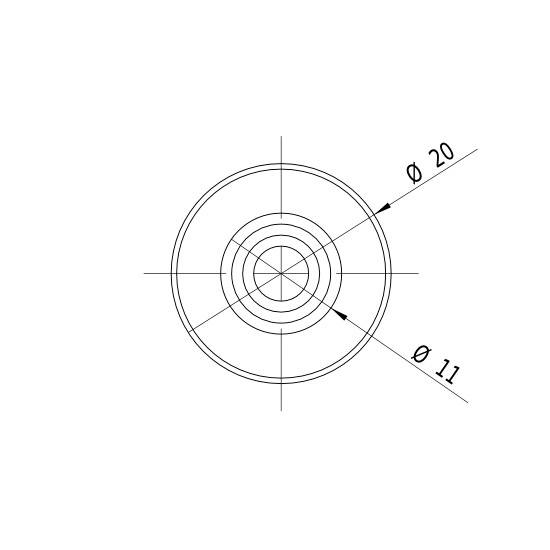

Technical drawing of a circle with two diameter specifications: outer circle Ø 20, inner circle Ø 11, centred.

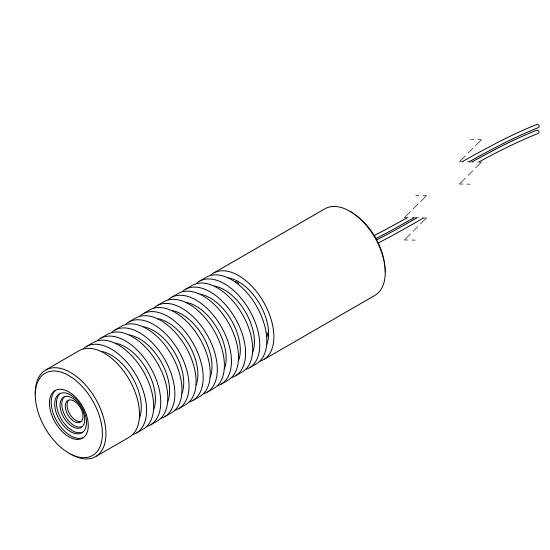

Diagram of a cylindrical microphone with a spiral cable at the end, showing connection points and internal design.

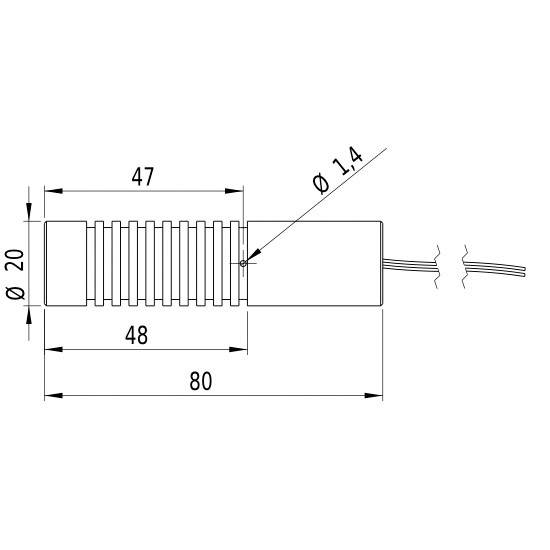

Technical drawing of a cylindrical component with grooves, Ø 20 mm, length 80 mm, bore Ø 1.4 mm, dimensions in mm.

1/4

Picotronic

Datasheet (PDF)

English

Dispatches on Wed, 16 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 284.87 / piece)

€ 284.87

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 1M
Emission characteristics: Line

Technical specifications

Connection cable 1000 mm

Type: LD 532-10-5 (20 x 80) 110 deg C1000

Emission characteristics: Line

Focus properties: 3000 mm fixed-focus

Factory colour: Green

Wavelength: 532 nm

: 10 mW

Laser category: 1M

Angular aperture: 110°

Beam divergence: 0.5 mrad

Clearance: 3 m

Operating voltage: 5 V DC

Operating current: 150 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +30 °C

Min. temperature: -15 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695940 Picotronic Laser module Line Green 10 mW LD 532-10-5 (20 x 80) 110 deg C1000

User & Safety Instructions

European union

User & Safety Instructions 1695940 Picotronic Laser module Line Green 10 mW LD 532-10-5 (20 x 80) 110 deg C1000

Information

European union

Information 1695940 Picotronic Laser module Line Green 10 mW LD 532-10-5 (20 x 80) 110 deg C1000

Conformity certificate

Conformity certificate 1695940 Picotronic Laser module Line Green 10 mW LD 532-10-5 (20 x 80) 110 deg C1000

Description

Hints

Class 1M: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
