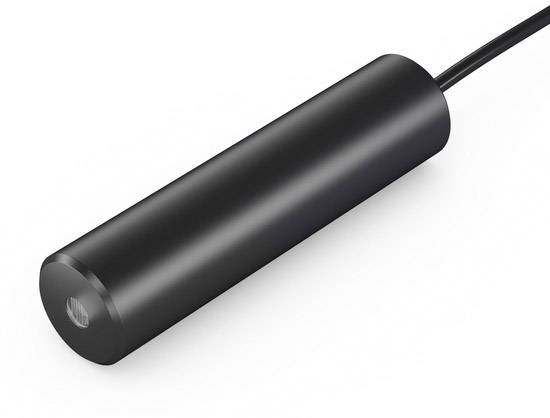

Picotronic Laser module Line Green 10 mW LH 520-10-24 (20 x 80)-PL-F500-WP
Product type
Laser module
Emission characteristics
Line
Wavelength
520 nm
Power
10 mW
Laser category
1M
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 955.00 / piece)
€ 955.00
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Laser module line
- Green
- Laser category: 1M
- Emission characteristics: Line
Technical specifications
- Connection cable 3000 mm
- Product type
Laser module
- Type
LH 520-10-24 (20 x 80)-PL-F500-WP
- Emission characteristics
Line
- Focus properties
500 m fixed-focus
- Factory colour
Green
- Wavelength
520 nm
10 mW
- Laser category
1M
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
0.5 m
- Operating voltage
24 V DC
- Operating current
45 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+60 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1696019 Picotronic Laser module Line Green 10 mW LH 520-10-24 (20 x 80)-PL-F500-WP
User & Safety Instructions
User & Safety Instructions 1696019 Picotronic Laser module Line Green 10 mW LH 520-10-24 (20 x 80)-PL-F500-WP
Information
Information 1696019 Picotronic Laser module Line Green 10 mW LH 520-10-24 (20 x 80)-PL-F500-WP
Conformity certificate
Conformity certificate 1696019 Picotronic Laser module Line Green 10 mW LH 520-10-24 (20 x 80)-PL-F500-WP
Description
Hints
Class 1M: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
