Name: Picotronic Laser module Line Green 10 mW MLD 532-10-5 (20x80)
Brand: Picotronic
SKU: 1695896
Availability: InStock

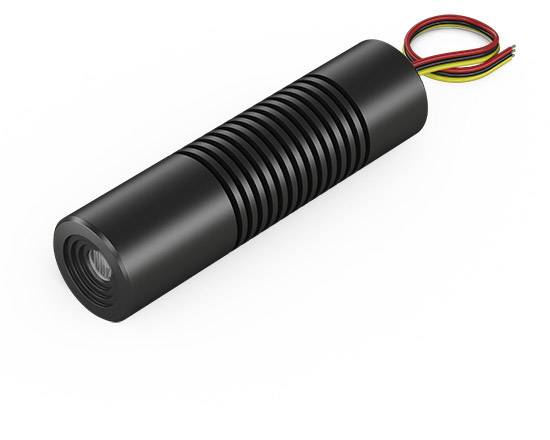

A long, black cylindrical laser with a ribbed handle and coloured cables at the end, suitable for industrial applications.

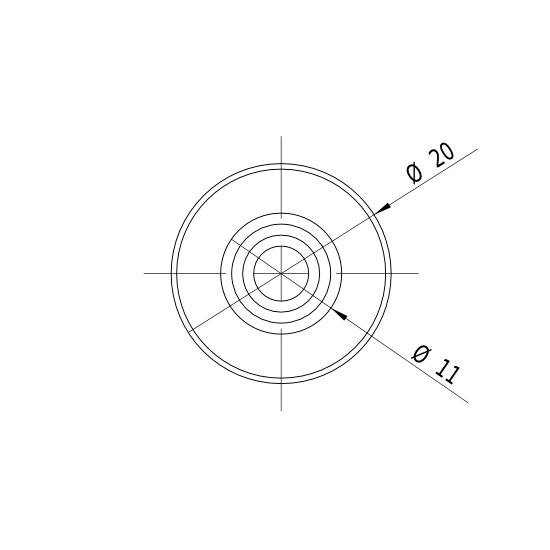

Technical Drawing: Circular object with two distinguished diameters, 20 mm and 11 mm, linearly annotated.

A technical diagram shows a cylindrical sensor with a corrugated surface structure and a protruding cable.

Technical drawing of a cylindrical product with dimensions: diameter 20, length 80. Includes cable-like connections on the right.

1/4

Product type

Laser module

Emission characteristics

Line

Wavelength

532 nm

Power

10 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 455.00 / piece)

€ 455.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 2
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: MLD 532-10-5 (20x80)

Emission characteristics: Line

Focus properties: 3000 mm fixed-focus

Factory colour: Green

Wavelength: 532 nm

: 10 mW

Laser category: 2

Angular aperture: 90°

Beam divergence: 0.5 mrad

Clearance: 3 m

Operating voltage: 5 V DC

Operating current: 150 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +30 °C

Min. temperature: -15 °C
