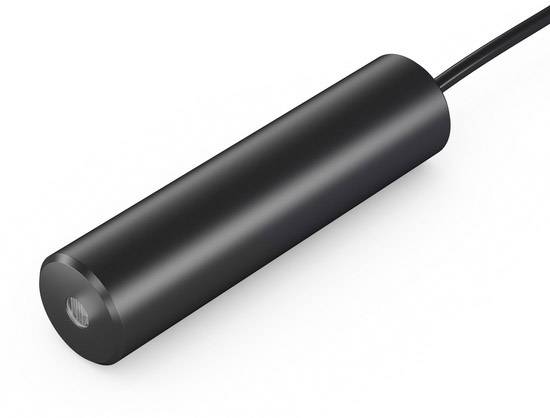

Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80)-PL-C1500-NT
Product type
Laser module
Emission characteristics
Line
Wavelength
532 nm
Power
15 mW
Laser category
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 515.00 / piece)
€ 515.00
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Laser module line
- Green
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Plug-in power supply 1500 mm
- Product type
Laser module
- Type
LD 532-15-24 (20 x 80)-PL-C1500-NT
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Green
- Wavelength
532 nm
15 mW
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
5 m
- Operating voltage
24 V DC
- Operating current
40 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+30 °C
- Min. temperature
-15 °C
Documents & Downloads
Datasheet
Datasheet 1695990 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80)-PL-C1500-NT
User & Safety Instructions
User & Safety Instructions 1695990 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80)-PL-C1500-NT
Information
Information 1695990 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80)-PL-C1500-NT
Conformity certificate
Conformity certificate 1695990 Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80)-PL-C1500-NT
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
