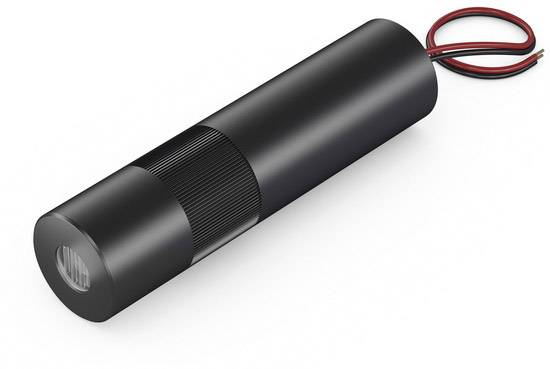

Black cylindrical metal body with grooves and two protruding red and black cables. Possibly an electronic component.

Black cylindrical metal body with grooves and two protruding red and black cables. Possibly an electronic component.

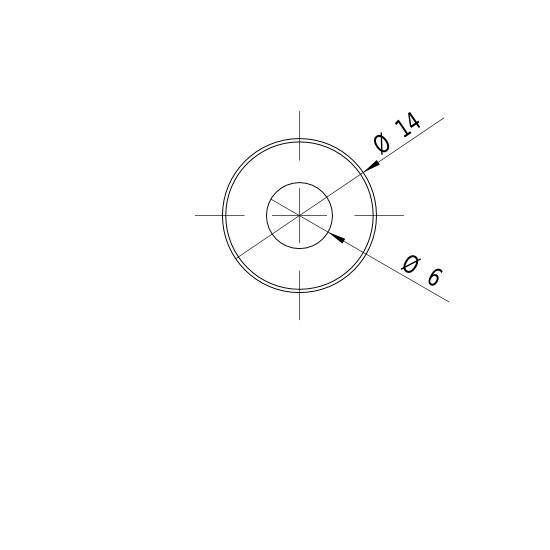

Technical drawing of a circle with two diameter specifications: Ø 14 and Ø 6.

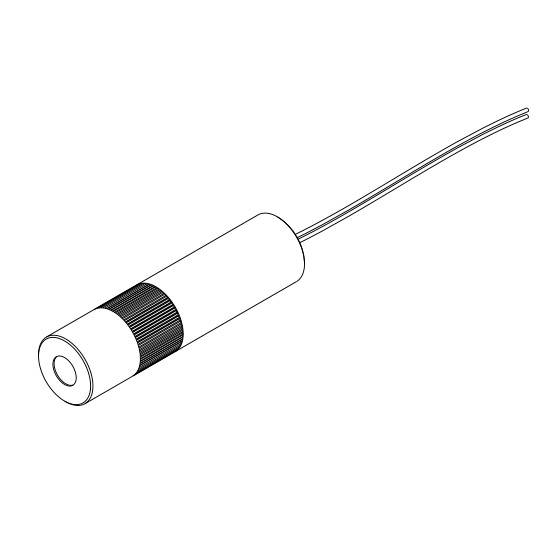

Drawing of a cylindrical metal object with a ribbed central section and cable connection, possibly a sensor or microphone.

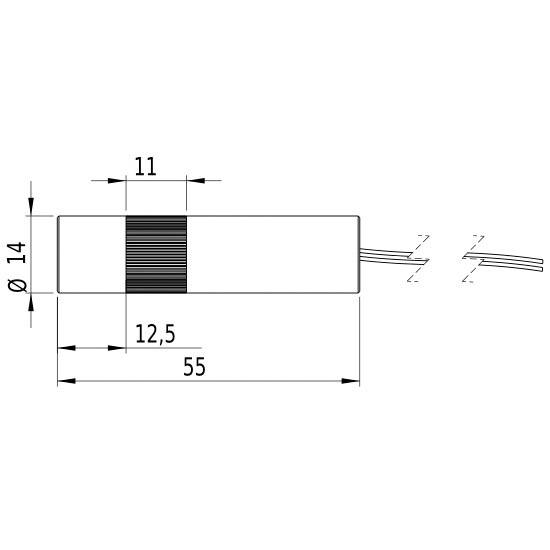

Technical Drawing of a Cylindrical Sensor with Dimensions: Length 55 mm, Diameter 14 mm, Cable Connection on the Right Side.

1/4

Picotronic

Datasheet (PDF)

English

Dispatches on Fri, 23 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 441.18 / piece)

€ 441.18

plus VAT.

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 2M
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Type: LC 520-16-3-F (14x55) 30-qcw

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Green

Wavelength: 520 nm

: 16 mW

Laser category: 2M

Angular aperture: 30°

Beam divergence: 0.4 mrad

Clearance: 8 m

Operating voltage: 3 V DC

Operating current: 40 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +60 °C

Min. temperature: -10 °C

Product type: Laser module

Documents & Downloads

Datasheet

English

Datasheet 1695841 Picotronic Laser module Line Green 16 mW LC 520-16-3-F (14x55) 30-qcw

User & Safety Instructions

European union

User & Safety Instructions 1695841 Picotronic Laser module Line Green 16 mW LC 520-16-3-F (14x55) 30-qcw

Information

European union

Information 1695841 Picotronic Laser module Line Green 16 mW LC 520-16-3-F (14x55) 30-qcw

Conformity certificate

Conformity certificate 1695841 Picotronic Laser module Line Green 16 mW LC 520-16-3-F (14x55) 30-qcw

Description

Hints

Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
