Name: Picotronic Laser module Line Green 20 mW LC 520-20-5-F (16 x 65) - QCW
Brand: Picotronic
SKU: 1695847
Availability: InStock

Black cylindrical device with a ribbed surface and protruding cables, likely a type of technical equipment or component.

Technical drawing of a circle with two diameters, Ø 16 and Ø 5, extending from the centre outwards.

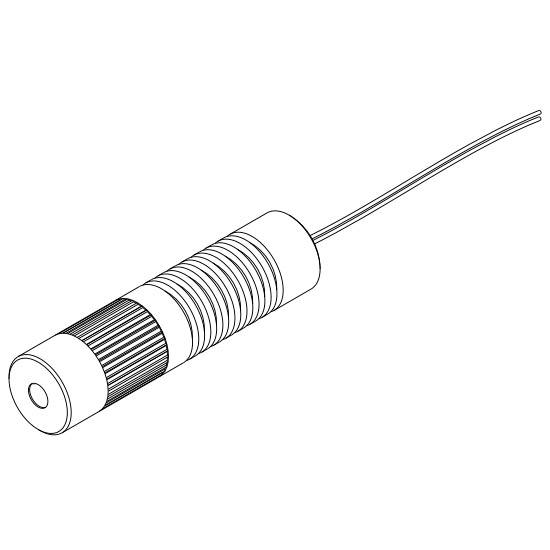

Drawing of an electrical plug with cable. The plug features ribbed and smooth areas that emphasise its functionality.

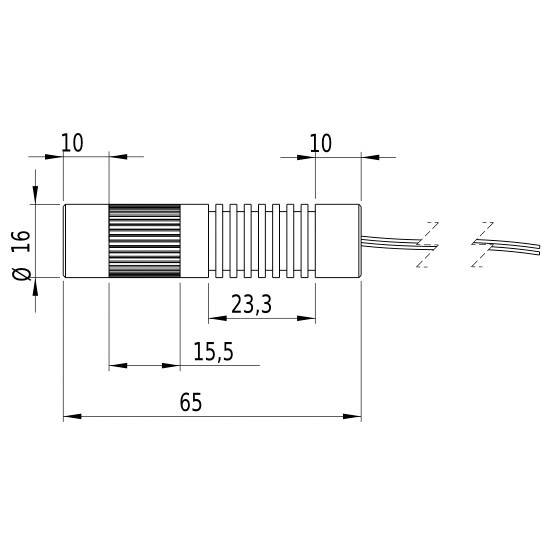

Technical drawing of a cylindrical part with length and diameter measurements in millimetres: Length 65 mm, diameter 16 mm.

1/4

Product type

Laser module

Emission characteristics

Line

Wavelength

520 nm

Power

20 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 645.00 / piece)

€ 645.00

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 2M
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: LC 520-20-5-F (16 x 65) - QCW

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Green

Wavelength: 520 nm

: 20 mW

Laser category: 2M

Angular aperture: 90°

Beam divergence: 0.4 mrad

Clearance: 7 m

Operating voltage: 5 V DC

Operating current: 150 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +60 °C

Min. temperature: -10 °C
