1/5

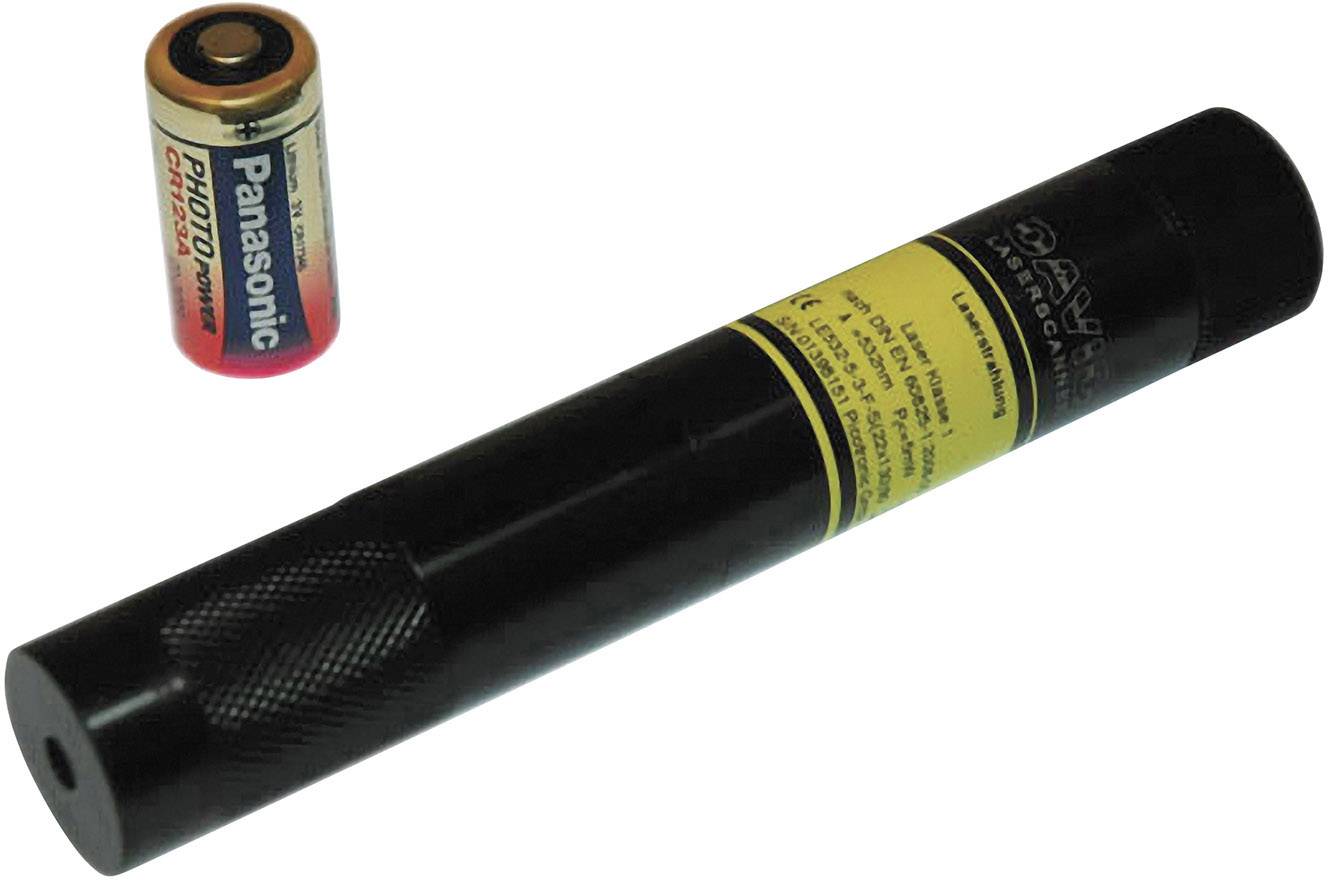

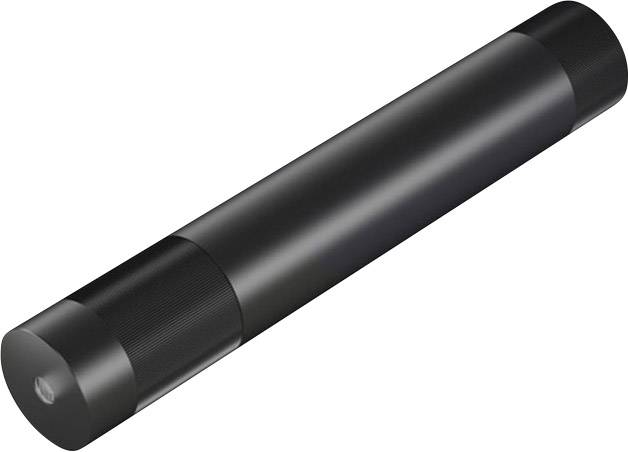

Picotronic Laser module Line Green 5 mW LE 532-5-3-F-S (22 x 130) 90
Product type
Laser module
Emission characteristics
Line
Wavelength
532 nm
Power
5 mW
(Ø)
22 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 465.00 / piece)
€ 465.00
incl. VAT
Only 8 Piece(s) available
Highlights & Details
Line laser, green
- Green
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Product type
Laser module
- Type
LE 532-5-3-F-S (22 x 130) 90
- Emission characteristics
Line
- Focus properties
Selectable focus
- Factory colour
Green
- Wavelength
532 nm
5 mW
- (Ø)
22 mm
- Length
130 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.6 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
150 mA
- Material
Aluminium

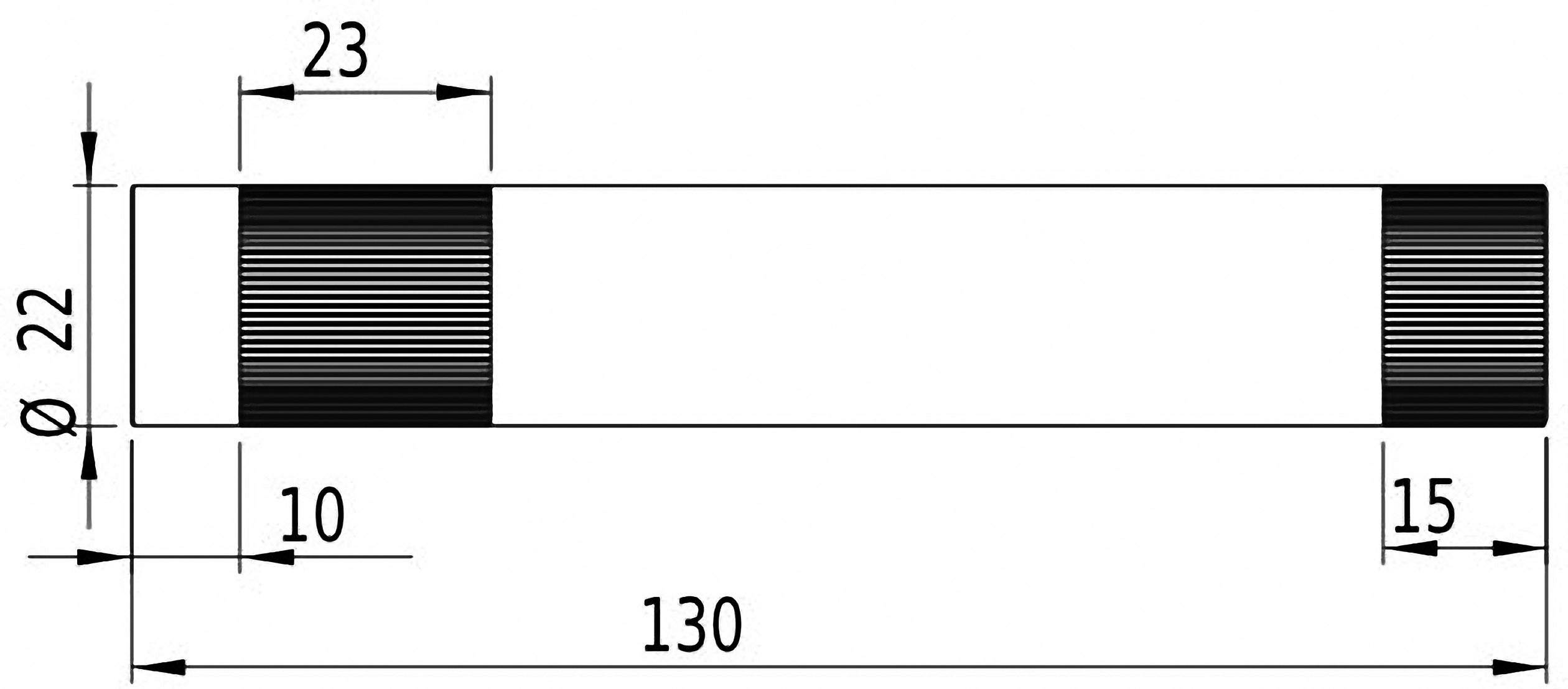

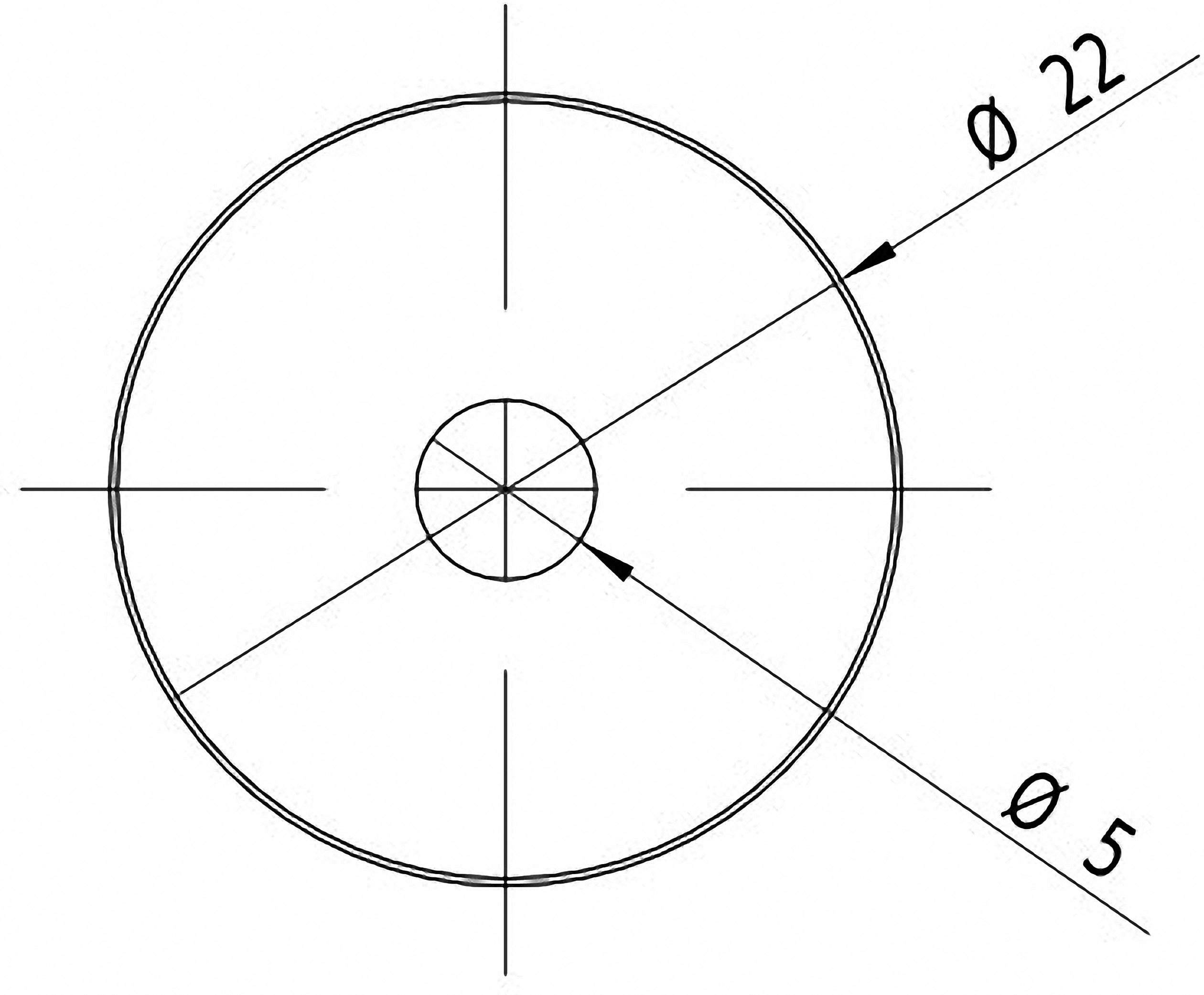

- Dim
(Ø x L) 22 mm x 130 mm
- Weight
87 g
- RoHS-compliant
Yes
- Max. temperature
30 °C
- Min. temperature
15 °C
Documents & Downloads
Datasheet
Datasheet 1283436 Picotronic Laser module Line Green 5 mW LE 532-5-3-F-S (22 x 130) 90
User & Safety Instructions
User & Safety Instructions 1283436 Picotronic Laser module Line Green 5 mW LE 532-5-3-F-S (22 x 130) 90
Information
Information 1283436 Picotronic Laser module Line Green 5 mW LE 532-5-3-F-S (22 x 130) 90
Conformity certificate
Conformity certificate 1283436 Picotronic Laser module Line Green 5 mW LE 532-5-3-F-S (22 x 130) 90
Description
Scope of delivery
- Including batteries
- This text is machine translated.
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
