Name: Picotronic Laser module Line Green 5 mW LFL 532-5-3 (12x60)-F1300
Brand: Picotronic
SKU: 1695934
Availability: InStock

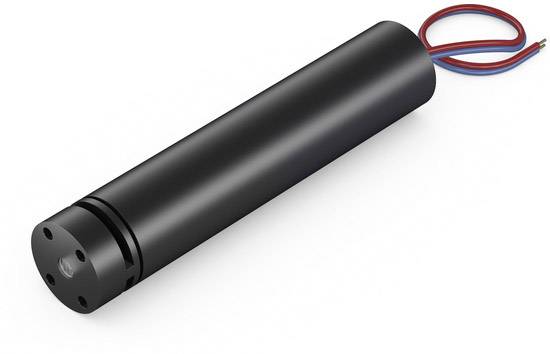

A cylindrical, black electric motor with two protruding wires at one end, likely for connection to a power source.

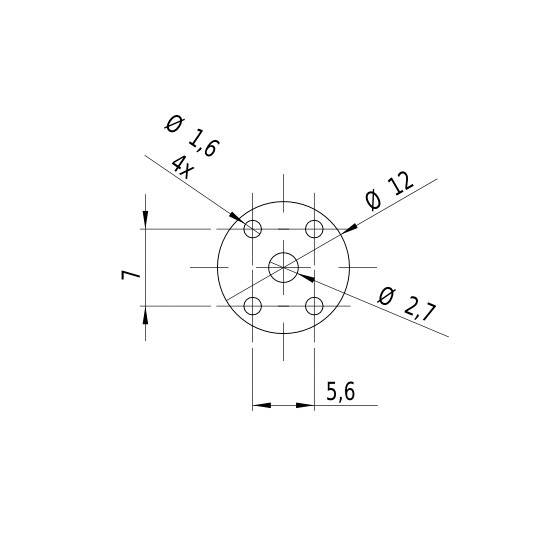

Technical drawing of a disc-shaped component with five central circular holes, dimensioned for diameter, spacing, and number of holes.

A cylindrical sensor with a cable, presumably a waterproof pressure sensor, with a cylindrical housing and holes at one end.

1/3

Product type

Laser module

Emission characteristics

Line

Wavelength

532 nm

Power

5 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 194.99 / piece)

€ 194.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Green
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 100 mm

Product type: Laser module

Type: LFL 532-5-3 (12x60)-F1300

Emission characteristics: Line

Focus properties: 1300 mm fixed-focus

Factory colour: Green

Wavelength: 532 nm

: 5 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.5 mrad

Clearance: 1.3 m

Operating voltage: 3 V DC

Operating current: 160 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +30 °C

Min. temperature: -15 °C
