Name: Picotronic Laser module Line Red 1 mW LB 635-1-3 (16x45)
Brand: Picotronic
SKU: 1283387
Availability: InStock

A cylindrical electrolytic capacitor with a black casing and two protruding wires, red and black, on a white background.

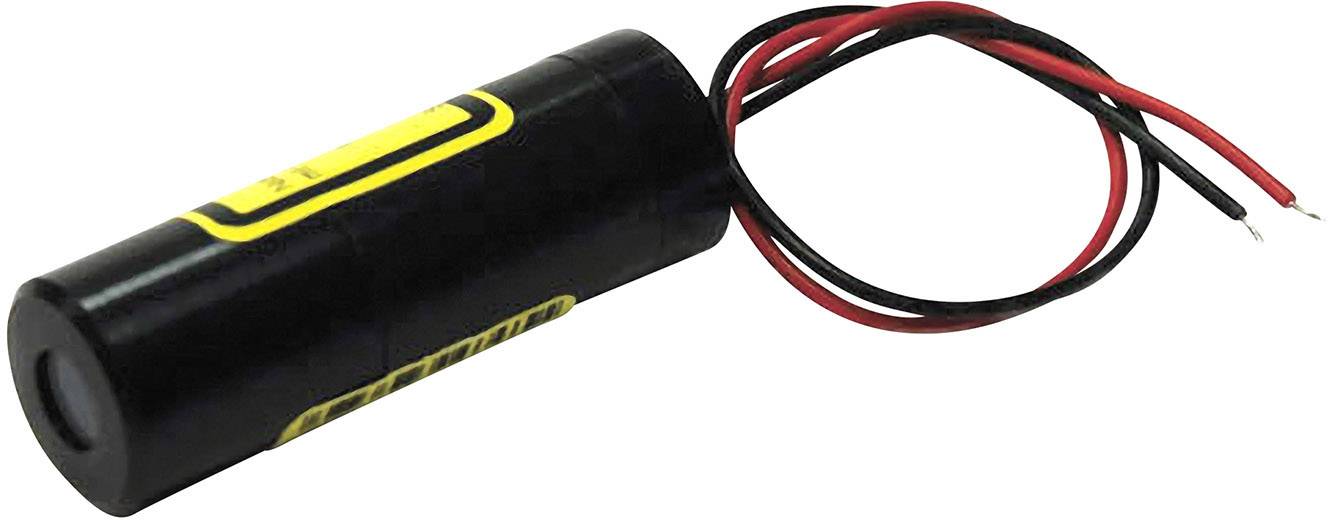

Cylindrical battery with a yellow label and black and red connection cables, suitable for electronic devices.

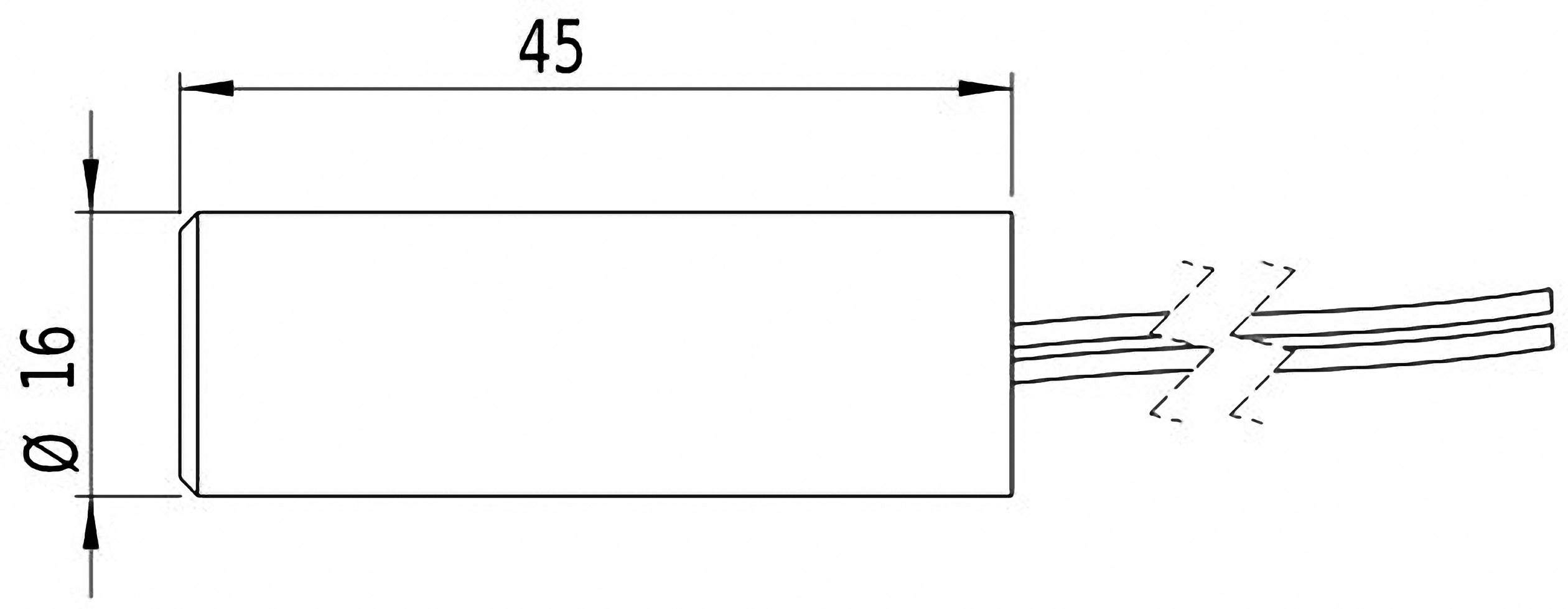

Technical drawing of a cylindrical part with a diameter of 16 mm and a length of 45 mm, with cable connections.

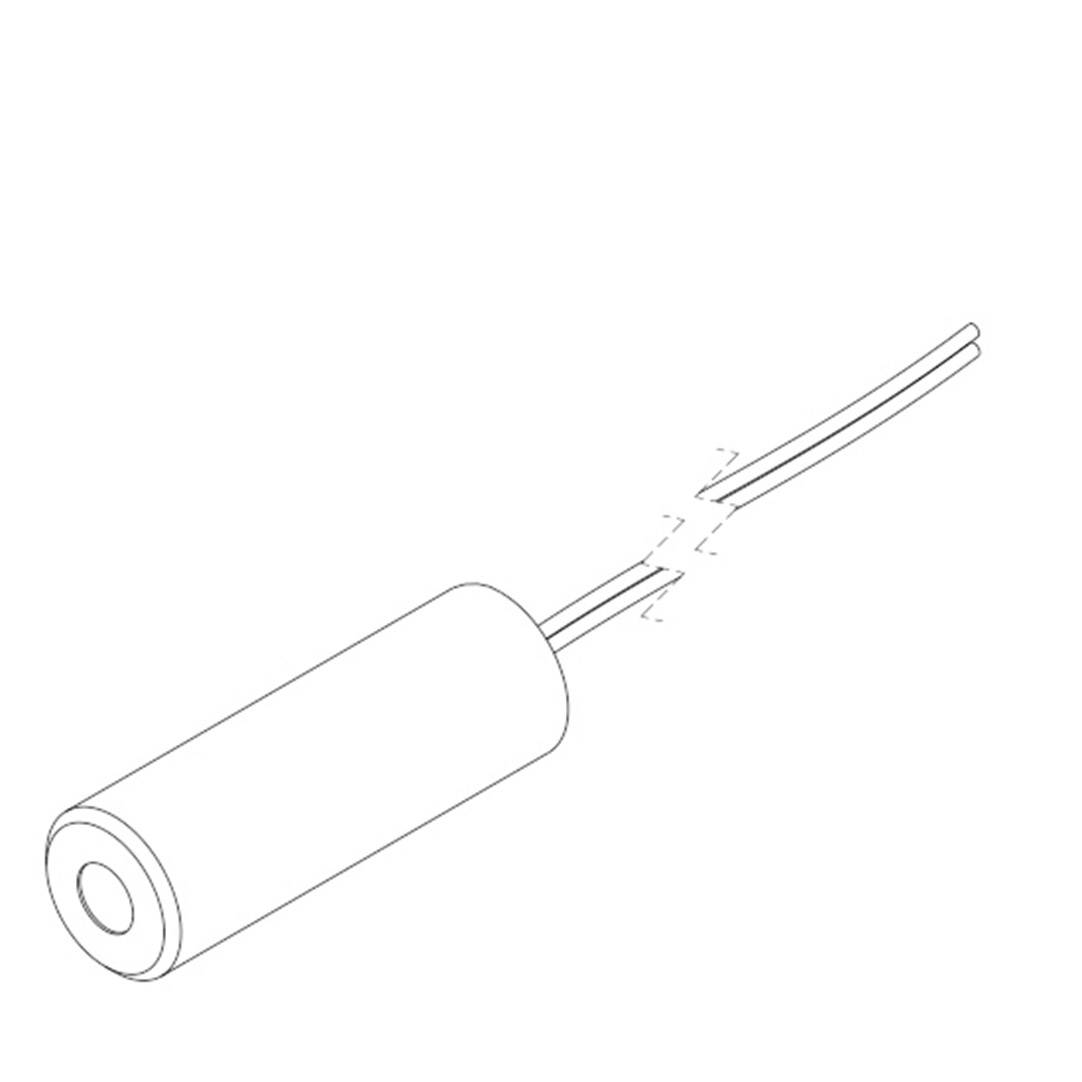

A sketch of a cylindrical object with two protruding cables. Possibly an electronic component such as a capacitor.

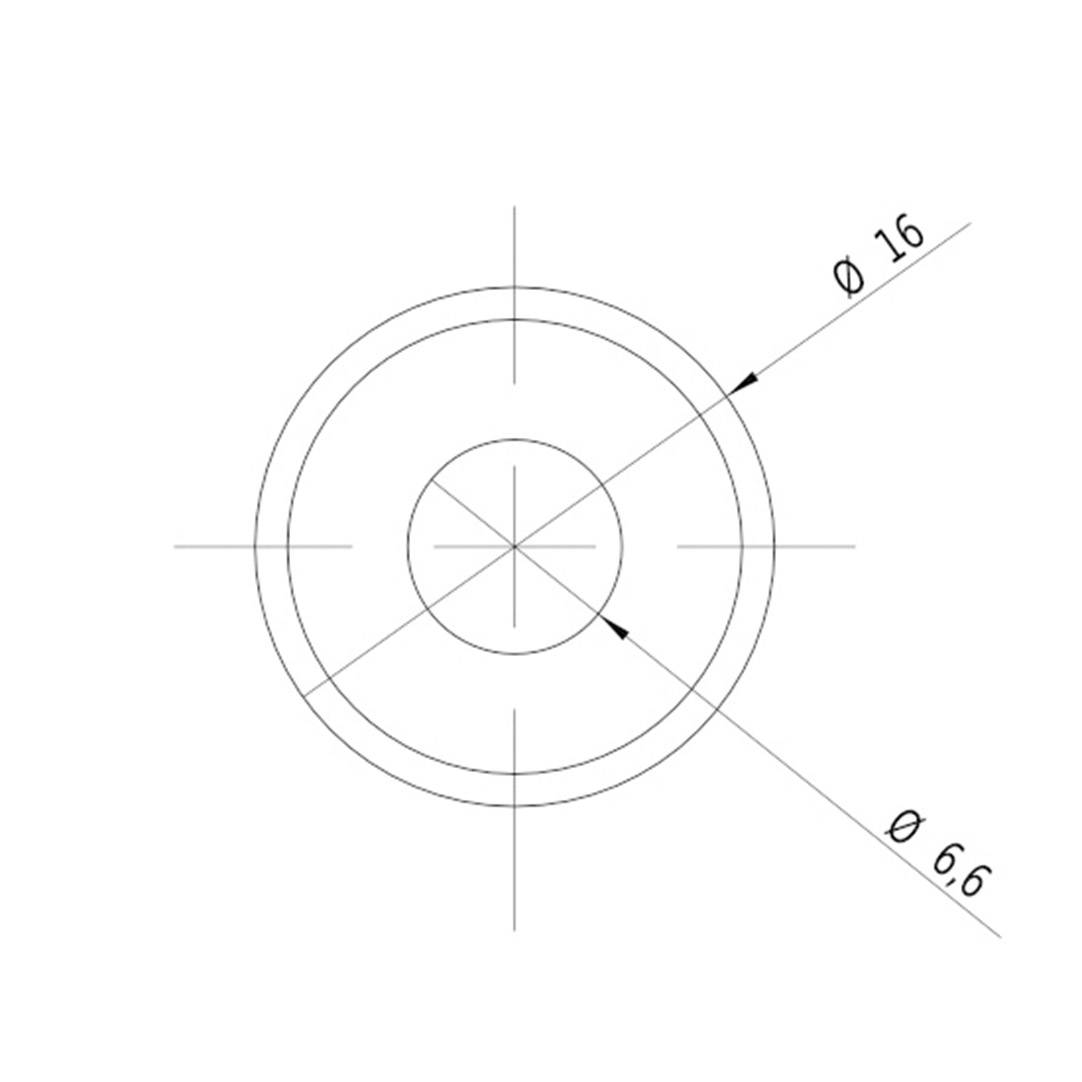

Technical drawing with two concentric circles. Outer circle has a diameter of 16 mm, inner circle 6.6 mm, with centre lines.

1/5

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

1 mW

(Ø)

16 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Line width:< 1 mm (1 m)

Product type: Laser module

Type: LB 635-1-3 (16x45)

Emission characteristics: Line

Focus properties: 1000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 16 mm

Length: 45 mm

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.3 mrad

Clearance: 1 m

Operating voltage: 3 V DC

Operating current: 27 mA

Material: Aluminium

Dim: (Ø x L) 16 mm x 45 mm

Weight: 23.5 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Power

Clearance

Length

(Ø)

Wavelength

Factory colour

Laser category

Picotronic Laser module Line Red 1 mW LB 635-1-3 (16x45)

Item no:1283387

Dispatches on Mon 9 Nov

9 Piece(s)Conrad Electronic

This article

1 mW

1 m

45 mm

16 mm

635 nm

Red

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)

Item no:1283409

Dispatches on Mon 9 Nov

7 Piece(s)Conrad Electronic

10 mW

5 m

60 mm

14 mm

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 855.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-3-F-S (22 x 100)

Item no:1283434

Dispatches on Mon 9 Nov

5 Piece(s)Conrad Electronic

5 mW

3 m

100 mm

22 mm

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-5-F (14x60)

Item no:1283431

Dispatches on Mon 9 Nov

8 Piece(s)Conrad Electronic

5 mW

3 m

60 mm

14 mm

405 nm

Blue

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-C500

Item no:1283319

Dispatches on Mon 9 Nov

27 Piece(s)Conrad Electronic

10 mW

1.5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500

Item no:1283355

Dispatches on Mon 9 Nov

18 Piece(s)Conrad Electronic

10 mW

5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-3 (20x80)

Item no:1283386

Dispatches on Mon 9 Nov

15 Piece(s)Conrad Electronic

10 mW

5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80) 45-PL-C 3000

Item no:1283392

Dispatches on Mon 9 Nov

5 Piece(s)Conrad Electronic

15 mW

5 m

80 mm

20 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 3 mW LD 532-3-3 (14x60)

Item no:1283339

Dispatches on Mon 9 Nov

9 Piece(s)Conrad Electronic

3 mW

3 m

60 mm

14 mm

532 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Picotronic Laser module Line Green 5 mW LC 520-5-5-F (16 x 65) - QCW

Item no:1283368

Dispatches on Mon 9 Nov

6 Piece(s)Conrad Electronic

5 mW

5 m

65 mm

16 mm

520 nm

Green

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Documents & Downloads

Datasheet

Datasheet 1283387 Picotronic Laser module Line Red 1 mW LB 635-1-3 (16x45)

User & Safety Instructions

User & Safety Instructions 1283387 Picotronic Laser module Line Red 1 mW LB 635-1-3 (16x45)

Information

Information 1283387 Picotronic Laser module Line Red 1 mW LB 635-1-3 (16x45)

Conformity certificate

Conformity certificate 1283387 Picotronic Laser module Line Red 1 mW LB 635-1-3 (16x45)

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
