Name: Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C 1000
Brand: Picotronic
SKU: 1695868
Availability: InStock

Black cylindrical sensor with cable; can be used for detection or measurement in technical applications.

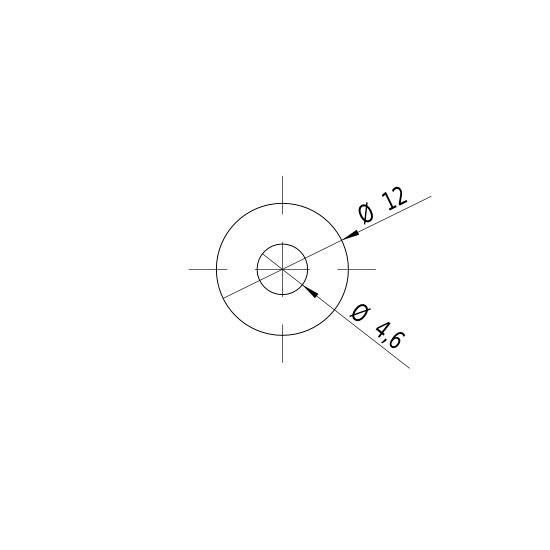

Technical Drawing: Two concentric circles with diameters of 12 mm and 4.6 mm, illustrated with dimension lines.

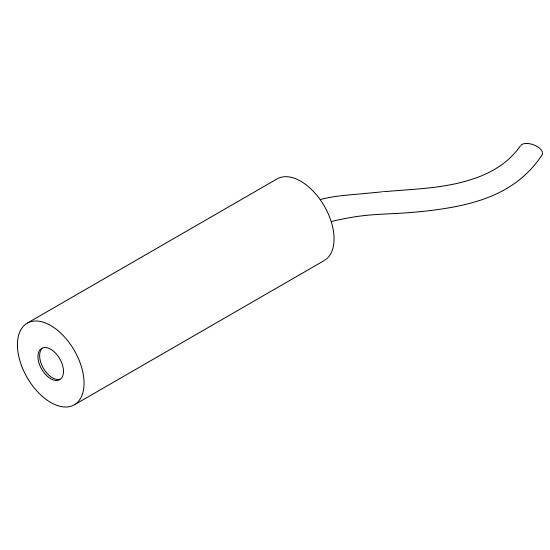

A simple drawing of a cylindrical electrical sensor with a cable on a white background.

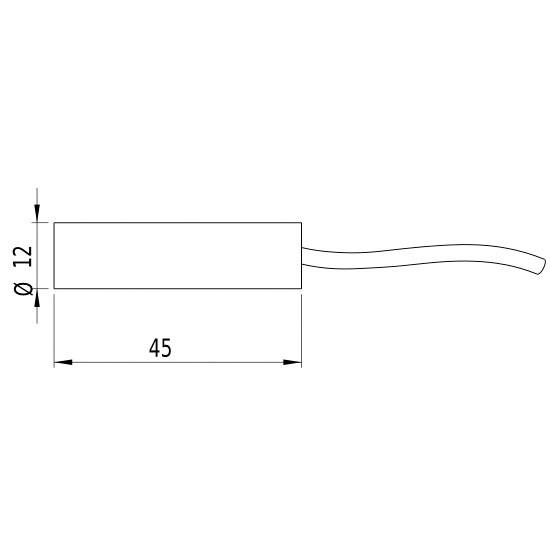

Side view of a cylindrical object with a diameter of 12 mm and a length of 45 mm. A cable protrudes on the right.

1/4

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

1 mW

Laser category

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Laser module line

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Connection cable 1000 mm

Product type: Laser module

Type: LD 635-1-24 (12x45)-C 1000

Emission characteristics: Line

Focus properties: 1000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.5 mrad

Clearance: 1 m

Operating voltage: 24 V DC

Operating current: 6 mA

Material: Aluminium

RoHS-compliant: Yes

Max. temperature: +50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Power

Clearance

Wavelength

Factory colour

Laser category

Type

Picotronic Laser module Line Blue 1 mW LE 405-1-3 (14x45) 90 DEG F 150

Item no:1695952

Dispatches on Tue 10 Nov

5 Piece(s)Conrad Electronic

1 mW

0.15 m

405 nm

Blue

LE 405-1-3 (14x45) 90 DEG F 150

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 285.00^*

Picotronic Laser module Line Blue 16 mW LC 405-16-3-F (14x55) 30

Item no:1695871

Dispatches on Fri 18 Dec

Conrad Electronic

16 mW

5 m

405 nm

Blue

LC 405-16-3-F (14x55) 30

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 485.00^*

Picotronic Laser module Line Blue 30 mW LC 450-30-24-F (14x60)

Item no:1695901

Dispatches on Tue 10 Nov

3 Piece(s)Conrad Electronic

30 mW

6 m

450 nm

Blue

LC 450-30-24-F (14x60)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0 1-5-F (16 x 65) - QCW

Item no:1695904

Dispatches on Fri 13 Nov

Conrad Electronic

0.1 mW

1 m

520 nm

Green

LC 520-0 1-5-F (16 x 65) - QCW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 609.00^*

Picotronic Laser module Line Green 0.1 mW LC 520-0. 1-24-F (16x65)-MV

Item no:1695978

Dispatches on Tue 10 Nov

5 Piece(s)Conrad Electronic

0.1 mW

1 m

520 nm

Green

LC 520-0. 1-24-F (16x65)-MV

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 655.00^*

Picotronic Laser module Line Green 1 mW LE 520-1-3 (14x45) 90 DEG F 150 - QCW

Item no:1696011

Dispatches on Tue 10 Nov

2 Piece(s)Conrad Electronic

1 mW

0.15 m

520 nm

Green

LE 520-1-3 (14x45) 90 DEG F 150 - QCW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 520-10-24 (16 x 80) C1000 QCW

Item no:1695989

Dispatches on Tue 10 Nov

6 Piece(s)Conrad Electronic

10 mW

5 m

520 nm

Green

LD 520-10-24 (16 x 80) C1000 QCW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-F800

Item no:1695981

Dispatches on Tue 10 Nov

8 Piece(s)Conrad Electronic

10 mW

0.8 m

532 nm

Green

LD 532-10-24 (20 x 80)-F800

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-G

Item no:1695863

Dispatches on Tue 10 Nov

24 Piece(s)Conrad Electronic

10 mW

3 m

532 nm

Green

LD 532-10-24 (20 x 80)-PL-C1500-G

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500-NT

Item no:1695975

Dispatches on Tue 10 Nov

21 Piece(s)Conrad Electronic

10 mW

5 m

532 nm

Green

LD 532-10-24 (20 x 80)-PL-C1500-NT

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 515.00^*

Documents & Downloads

Datasheet

Datasheet 1695868 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C 1000

User & Safety Instructions

User & Safety Instructions 1695868 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C 1000

Information

Information 1695868 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C 1000

Conformity certificate

Conformity certificate 1695868 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C 1000

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
