Name: Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C200
Brand: Picotronic
SKU: 1283371
Availability: InStock

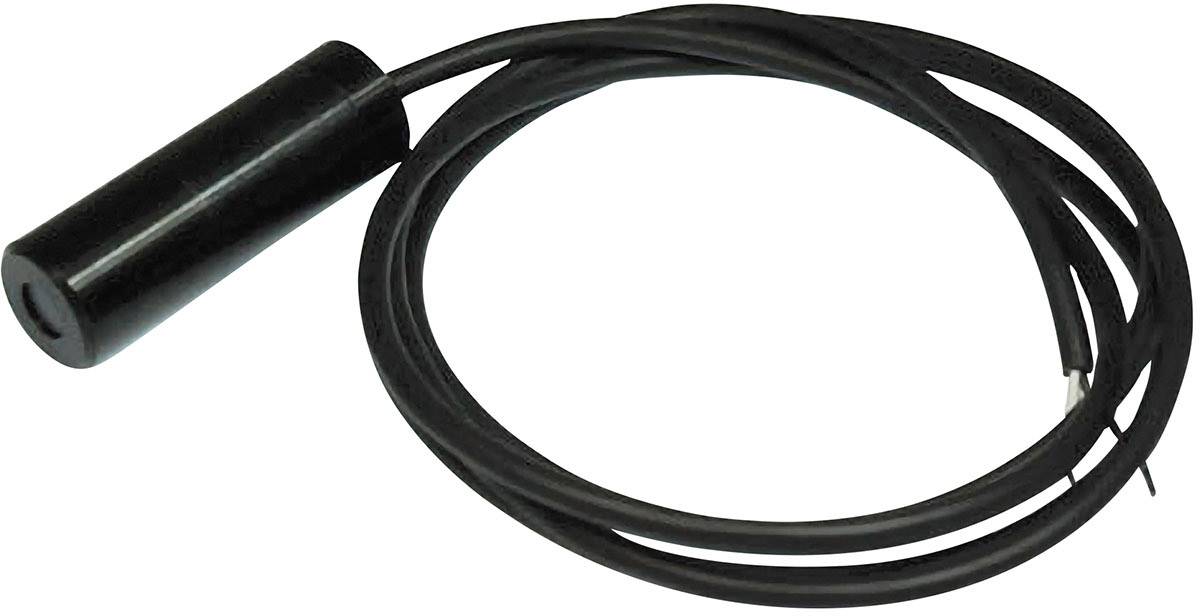

A black cylindrical sensor with a cable connection, typically used for technical or electronic applications.

Black cylindrical sensor with long cable.

1/2

Product type

Laser module

Emission characteristics

Line

Wavelength

635 nm

Power

1 mW

(Ø)

12 mm

Datasheet (PDF)

Dispatches on Mon 19 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 1
Emission characteristics: Line

Technical specifications

Line width:< 1 mm (1 m)

Product type: Laser module

Type: LD 635-1-24 (12x45)-C200

Emission characteristics: Line

Focus properties: 1000 mm fixed-focus

Factory colour: Red

Wavelength: 635 nm

: 1 mW

(Ø): 12 mm

Length: 45 mm

Laser category: 1

Angular aperture: 90°

Beam divergence: 0.5 mrad

Clearance: 1 m

Operating voltage: 24 V DC

Operating current: 5 mA

Material: Brass

Dim: (Ø x L) 12 mm x 45 mm

Weight: 17 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Length

Power

Factory colour

(Ø)

Laser category

Wavelength

Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C200

Item no:1283371

Dispatches on Mon 19 Oct

8 Piece(s)Conrad Electronic

This article

1 m

45 mm

1 mW

Red

12 mm

635 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)

Item no:1283409

Dispatches on Mon 19 Oct

7 Piece(s)Conrad Electronic

5 m

60 mm

10 mW

Blue

14 mm

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 855.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-3-F-S (22 x 100)

Item no:1283434

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

3 m

100 mm

5 mW

Blue

22 mm

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-5-F (14x60)

Item no:1283431

Dispatches on Mon 19 Oct

8 Piece(s)Conrad Electronic

3 m

60 mm

5 mW

Blue

14 mm

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-C500

Item no:1283319

Dispatches on Mon 19 Oct

29 Piece(s)Conrad Electronic

1.5 m

80 mm

10 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500

Item no:1283355

Dispatches on Mon 19 Oct

26 Piece(s)Conrad Electronic

5 m

80 mm

10 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-3 (20x80)

Item no:1283386

Dispatches on Mon 19 Oct

15 Piece(s)Conrad Electronic

5 m

80 mm

10 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80) 45-PL-C 3000

Item no:1283392

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

5 m

80 mm

15 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 3 mW LD 532-3-3 (14x60)

Item no:1283339

Dispatches on Mon 19 Oct

9 Piece(s)Conrad Electronic

3 m

60 mm

3 mW

Green

14 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Picotronic Laser module Line Green 5 mW LC 520-5-5-F (16 x 65) - QCW

Item no:1283368

Dispatches on Mon 19 Oct

6 Piece(s)Conrad Electronic

5 m

65 mm

5 mW

Green

16 mm

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Documents & Downloads

Datasheet

Datasheet 1283371 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C200

User & Safety Instructions

User & Safety Instructions 1283371 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C200

Information

Information 1283371 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C200

Conformity certificate

Conformity certificate 1283371 Picotronic Laser module Line Red 1 mW LD 635-1-24 (12x45)-C200

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
