Name: Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30
Brand: Picotronic
SKU: 1283396
Availability: BackOrder

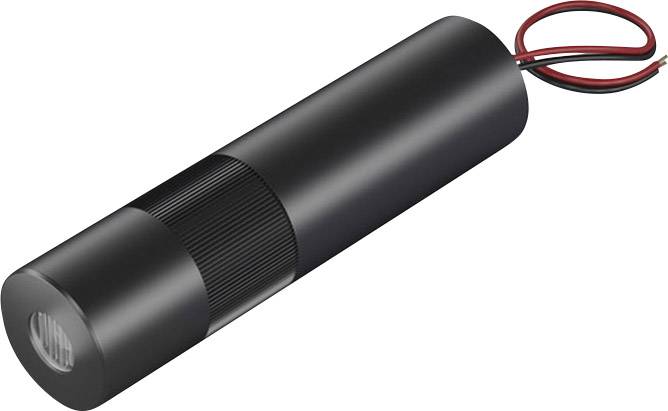

Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30-0

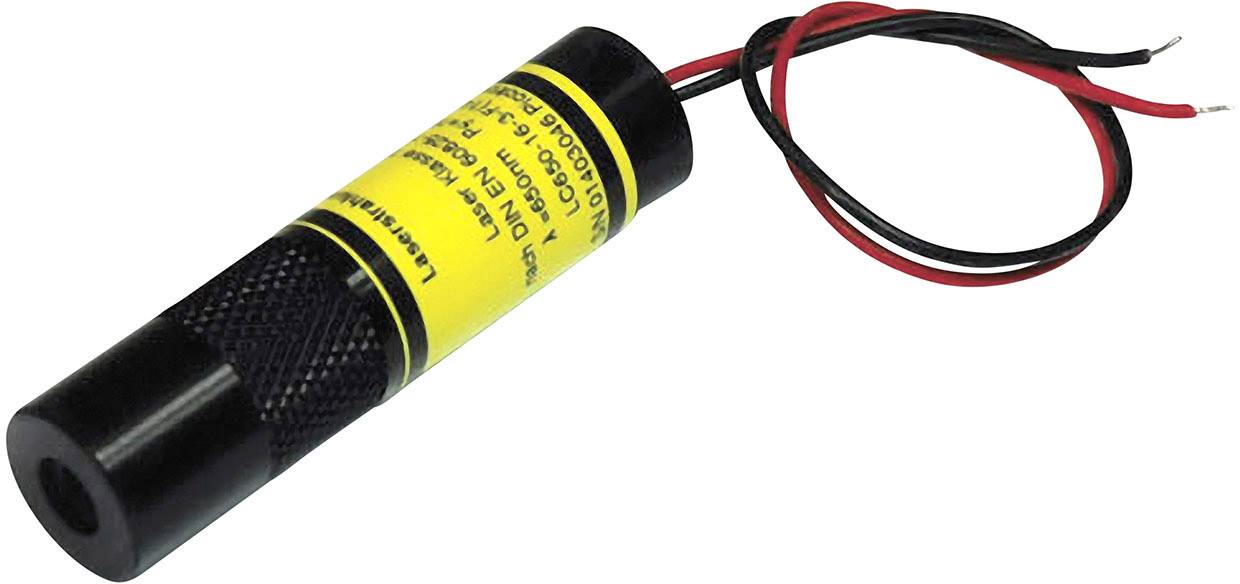

Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30-1

Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30-2

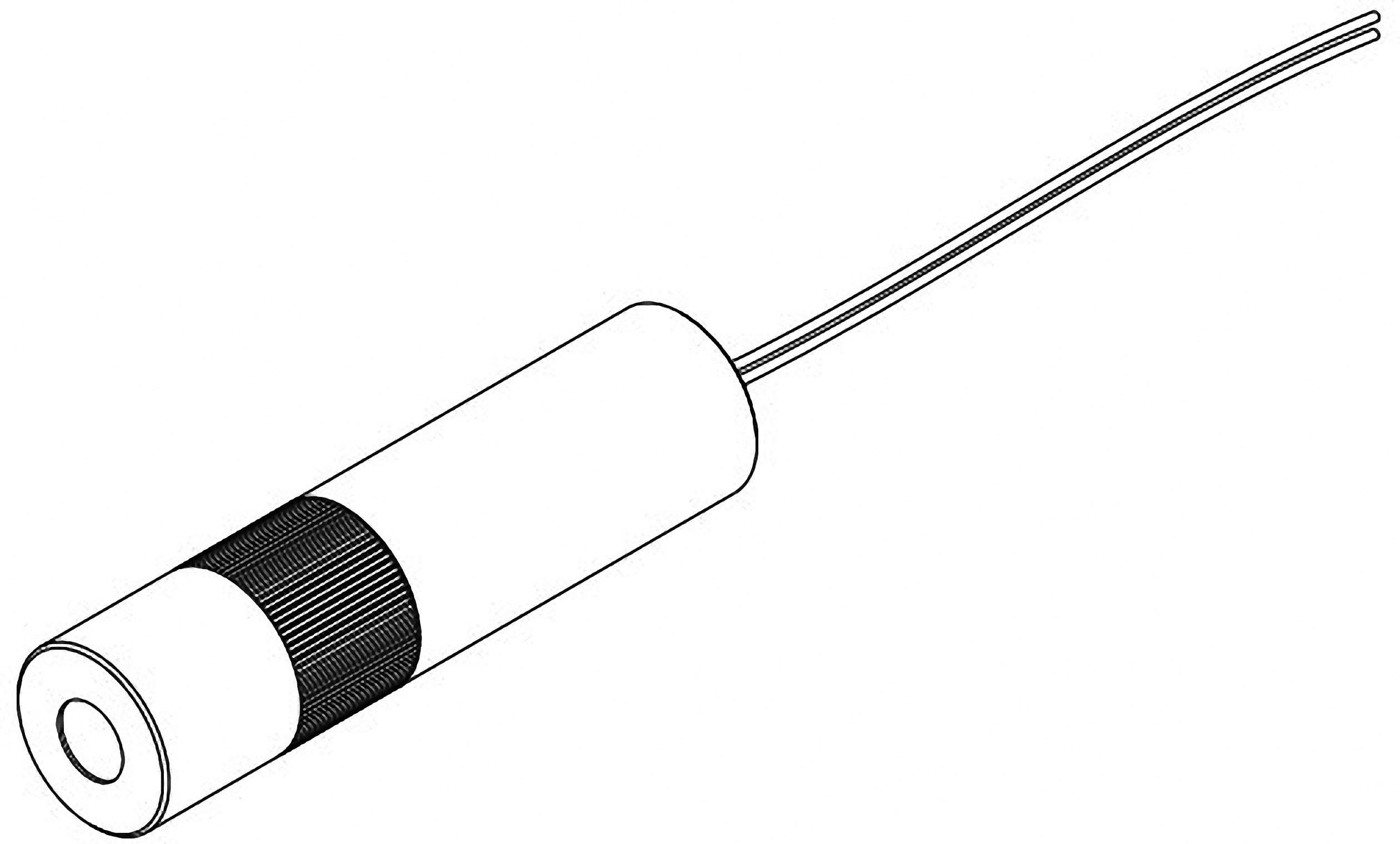

Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30-3

Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30-4

1/5

Product type

Laser module

Emission characteristics

Line

Wavelength

650 nm

Power

16 mW

(Ø)

14 mm

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Insulated line laser, red

Red
Laser category: 2M
Emission characteristics: Line

Technical specifications

Product type: Laser module

Type: LC 650-16-3-F (14x55) 30

Emission characteristics: Line

Focus properties: Selectable focus

Factory colour: Red

Wavelength: 650 nm

: 16 mW

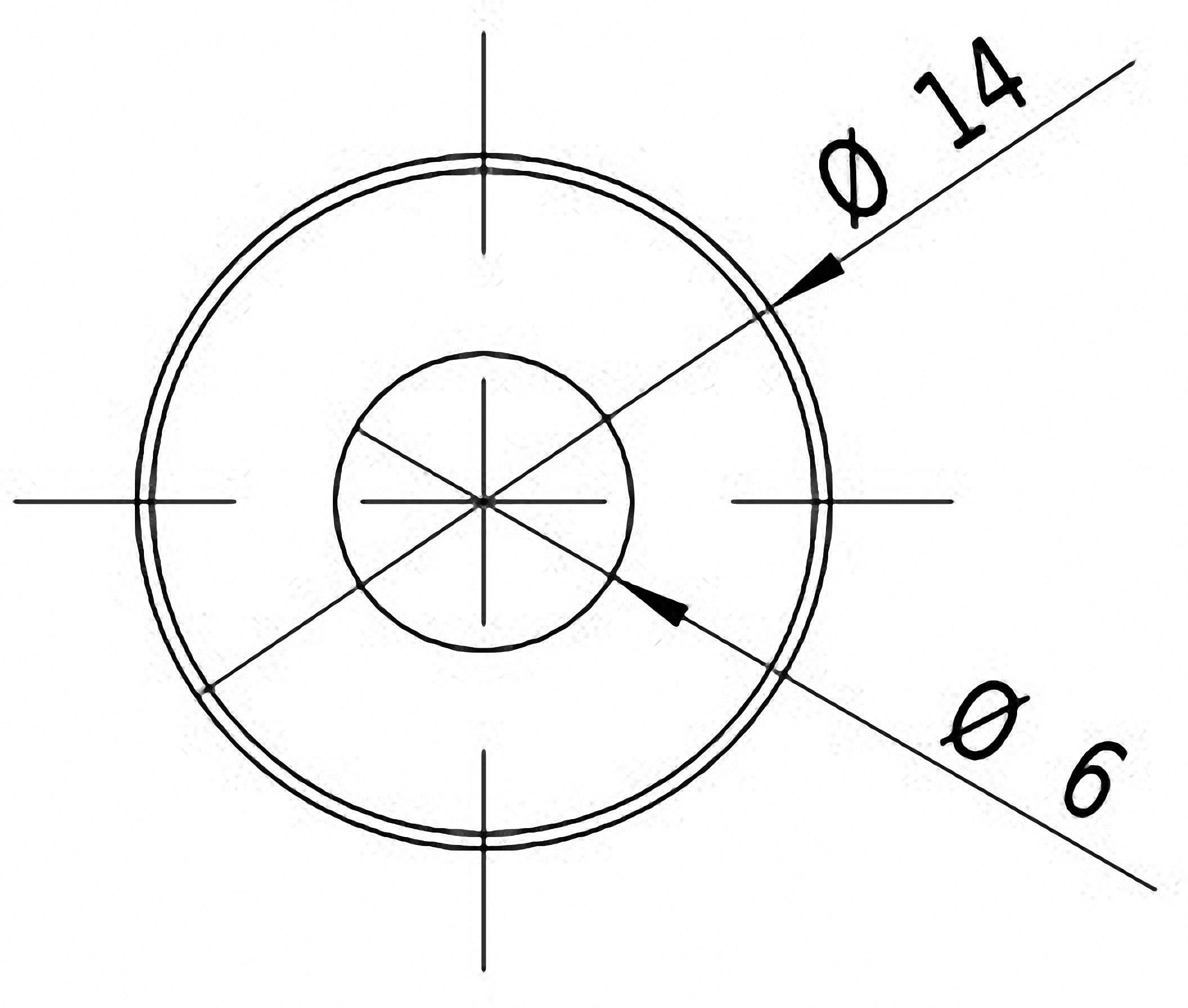

(Ø): 14 mm

Length: 55 mm

Laser category: 2M

Angular aperture: 30°

Beam divergence: 0.4 mrad

Clearance: 4 m

Operating voltage: 3 V DC

Operating current: 64 mA

Material: Aluminium

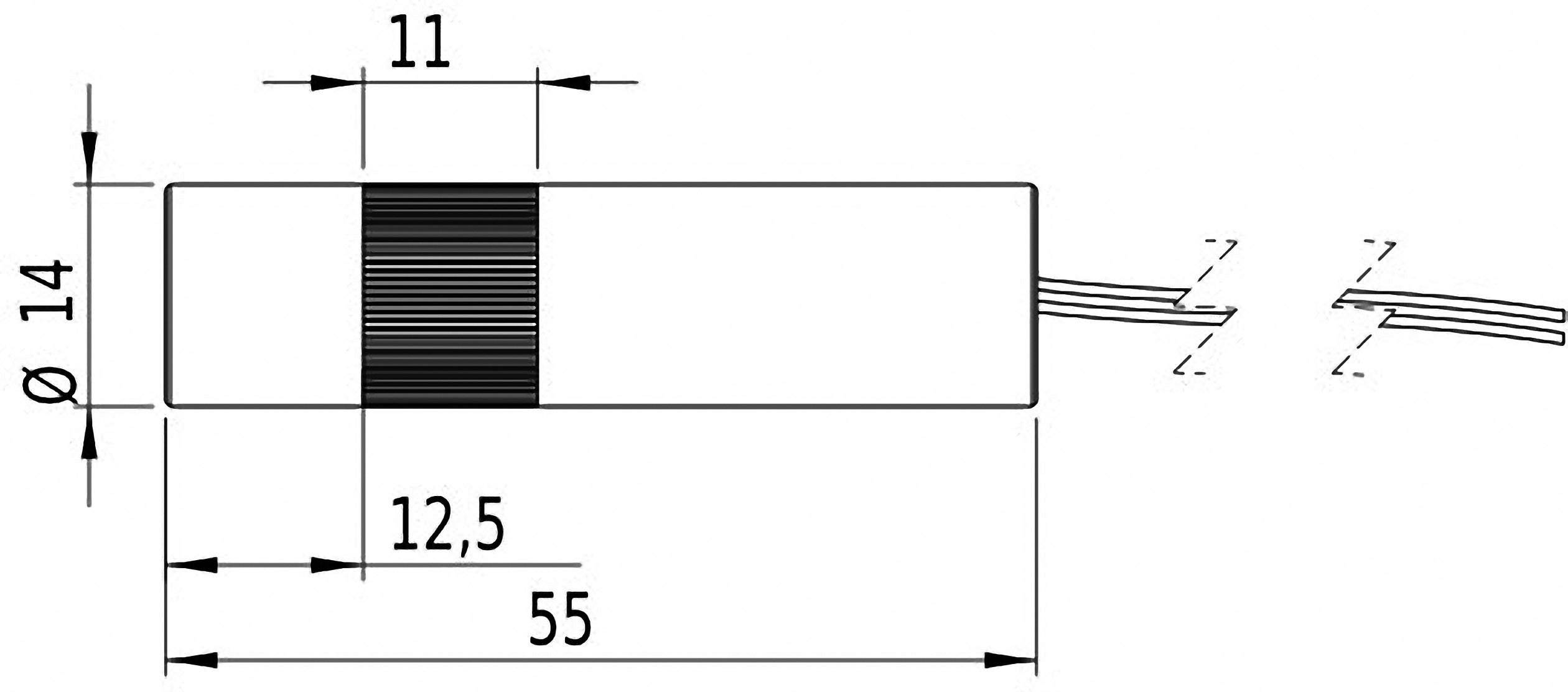

Dim: (Ø x L) 14 mm x 55 mm

Weight: 16.5 g

RoHS-compliant: Yes

Max. temperature: 50 °C

Min. temperature: -20 °C

Variants(All information include VAT, plus shipping costs)

Clearance

Length

Power

Factory colour

(Ø)

Laser category

Wavelength

Picotronic Laser module Line Blue 10 mW LE 405-10-5-F (14x60)

Item no:1283409

Dispatches on Mon 19 Oct

7 Piece(s)Conrad Electronic

5 m

60 mm

10 mW

Blue

14 mm

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 855.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-3-F-S (22 x 100)

Item no:1283434

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

3 m

100 mm

5 mW

Blue

22 mm

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 825.00^*

Picotronic Laser module Line Blue 5 mW LE 405-5-5-F (14x60)

Item no:1283431

Dispatches on Mon 19 Oct

8 Piece(s)Conrad Electronic

3 m

60 mm

5 mW

Blue

14 mm

405 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 635.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-C500

Item no:1283319

Dispatches on Mon 19 Oct

29 Piece(s)Conrad Electronic

1.5 m

80 mm

10 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 435.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-24 (20 x 80)-PL-C1500

Item no:1283355

Dispatches on Mon 19 Oct

26 Piece(s)Conrad Electronic

5 m

80 mm

10 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Picotronic Laser module Line Green 10 mW LD 532-10-3 (20x80)

Item no:1283386

Dispatches on Mon 19 Oct

15 Piece(s)Conrad Electronic

5 m

80 mm

10 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Picotronic Laser module Line Green 15 mW LD 532-15-24 (20 x 80) 45-PL-C 3000

Item no:1283392

Dispatches on Mon 19 Oct

5 Piece(s)Conrad Electronic

5 m

80 mm

15 mW

Green

20 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 3 mW LD 532-3-3 (14x60)

Item no:1283339

Dispatches on Mon 19 Oct

9 Piece(s)Conrad Electronic

3 m

60 mm

3 mW

Green

14 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

Picotronic Laser module Line Green 5 mW LC 520-5-5-F (16 x 65) - QCW

Item no:1283368

Dispatches on Mon 19 Oct

6 Piece(s)Conrad Electronic

5 m

65 mm

5 mW

Green

16 mm

520 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Picotronic Laser module Line Green 5 mW LC 532-5-3-F (16x65)

Item no:1283343

Dispatches on Mon 19 Oct

18 Piece(s)Conrad Electronic

3 m

65 mm

5 mW

Green

16 mm

532 nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Documents & Downloads

Datasheet

Datasheet 1283396 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30

User & Safety Instructions

User & Safety Instructions 1283396 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30

Information

Information 1283396 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30

Conformity certificate

Conformity certificate 1283396 Picotronic Laser module Line Red 16 mW LC 650-16-3-F (14x55) 30

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).

Description

Hints

Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
